Appendix 1: ESBEND 90°

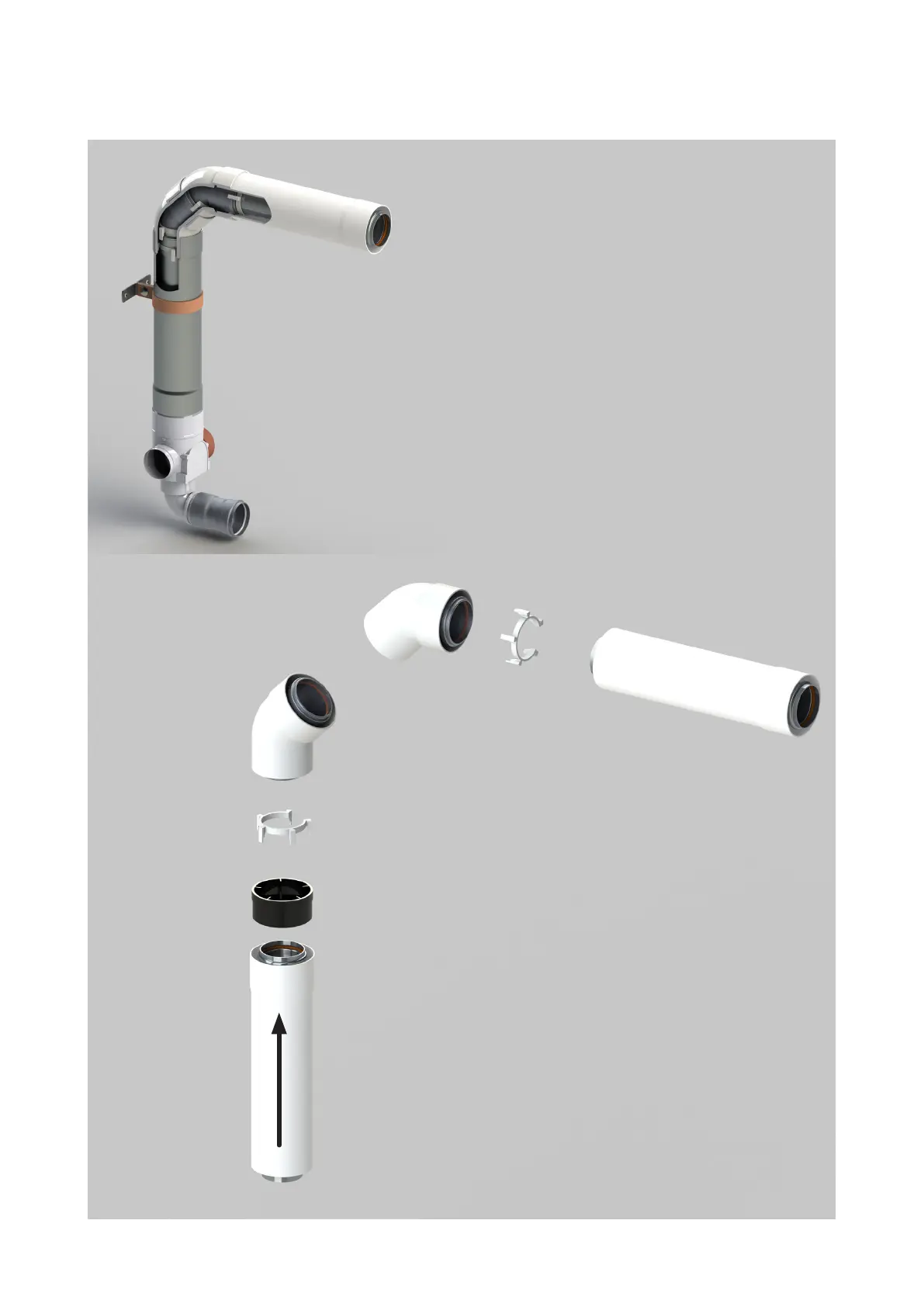

If installed incorrectly there is potential for the outer bend to
overheat. The spacers are mandatory and required for correct
alignment of the ue components when bends are used. When
tted correctly the inner and outer pipes of the ESBEND will be
self centering.
The black spacer comes with the ESPIPE900.
Rated to 200 °C
Outer plastic rated to 80 °C
Rated to 200 °C
Outer plastic rated to 60 °C
