Rinnai Australia
- 13 -
Solar Split Systems Operat
ing / Installation Manual - Version 8 - 18/10/1
0
SUNMASTER - ELECTRIC
- VITREOUS ENAMEL

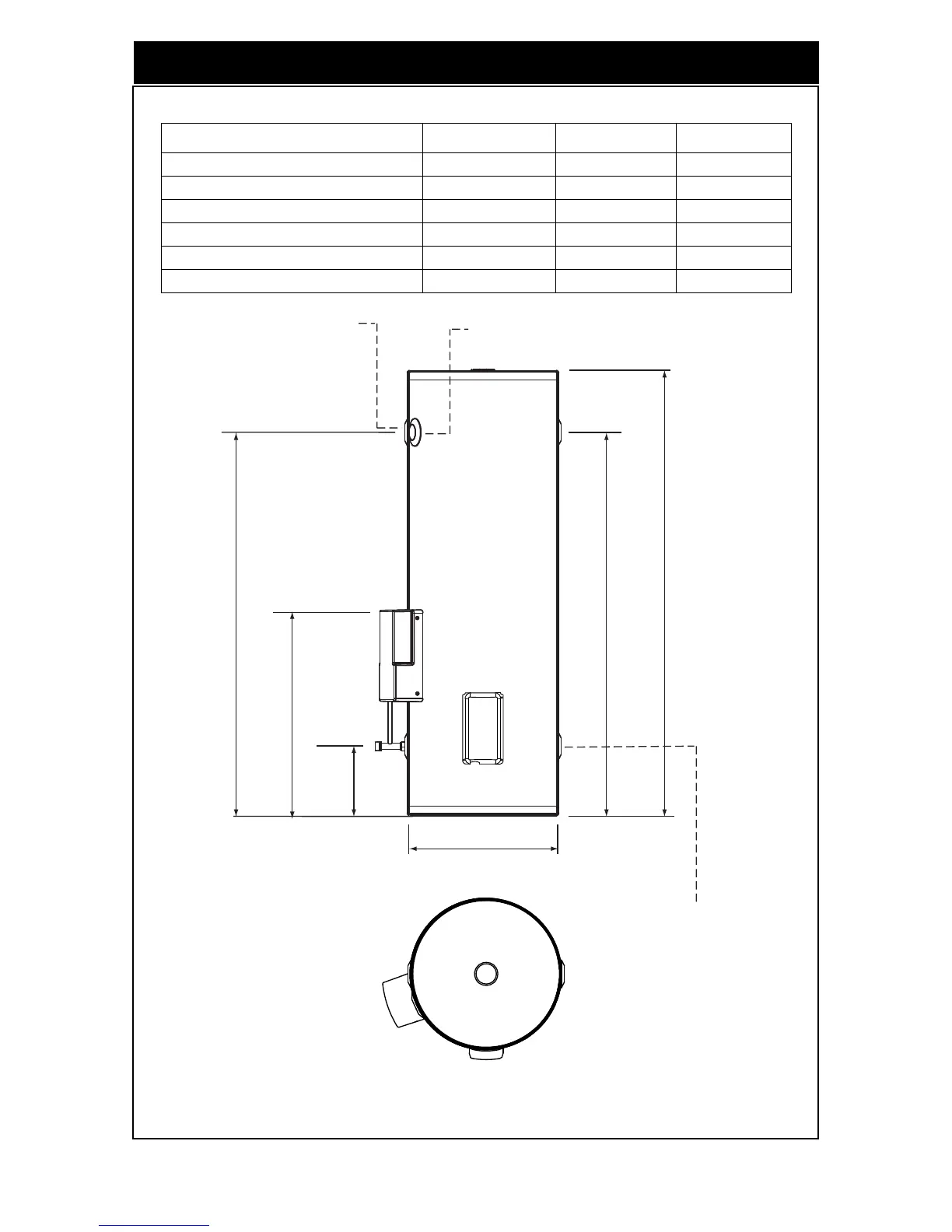

Figure 6 -
Dimensio
nal Drawing - Rinnai Sunmaster Vitreous Ename
l Storage Cylinder
- Electric Boosted Split Systems
SE160
SE200
SE315
PTR / Solar Return / Hot Wate
r Outlet
1310
1605
1200
Flow line to Collectors
665
665
700
Cold Water Inlet
225
225
260
Cylinder Height
1530
1825
1510
Diameter
515
515
685
Weight Empty (kg)
71
83
100
PTR / SOLAR RETURN
COLD
W
A
TER
INLET
CYLINDER DIAMETER
HOT W
A
TER OUTLET
CYLINDER HEIGHT
P&TR V
ALVE
SOLAR
RETURN
FLOW LINE T
O COLLECTORS
TEMPERA
TURE
SENSOR
DR
Y WELL
SPECIFICATIONS FOR STORAGE CYLINDERS
14
16
Table of Contents
Default Chapter
3
Table of Contents
3
Important Information & Warnings
4
Safety & Regulatory Information
4
Scalds Hazards
5
Operation Principle
6
Safety Devices
7
Excessive Discharge from Safety Devices
7
Water Temperature
8
Turning 'Off' the Water Heating System
8
Turning 'On' the Water Heating System
8
Water Quality
9
Draining and Filling the Water Heating System
9
Maintenance and Regular Care
9
Servicing and Repair
9
Save a Service Call
10
Specifications for Systems
12
General
12
System Specifications and Dimensions
12
Flow Control Valve
12
Differential Temperature Controller
12
Specifications for Solar Collectors
13
Specifications for Storage Cylinders
14
Specifications for Gas Boosters
18
Installation & Maintenance - All Systems
19
Regulations and Occupational Health and Safety (Oh&S)
19
Location - General Information
19
Storage Cylinder Location
19
GAS BOOSTER LOCATION and MOUNTING (Where Applicable)
20
Water Pipes
20
Water Supply
20
Hot Water Delivery Temperature
20
Frost Protection Mode on Solar Controller
21
Valves & Fittings
22
Regulations and Occupational Health and Safety (Oh&S)
23
System Orientation and Inclination
23
Solar Collector Roof Mounting Options
24
Solar Collector Installation Components
25
Standard Installation
26
Framed Installations - Flat, Reverse & Side Pitch
29
Collector Fittings Installations
30
Installation of Solar Gas Boosted Systems
32
Overview of System Components
32
Gas Booster Location
32
Gas Supply
32
Hot Water Delivery Temperature
32
Clearances
46
Installation Procedure
46
Filling the System
47
Checking Solar Pump Operation
47
Adjusting Flow Control Valve
47
Pre Solar Heating Checks
48
Solar Heating
49
Finishing the Installation
50
Draining Instructions
50
Installation & Maintenance - Electric Boosted Systems
51
Overview of System Components
51
Electric Supply
51
Hot Water Storage and Delivery Temperatures
51
Installation Procedure
56
Filling the System
59
Checking Solar Pump Operation
59
Adjusting Flow Control Valve
59
Pre Solar Heating Checks
60
Solar Heating
60
Finishing the Installation
60
Draining Instructions
61
Contact Information
64
