Rinnai Australia - 23 - Solar Split Systems Operating / Installation Manual - Version 8 - 18/10/10

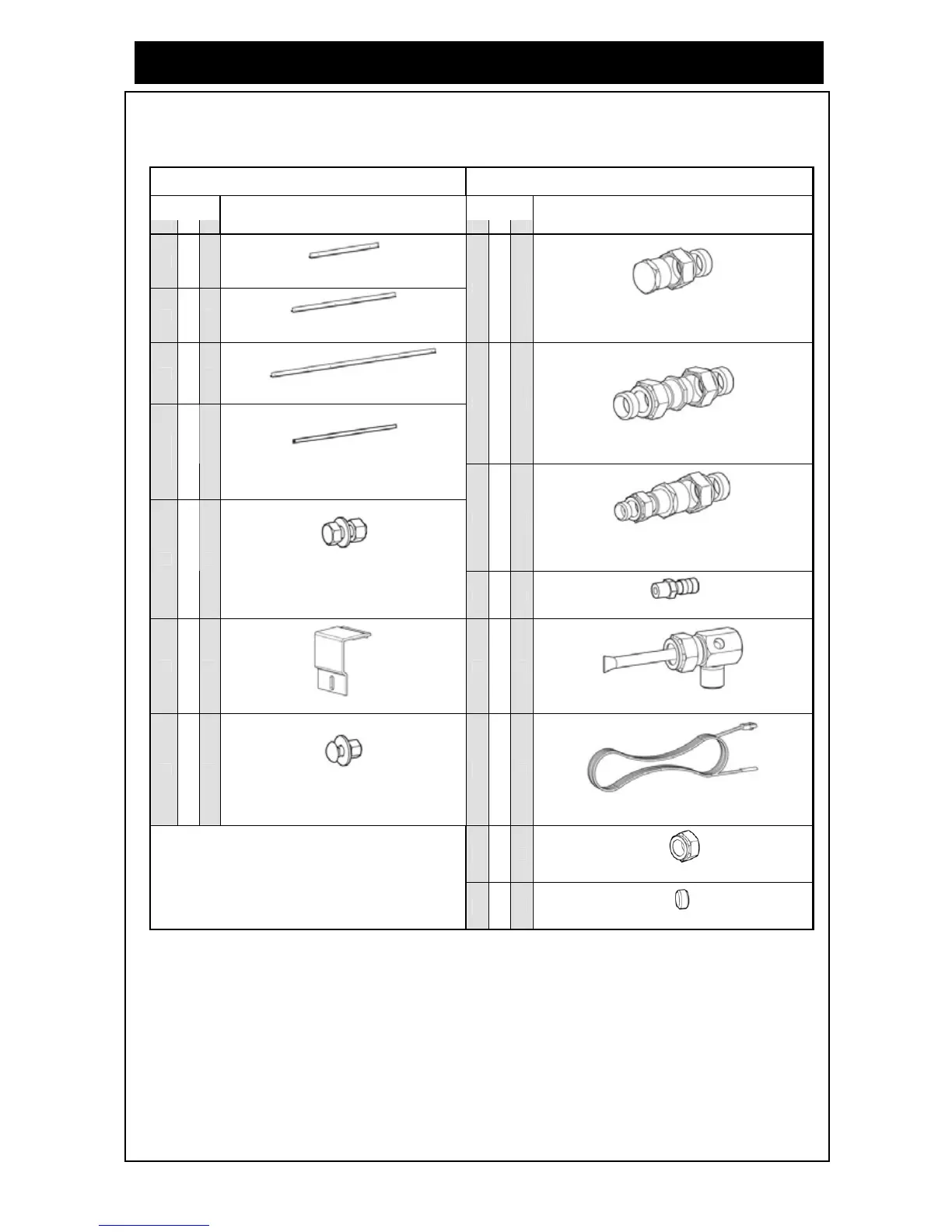

SOLAR COLLECTOR INSTALLATION COMPONENTS
Table 7 - Components for Installing Collectors
COLLECTOR MOUNTING COMPONENTS
(supplied in Collector Installation kit)
COLLECTOR CONNECTING COMPONENTS
(supplied in Collector Installation kit)
Number of
Collectors
Number of
Collectors
1 2 3 1 2 3
2 - -
Mounting Rail Small
14201196
- 2 -
Mounting Rail Medium
14201197
2 2 2
Stop End
(1 x plug ¾G (Kinco) + 1 x ¾ Kinco nut and olive)
(Not used with E-Frost Collector)
28801025
- - 2
Mounting Rail Large 14201198
- 2 4
Compression Union ¾ - ¾
(1 x Nipple G¾ (Kinco) + 2 x ¾ Kinco nut and olive)
(Half of these not used with E-Frost Collector)
32201709
2*
+2
#
4
*
6
*
Collector Mounting Strap
* supplied with collectors,
# supplied in collector installation kit
12401012
1 1 1
Compression Union ¾ - ½
(1 x Nipple G¾ (Kinco) + 1 x ¾ Kinco nut and olive
+ 1x ½ Kinco nut and olive )
32201711
4 4 4
M8 Bolt, Washer and Nut BOLT 22601052
(used to bolt collector mounting WASHER 17401072
strap to mounting rail) NUT 16801062
1 1 1
Air Bleed Valve 11007701
4 8 12
Collector Retainer 26601706
1 1 1
Hot Sensor Sheath 10204714
4 8 12
BOLT 22601073
M6 Bolt, Washer and Nut WASHER 17401073
(used with collector retainers) NUT 16801007
1 1 1
Hot Sensor Lead (20 m) 31002706
1 1 1
Kinco Nut ½ 16801012
INSTALLATION KITS PART NUMBERS
1 collector : R33202739
2 collectors : R33202740
3 collectors : R33202741
1 1 1
Kinco Olive ½ 33001012
INSTALLATION OF SOLAR COLLECTORS
