COLLECTOR FITTINGS INSTALLATIONS
Connect the fittings to the collectors as shown in the diagrams below:

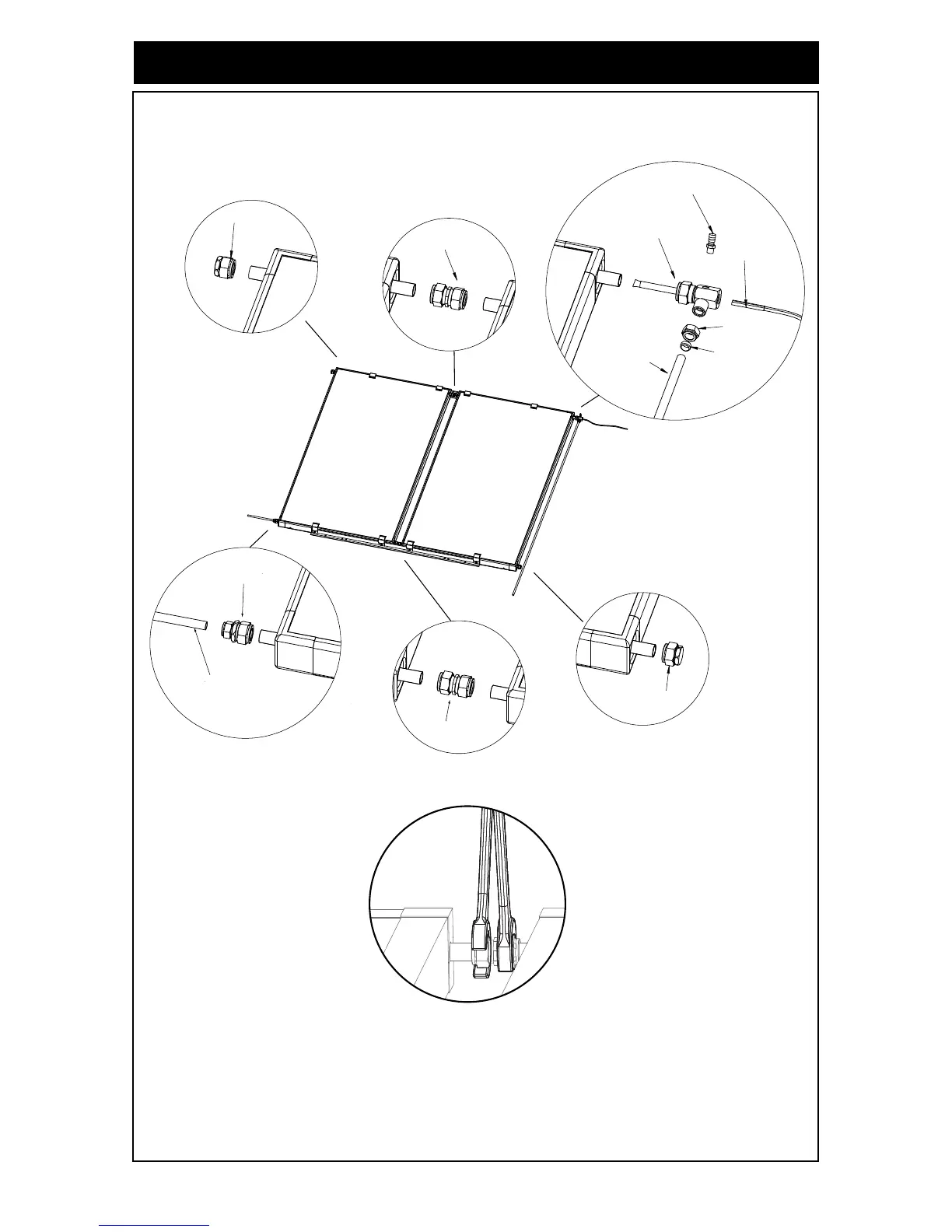

Figure 29 - Collector Fitting Details (Enduro, Equinox & Excelsior Collectors)
STOP END
COMPRESSION
UNION
1/2" TO 3/4"
UNION
COLD FLOW
PIPE SUPPLIED
BY INSTALLER
AIR BLEED
VALVE
HOT
SENSOR
LEAD
HOT SENSOR
SHEATH
1/2" NUT
1/2" OLIVE
RETURN PIPE
SUPPLIED BY
INSTALLER
COMPRESSION
UNION
STOP END
When connecting collectors to other
collectors or to other copper pipe
with compression unions, ensure
that the compression union is held
in two points as shown in the picture.
One side should be held still
while the other side is tightened.
Not doing this can cause damage
to the collector.
