Rinnai Australia - 12 - Solar Split Systems Operating / Installation Manual - Version 8 - 18/10/10
SUNMASTER GAS - VITREOUS ENAMEL

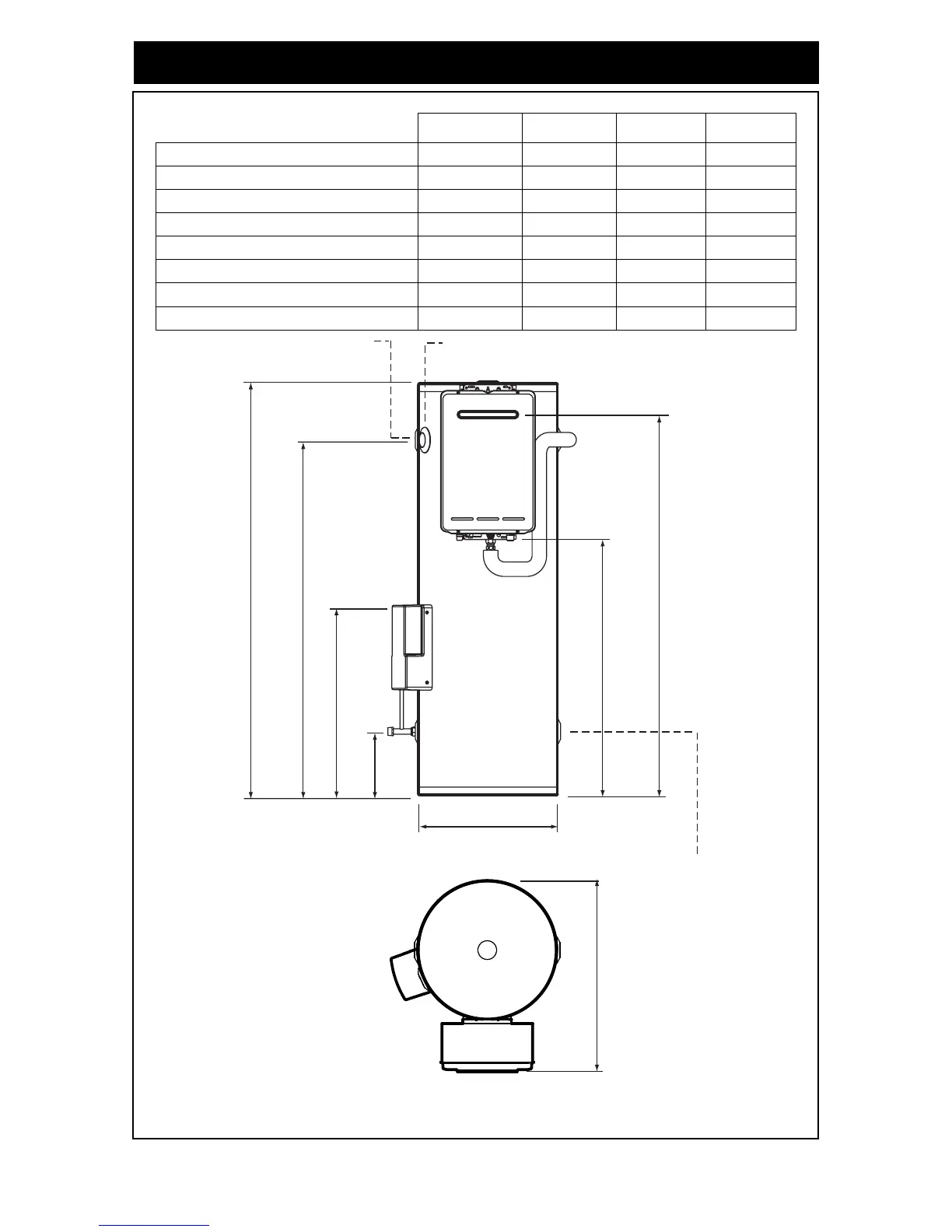

Figure 5 - Dimensional Drawing - Rinnai Sunmaster Vitreous Enamel Storage Cylinder -
Gas Boosted Split Systems
SG175 SG215 SG270 SG340
Cylinder Height 1530 1825 1265 1510
PTR / Solar Return 1310 1605 985 1200
Flow line to collectors 665 665 700 700
Cold Water Inlet 225 225 260 260
Gas Supply and Hot Water Outlet 940 1235 675 920
Gas Booster Flue Outlet 1400 1695 1135 1380
Diameter 515 515 685 685
Weight Empty (kg) 66 88 95 103
TEMPERATURE SENSOR
DRY WELL
P&TR / SOLAR RETURN
GAS SUPPLY AND
HOT WATER OUTLET
GAS BOOSTER FLUE OUTLET
COLD
WATER
INLET
CYLINDER HEIGHT
P&TR VALVE
SOLAR
RETURN
FLOW LINE TO COLLECTORS
SYSTEM DEPTH
CYLINDER DIAMETER
SPECIFICATIONS FOR STORAGE CYLINDERS
