Rinnai Australia - 31 - Solar Split Systems Operating / Installation Manual Version 8-18/10/10
f
f

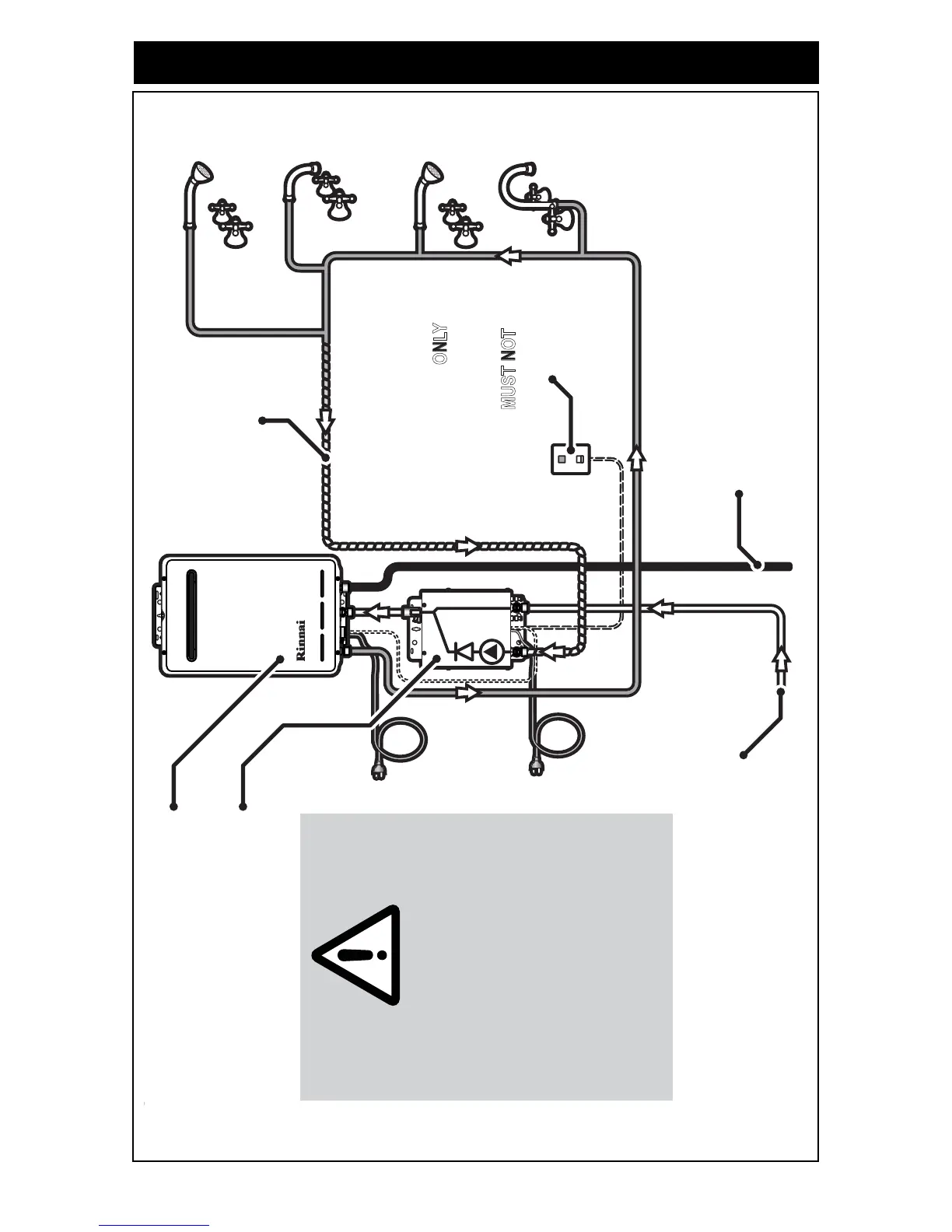

Figure 31 - Smartstart® Schematic
Rinnai Smartstart Unit
Rinnai Continuous Flow Water
Heater - Gas Booster
Manual Activation
Switch ONLY
(not supplied)
Water controllers
MUST NOT
be used!
Gas Supply
Return Line
Outlets to Personal Hygiene areas
to be tempered to 50°C as per
AS3500.4
Refer to Rinnai manuals supplied
with appliances for important
installation information.
Installations MUST conform to local
regulataions.
Supply from solar storage cylinder
IMPORTANT
To Next Page
