If the gas booster is not mounted on the storage cylinder, ensure that the wall or structure on which it is
to be mounted are capable of supporting the weight of the appliance and associated pipe work. Refer to
Table 4 for individual gas booster weights. For gas boosters installed on elevated structures or under
floors specific requirements apply, refer to AS 5601 for details.
Location of gas booster flue terminal must be in accordance with Figure 5.3 of AS 5601.

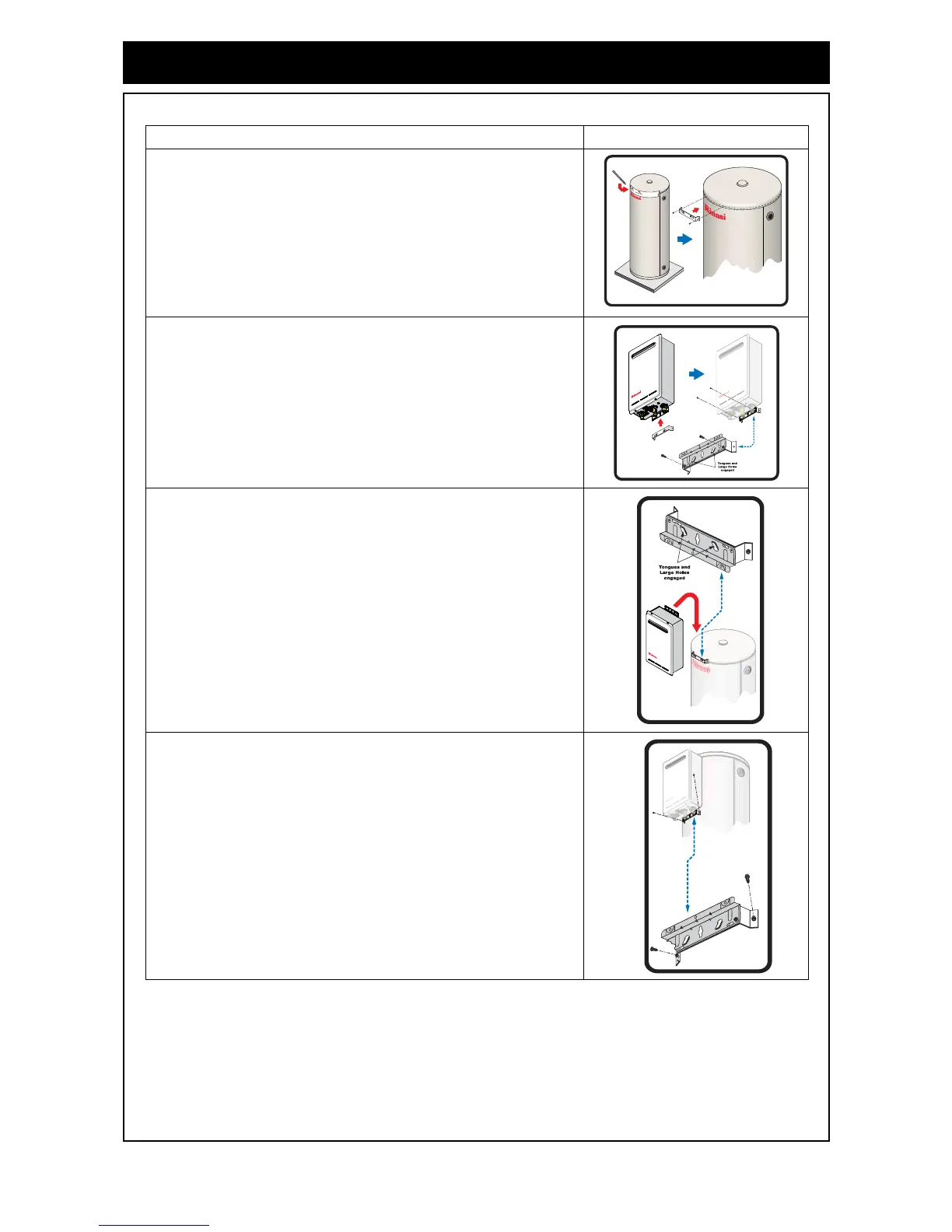

Table 9 - GAS BOOSTER MOUNTING Sunmaster
Step 1. Mount upper mounting bracket using template provided.
(SG175 - SG215 are factory mounted)
Step 2. Fix lower mounting bracket to Booster using screws provided.
Step 3. Hang booster on bracket and secure with screws provided.
Step 4. Secure lower mounting bracket to cylinder using screws provided.
INSTALLATION & MAINTENANCE - GAS BOOSTED SYSTEMS
