RisingHF ST Nucleo LoRa GW User Manual

V2.7 2017-09-28
www.risinghf.com
ST Nucleo LoRa GW User Guide
RisingHF
4
3.2 ST Nucleo LoRa GW Module
3.2.1 Pin description

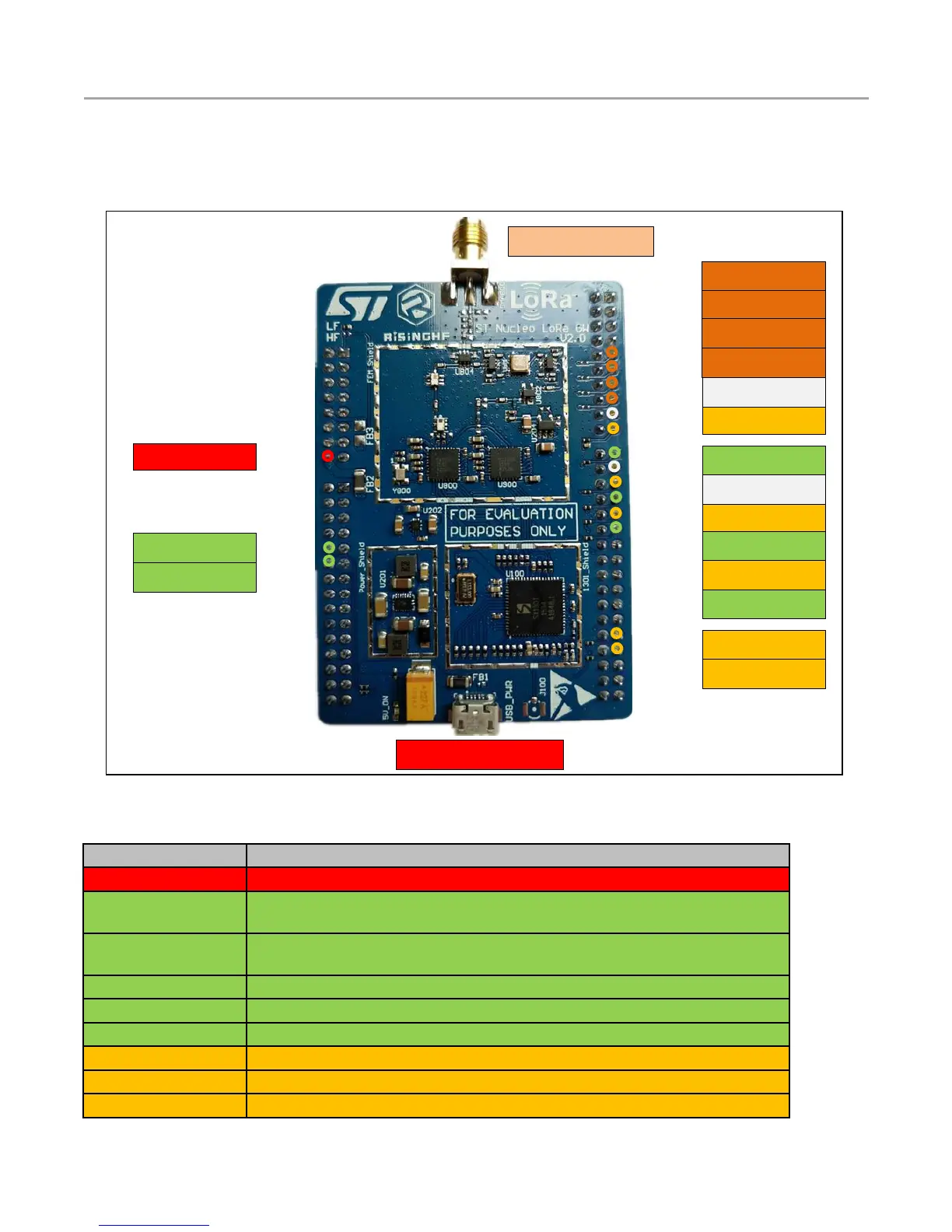

Figure 3-2 Pin description of ST Nucleo LoRa GW Module
Table 3-1 Pin description of ST Nucleo LoRa GW Module
PIN NAME
PIN Description
VIN
Power supply to Nucleo-F746ZG Board from External 5V
PF5/PD12/PC4/PB9
-GPIO4
GPIO4 from SX1301
PF10/PD13/PC5/PB8
-GPIO3
GPIO3 from SX1301
PF15-GPIO2
GPIO2 from SX1301
PF14-GPIO1
GPIO1 from SX1301
PF13-GPIO0
GPIO0 from SX1301
PE11-CSN
CSN of SPI for SX1301
PE13-MISO
MISO of SPI for SX1301
PE12-SCK
SCK of SPI for SX1301
VIN
PE12 –SCK
PE14 – MOSI
PF12 – RST
ANT Connector
USB for External 5V supply
PA5 – SCK (opt)
PA6 – MISO (opt)
PA7 – MOSI (opt)
PD14 – CSN (opt)
PF5 – GPIO4
PF10 – GPIO3
PD15 – Band Set1
PF15 – GPIO2
PF13 – GPIO0
PF14 – GPIO1
PE13 – MISO
PE11 – CSN
PE9 – Band Set2
