PUB. NO. FASTRAXC FEBRUARY 2008 17
FASTRAX
™
13. Verify there is a wall surface at the header for the rear top
seal to seal against, Figure 26.
14. If optional High Velocity Blower is included, install off to
the side of the door jamb, near the top of the opening,
Figure 30.

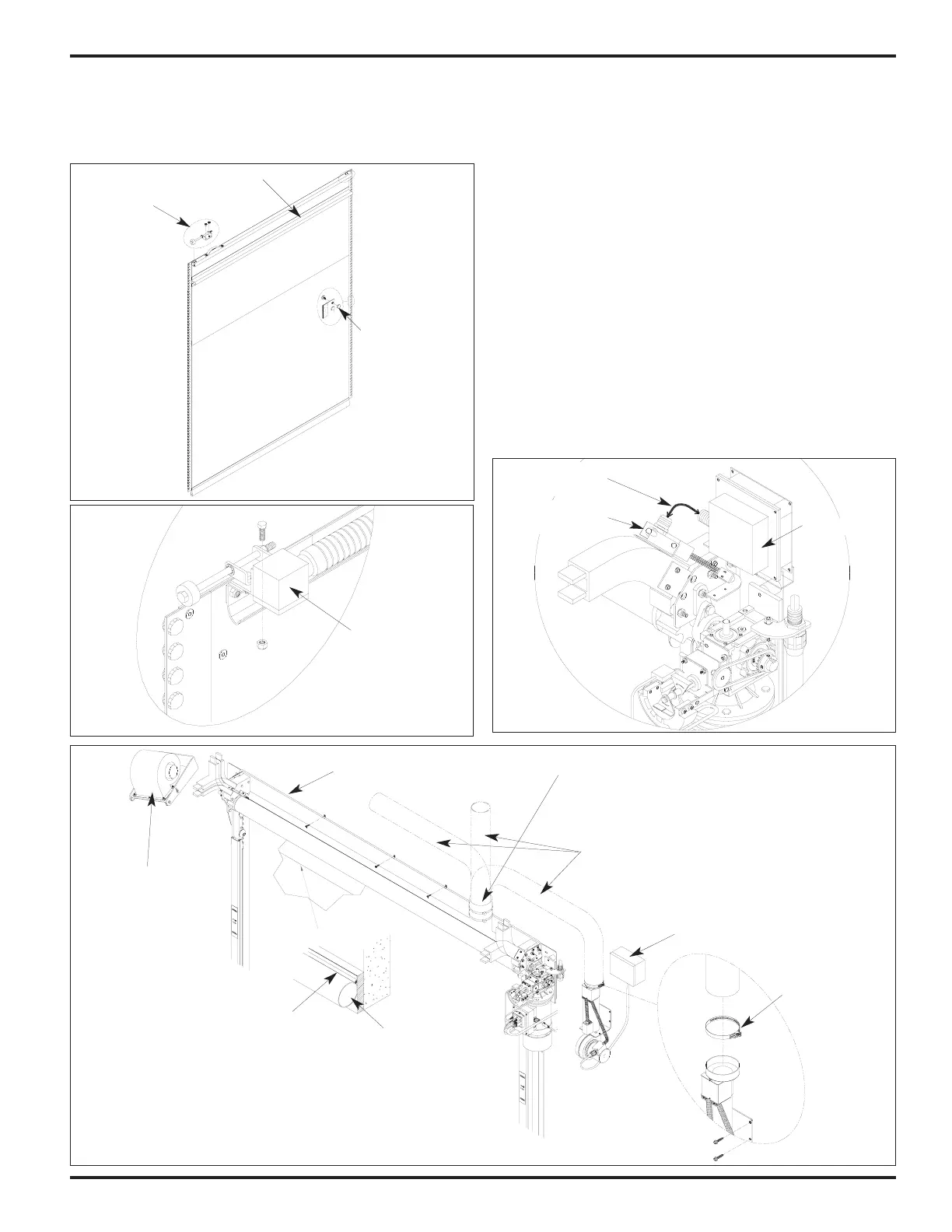

CURTAIN INSTALLATION
FIGURE 26 - CURTAIN
Back Side
of Curtain
Drive Spheres
FIGURE 27 - FR CURTAIN
Exhaust Cup
Drive Side
Top Curtain
Roller
Rear Top Seal
FIGURE 28
FIGURE 30 - THERMAL AIR SEAL
Lower Track
E-Vac Cup
E-Vac Blower
Hook Hose From
Blower to Cup
Optional High
Velocity Moisture
Reduction Blower
Thermal Air System Hose-8’ Supplied.
Position As Required and Attach to
Wall With Clamps
Thermal Air System,
E-Vac Junction Box
Non-Drive Photoeye
Cable Installation
Thermal Air Bag
Aluminum Retainer
Thermal Air Bag
Clamp Hose to Air Bag
Outlet With Cable Ties
Thermal Air
Bag Clamp
Back Side
To Next Page
