FASTRAX
™
DRIVE GUARD INSTALLATION
1. If door height is less than 8'-0" tall, install drive guard onto
vertical, tilt, high lift style doors, Figure 45.
2. If door height is less than 8'-0" tall, install drive guard onto
radial style doors, Figure 46.
SIGN INSTALLATION
1. If door height is less than 8'-0" tall, install sign and
brackets onto all radial style doors, Figure 47.
MISC OPTIONS

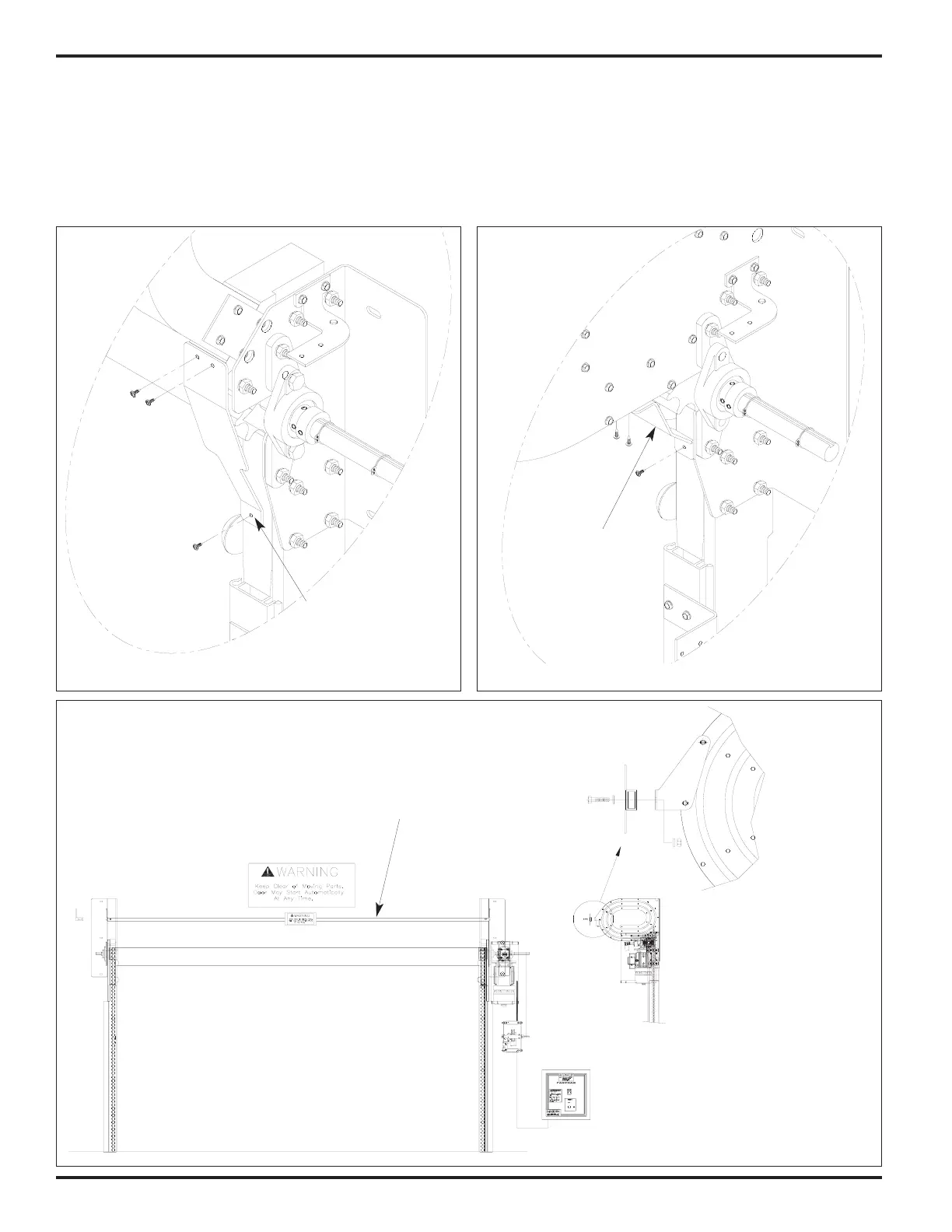

FIGURE 45 - DRIVE GUARD
Drive Guard
FIGURE 46 - DRIVE GUARD
Drive Guard
DOOR SYSTEM
FIGURE 47 - < D.O.H. KEEP CLEAR SIGN
Sign and Bracket
for Doors under
8'-0" D.O.H.
