24 Rittal air/water heat exchanger assembly instructions
9 Technical specifications
EN
9 Technical specifications

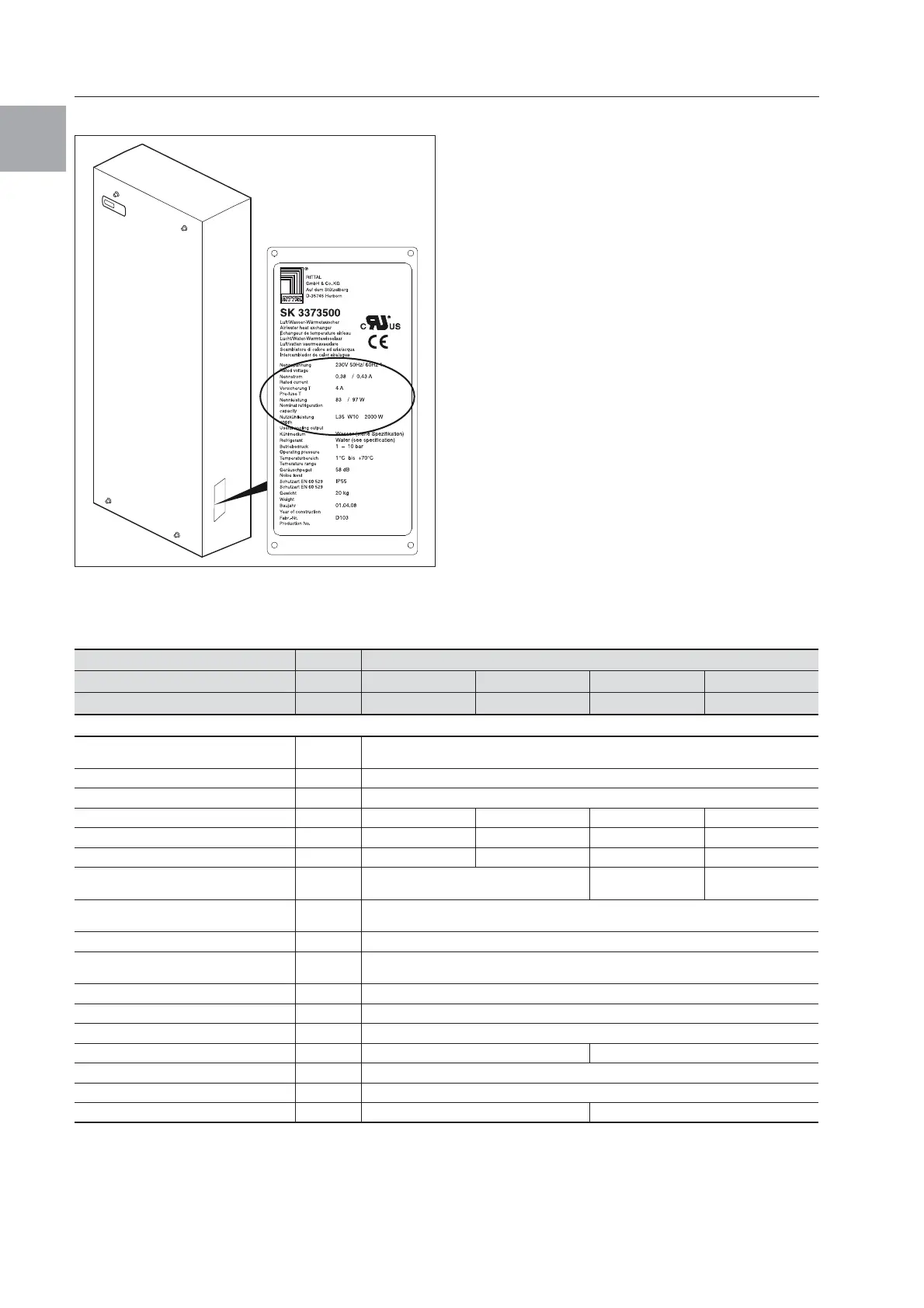

Fig. 31: Rating plate (Technical specifications)
– Observe the mains connection data (voltage
and frequency) as per the rating plate.
– Observe the pre-fuse as per the specifications
on the rating plate.
Unit Model No.
Basic controller, RAL 7035 – 3363.100 3363.104 3364.100 3364.104
e-Comfort controller, RAL 7035 – 3363.500 3363.504 3364.500 3364.504
Rated voltage
Volt
Hz
230, 1~,
50/60
Rated current A 0.18/0.18
Pre-fuse T A 4.0
Motor circuit-breaker A – – – –
Transformer circuit-breaker A – – – –
Miniature circuit-breaker or gG slow fuse (T) – 䡲 䡲 䡲 䡲
Total cooling power Pc
to DIN 3168 L35 W10 400 l/h
kW 0.5 1.0 0.95
Power consumption Pel
to DIN 3168
kW 0.037/0.038
Water connection –
1
/
2
˝ hose nozzle or G
3
/
8
˝ external thread
Air throughput per fan
(unimpeded air flow)
m
3
/h 290/345
Permissible pressure bar 1…10
Operating temperature range °C +1…+70
Setting range °C +20…+55
Noise level dB (A) 42 44
Protection category to IEC 60 529 – IP 55
Dimensions (W x H x D) mm 280 x 550 x 120
Weight kg 8 9
