Rittal CS 9761.212 - Fitting the Cooling Unit

28 RITTAL outdoor cooling unit assembly and operating instructions
4 Assembly and connection
EN
4.3 Fitting the cooling unit
Outdoor cooling units from RITTAL are specifically
tailored to the twin-walled outdoor enclosure sys-
tems CS Toptec and CS modular enclosures.
The cooling units are supplied fitted on the outdoor
enclosure.
If self-installed, a cut-out must be made in the door,
wall or roof in accordance with the mounting cut-out
(cf. Fig. 2 – 4) in the inner and outer door or wall or in
the roof of the basic enclosure. The cooling unit is
secured using the M6 screw-fixing points provided in
the cooling unit enclosure.

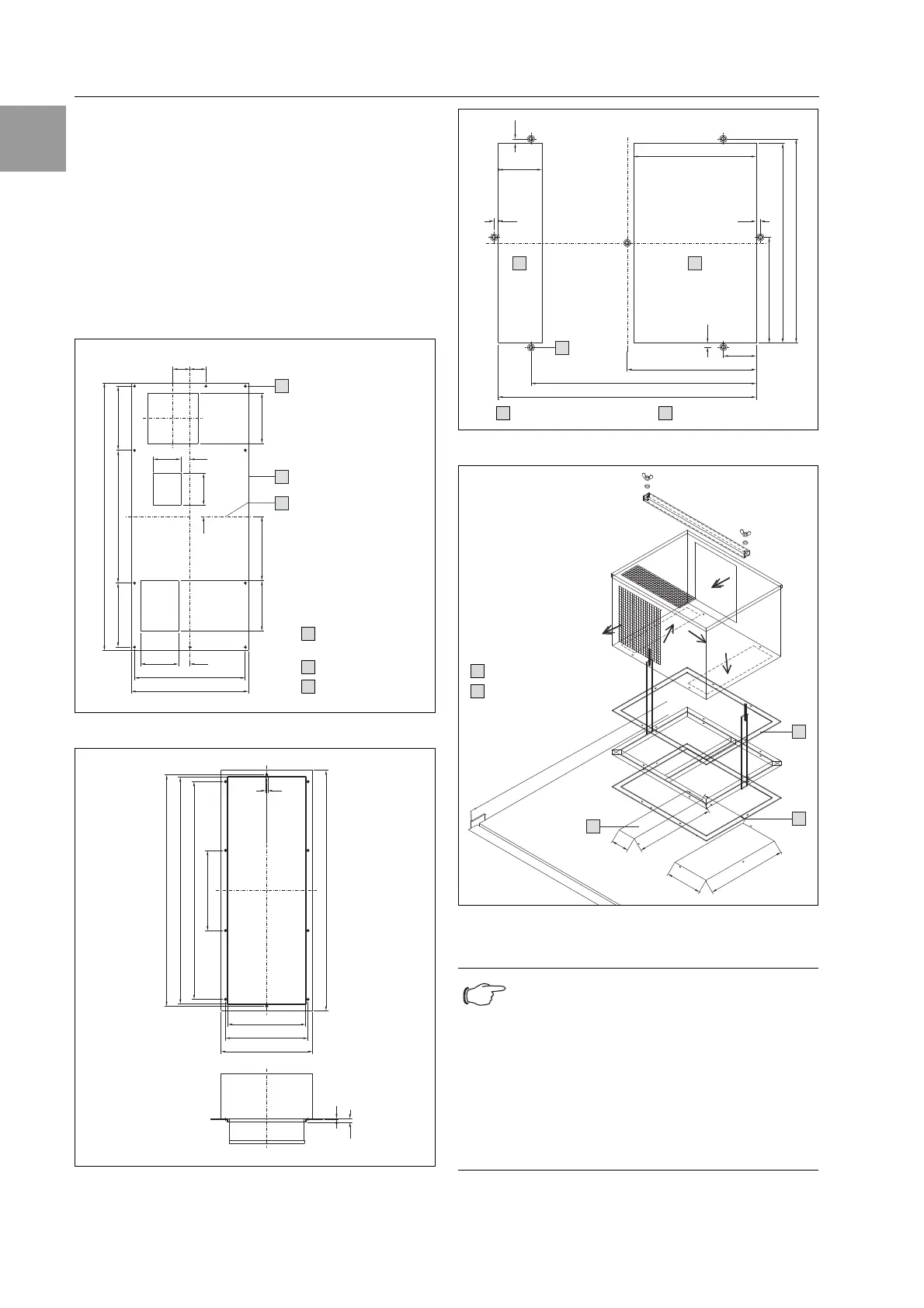

Fig. 2: Mounting cut-out CS 9761.212
Fig. 3: Mounting cut-out CS 9768.152
Fig. 4: Mounting cut-out CS 9762.212
Fig. 5: Assembly sequence CS 9762.212
580
117 0
280
513
483
50
220
280
165
40
75
50
70
280
220
120
140
1
2
3
Rivet nut M8
(solid version)
Outer contour
Enclosure centre
1
2
3
1050
1010
990 950
400
15
2
360
340
350
8
Note:
Mounting frame required for
roof-mounted cooling unit CS 9762.212
A mounting frame CS 9765.051 and a cli-
mate control cover, tailored to the width and
depth of the enclosure, are required for
mounting the roof-mounted cooling unit
CS 9762.212 on the CS modular enclosure.
Use on enclosures in the CS Toptec series
is not supported.
77
7. 5
7. 5
7. 5
7. 5
398
456
228
58
187
354
361.5
217
11
2
Cut-out
1
Rivet nut M5
2
1
1
2
B
D
A
E
C
Seal
Cut-out
1
2
