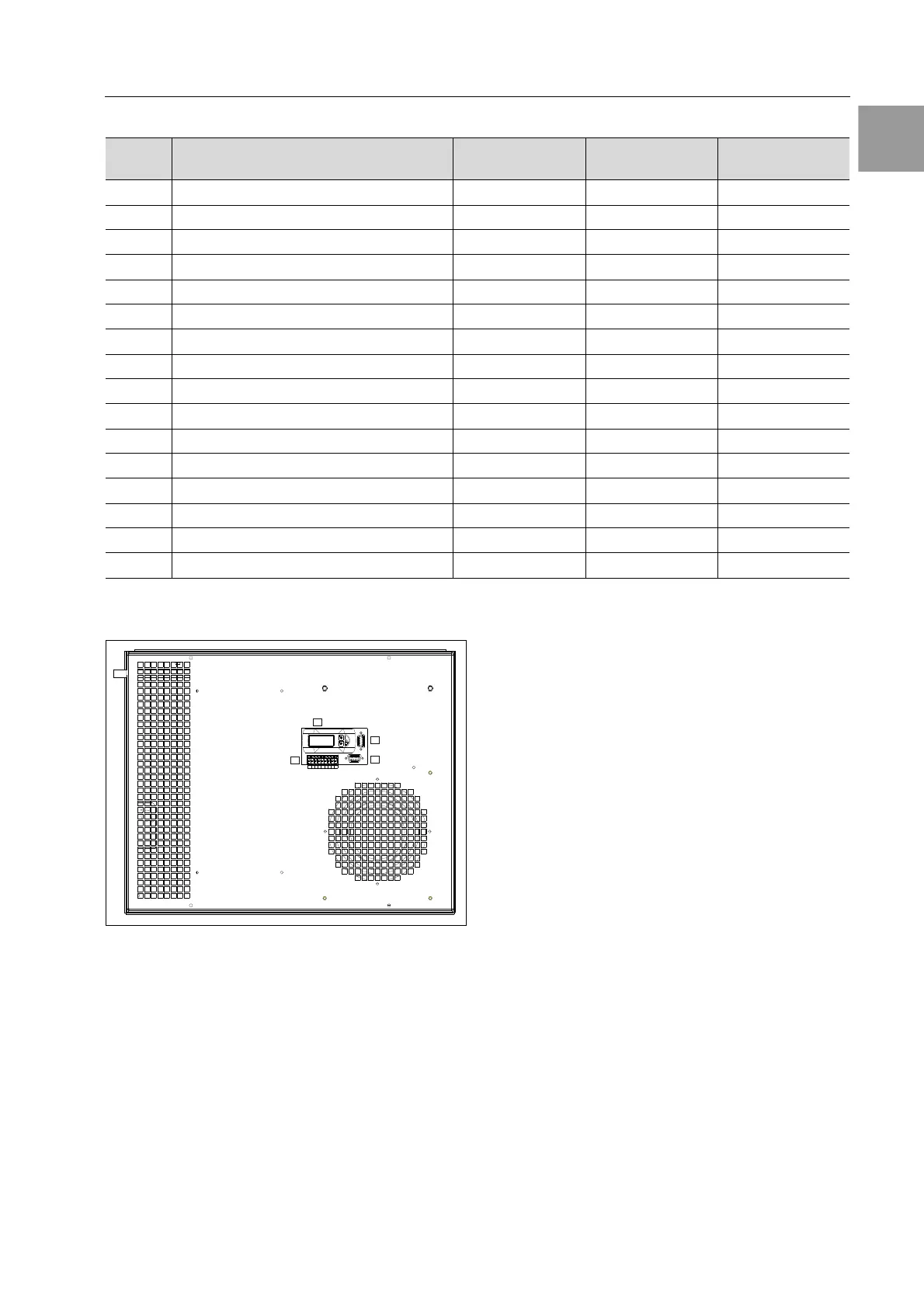

10 List of spare parts
RITTAL outdoor cooling unit assembly and operating instructions 41
EN
10 List of spare parts
Tab. 6: List of spare parts
Fig. 11: CS 9762.212 Connector panel
Description 9761.212
RITTAL ID
9762.212
RITTAL ID
9768.152
RITTAL ID
1 Internal circuit fan 234888 243128 234888
2 External circuit fan 234888 243127 255245
3 Female multi-point connector, 9-pole 256972 256972 256972
4 Temperature sensor T
internal
259215 318899 259215
5 Temperature sensor T
icing
259220 259220 259220
6 Controller board 325022 325022 325022
7 Tubular heater 234435 234435 234435
8 Thermostat (for heater) 234426 234426 234426
9 Compressor 232841 225955 219822
10 Filter dryer 219016 219016 219016
11 Expansion valve 222762 219018 219017
12 High-pressure switch 223667 232426 237447
13 Evaporator coil 236206 243143 248266
14 Condenser 236205 243144 248265
15 Coupling relay 309763 325243 309763
16 Display of control component 315939 315939 315939
X1
X2
A2
X3
L2
N
L1 PE 1 2 3 4 5
.
.
