UPS Functional Descriptions
UPS-Manual
9
EN

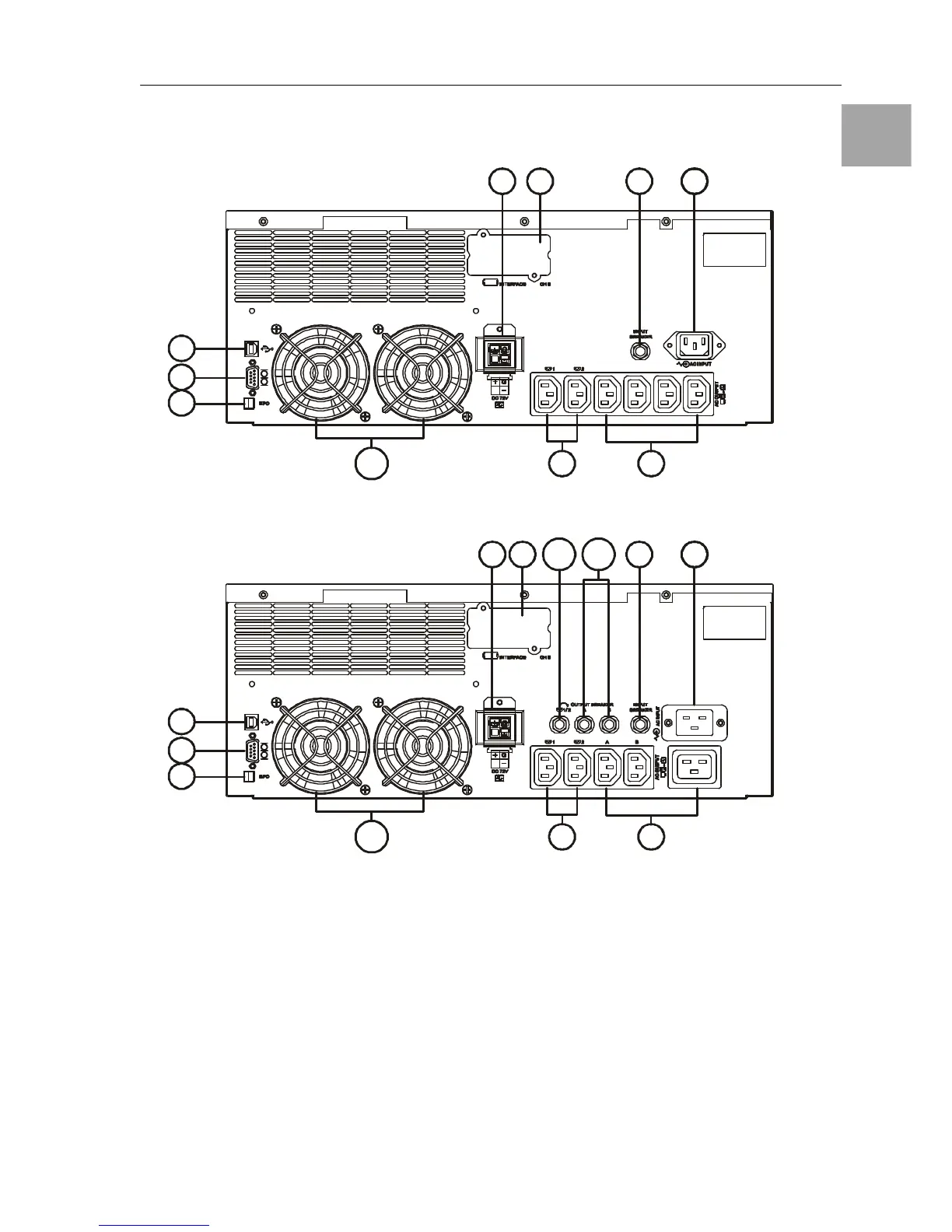

3.3. Rear Panel Description PMC12
compact
1. USB Port
2. RS232 Port
3. Emergency Power Off (EPO) Dry
Contact Signal inputs
4. Communication Card Options Slot
5. External Battery Connector
6. AC power connection socket
7. AC Outlets
8. Two programmable outlets
9. Utility Input fuse holder
10. Cooling Fans
11. Output fuse holders
12. Output fuse holders for two
programmable outlets
2KVA
3KVA
1
2
3
4
6
5
10
9
8
7
1
2
3
4
6
5
10
9
8
7
12
11
