Schranksystem VX IT / VX IT enclosure system / Baies VX IT
1.2
1.3
1
1
2
3
3
1.1
1.4
4. Montage und Aufstellung
4. Assembly and siting
4. Montage et implantation
TX30
2.1
2.2
3.33.23.1
M
A
= 2,5 Nm M
A
= 2,5 Nm
4.3.8 Aufstellung vorbereiten
4.3.8 Preparing for installation
4.3.8 Préparer la mise en place

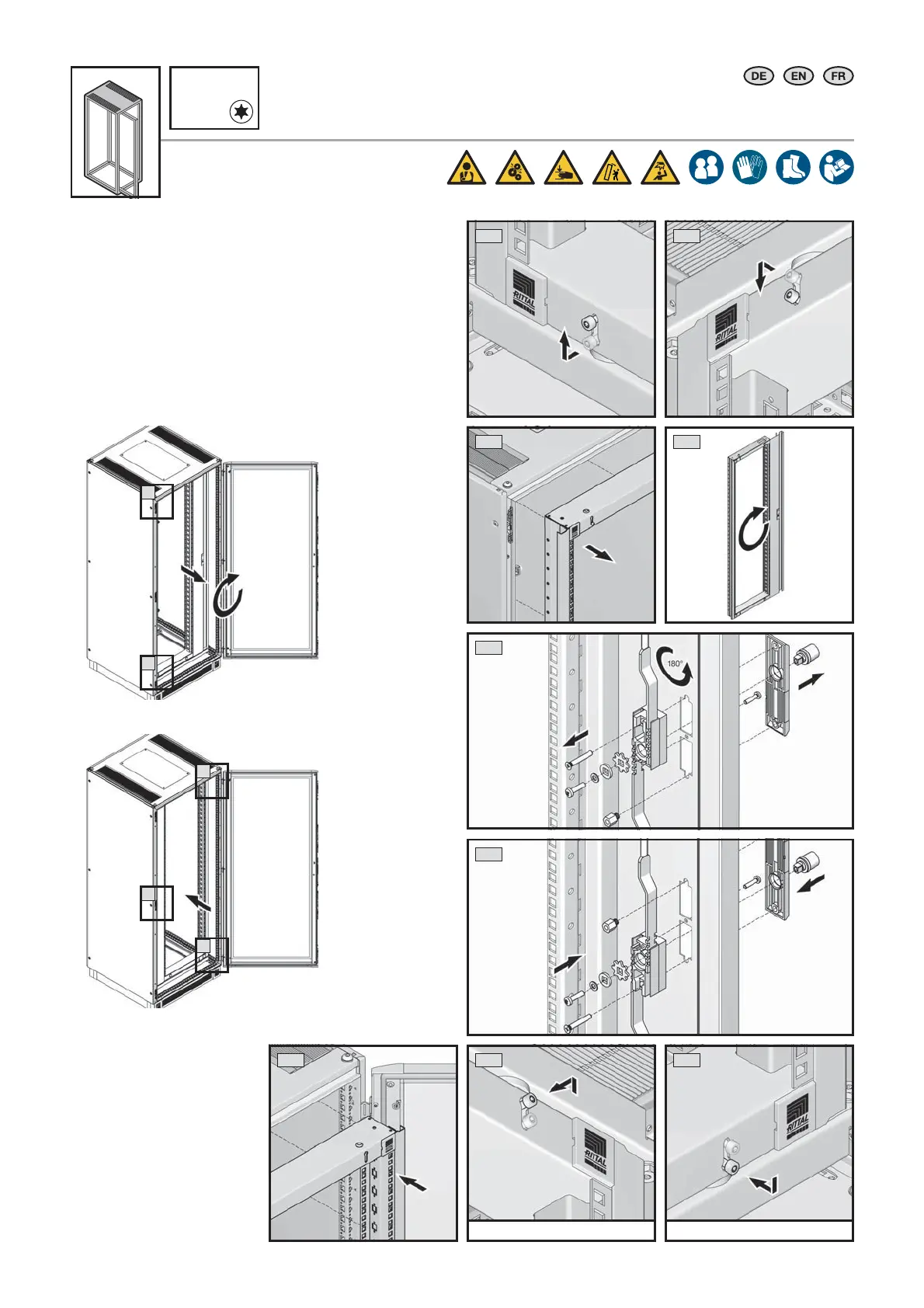

Schwenkrahmen – Anschlagwechsel
Swing frame – Swapping the hinges
Cadre pivotant – changement du sens d’ouverture
