6 Supported Device
Range of supported device address is shown in the table below. Please note that the actually supported range of
the devices varies depending on the External Device to be used. Please check the actual range in the manual of
your connecting equipment.
Input address of external device in the dialog below.
When reading out:
Data read out from the temperature controller are dealt as integral number.
e.g. When the value of temperature controller is 100.0;
Value of temperature controller: 100.0
Value indicated by display: 1000
To display decimal points in value indication, set "decimal digit number" of "display data
form." In the case of the example above, the decimal digit number is the first decimal
place, so set "1."
e.g. When the value of temperature controller is 100.0;
Value of temperature controller: 100.0
Value indicated by Diaplay: 100.0
The decimal point position is internally processed depending on the specified address.
Specified same as the address on the device list: No decimal point
Specified by adding 0x1000 to the address on the device list
: One digit after decimal point.
Specified by adding 0x2000 to the address on the device list
: Two digit after decimal point.
Specified by adding 0x3000 to the address on the device list
: Three digit after decimal point.

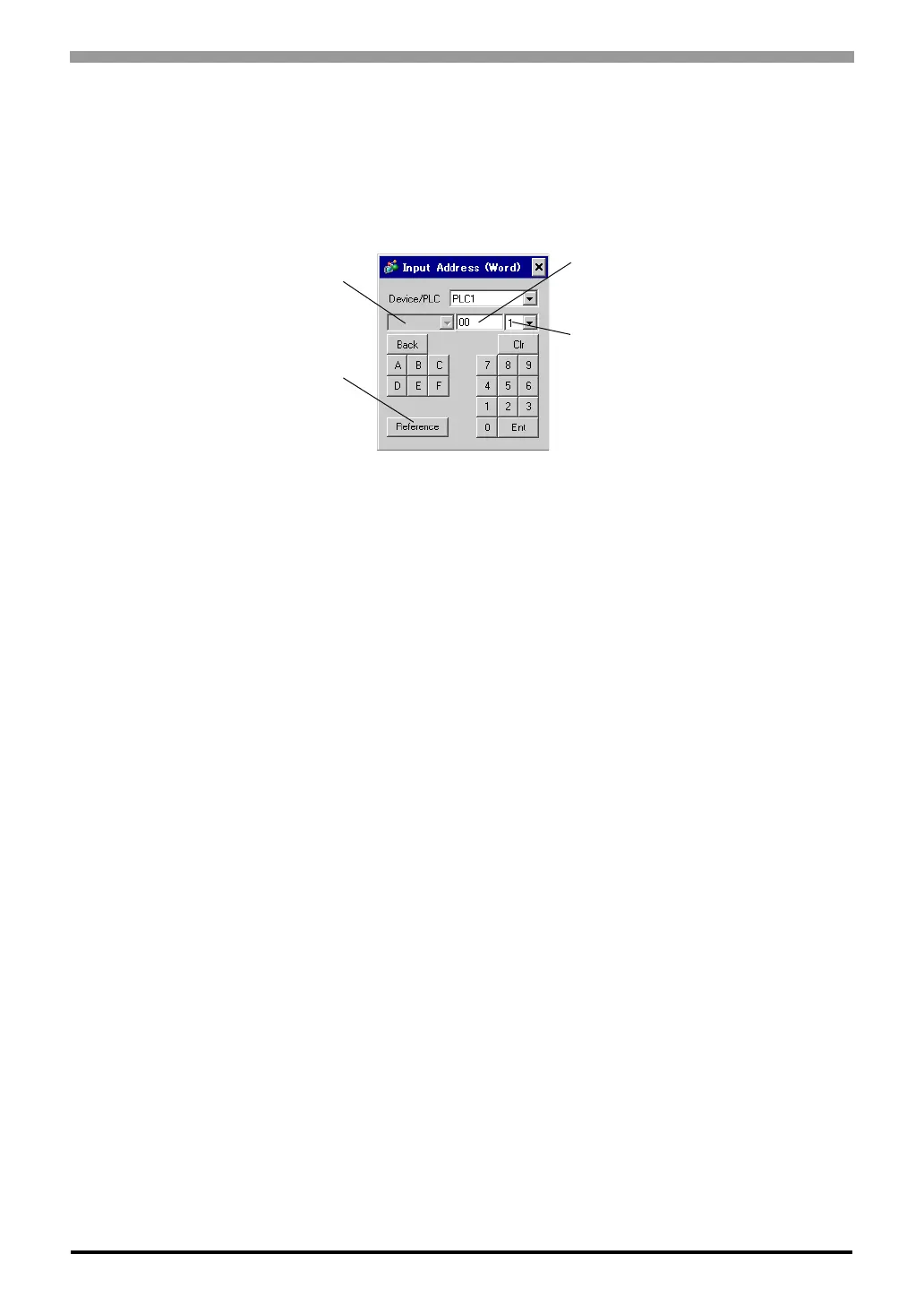

1. Channel number Select the channel number of external device.
It can be selected when SR Mini HG(H-PCP-A/B), SR Mini HG(H-PCP-J), SRZ(Z-TIO),
SRZ(Z-DIO), SRZ(Z-CT) and SRZ(Z-COM) are used.
2. Reference The list of available identifiers is displayed.
When clicking the identifier to be used and pressing "Select," the address is inputted.
3. Address Address is set.
Combination of identifier and address differs per external device. Please refer to the list of
identifiers.
4. Decimal digit number Decimal digit number of data is set.
