3. SETTING FOR COMMUNICATION
IMCB03-E3
7

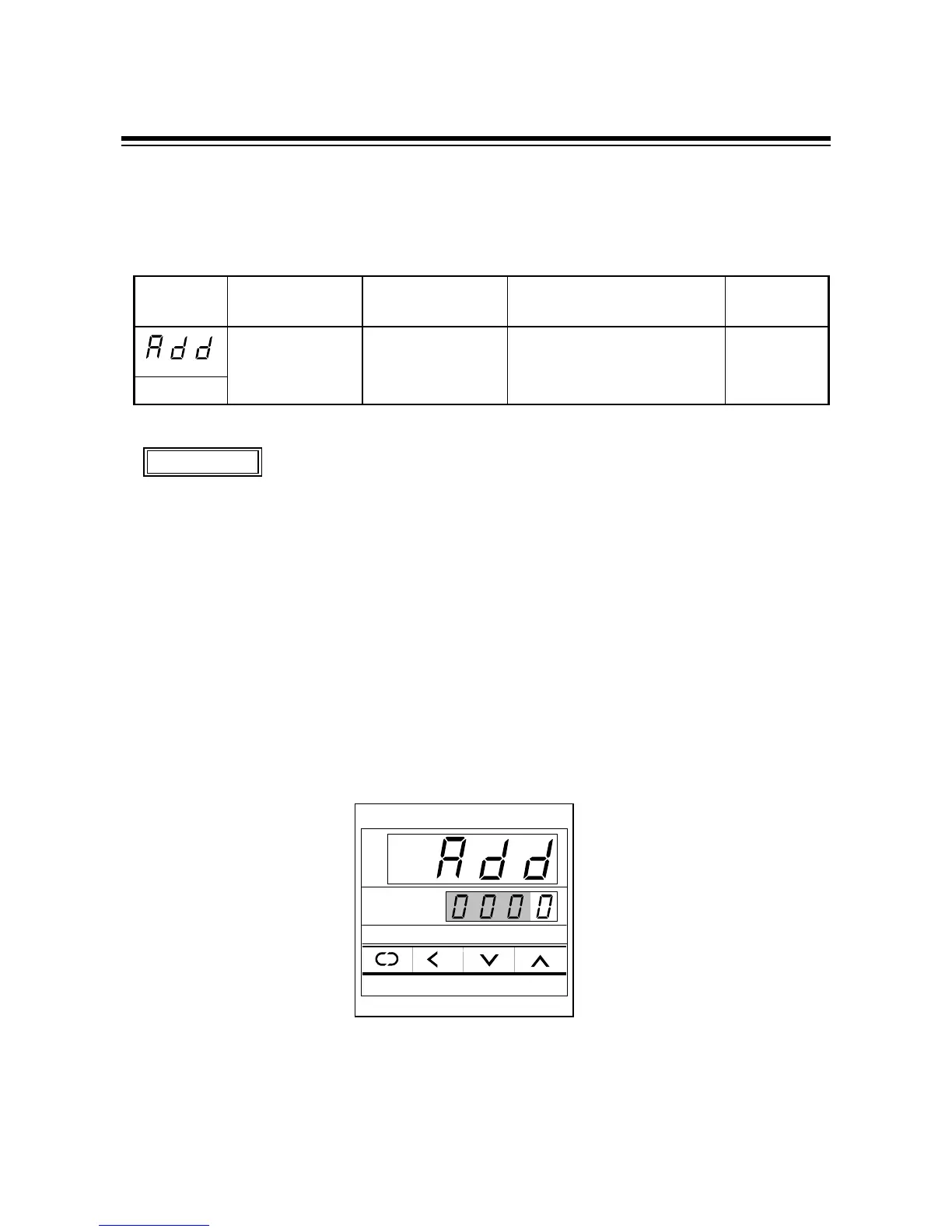

3.3 Device address setting
Set the device address by using numerals from 0 to 99. Press the UP or DOWN key to change the
numeral, and also press the <R/S key to shift the digit.
Symbol Name Setting range Description
Factory set
value
Device address 0 to 99 Sets the controller device
address.
0
Add
%
When the communication parameter was changed, always turn on the power again.
Otherwise, no communication is performed by using the changed value.
%
If key operation is not performed for more than 1 minute without pressing the SET key
after the device address is set, the controller is automatically changed to PV/SV display
mode. In this case, the set device address returns to the value before the setting is
changed.
!
Setting procedure
Example: When setting device address to 15.
1. Change the controller to communication setting mode, and then display the device address
(See P. 5, 6).
CAUTIONS
Device address
SET
R/S
SV
PV
ALM2ALM1AT OUT2OUT1
To Next Page
