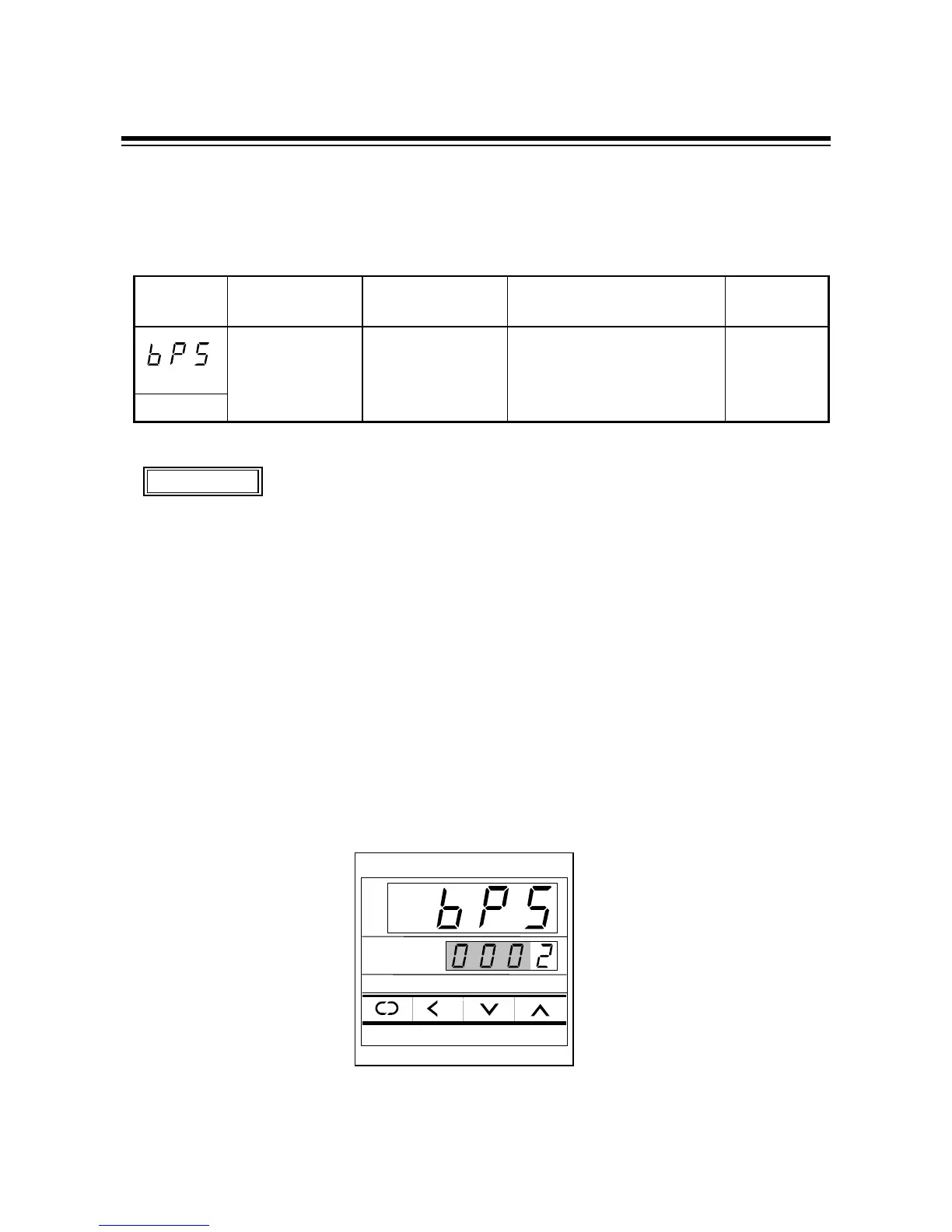

3. SETTING FOR COMMUNICATION
IMCB03-E3
9
3.4 Communication speed setting
Set a communication speed of 2400 bps, 4800 bps, 9600 bps or 19200 bps by using numerals from 0
to 3. Press the UP or DOWN key to change the numeral.
Symbol Name Setting range Description
Factory set
value
Communication
speed
0 : 2400 bps
1 : 4800 bps
2 : 9600 bps
Selects the communication
speed.
2
bPS
3 : 19200 bps
%
Set the same communication speed to both the controller and connecting host computer.
%
When the communication parameter was changed, always turn on the power again.
Otherwise, no communication is performed by using the changed value.
%
If key operation is not performed for more than 1 minute without pressing the SET key
after the device address is set, the controller is automatically changed to PV/SV display
mode. In this case, the set communication speed returns to the value before the setting
is changed.
!
Setting procedure
Example: When setting communication speed to "1: 4800 bps."
1. Change the controller to communication setting mode, and then display the communication
speed (See P. 5, 6).
CAUTIONS
Communication speed
SET
R/S
SV
PV
ALM2ALM1AT OUT2OUT1
