5.6.2 Batch setting (All channels batch setting)
The parameters selected from one memory area and corresponding to all of the channels can be simultaneously set as the same value.
The set values (SV) as well as the parameters set for each channel can be simultaneously set. Some examples of changing the set value
(SV) simultaneously are described in the following. The same setting procedure applies when other parameters for each channel are
also set.
!"

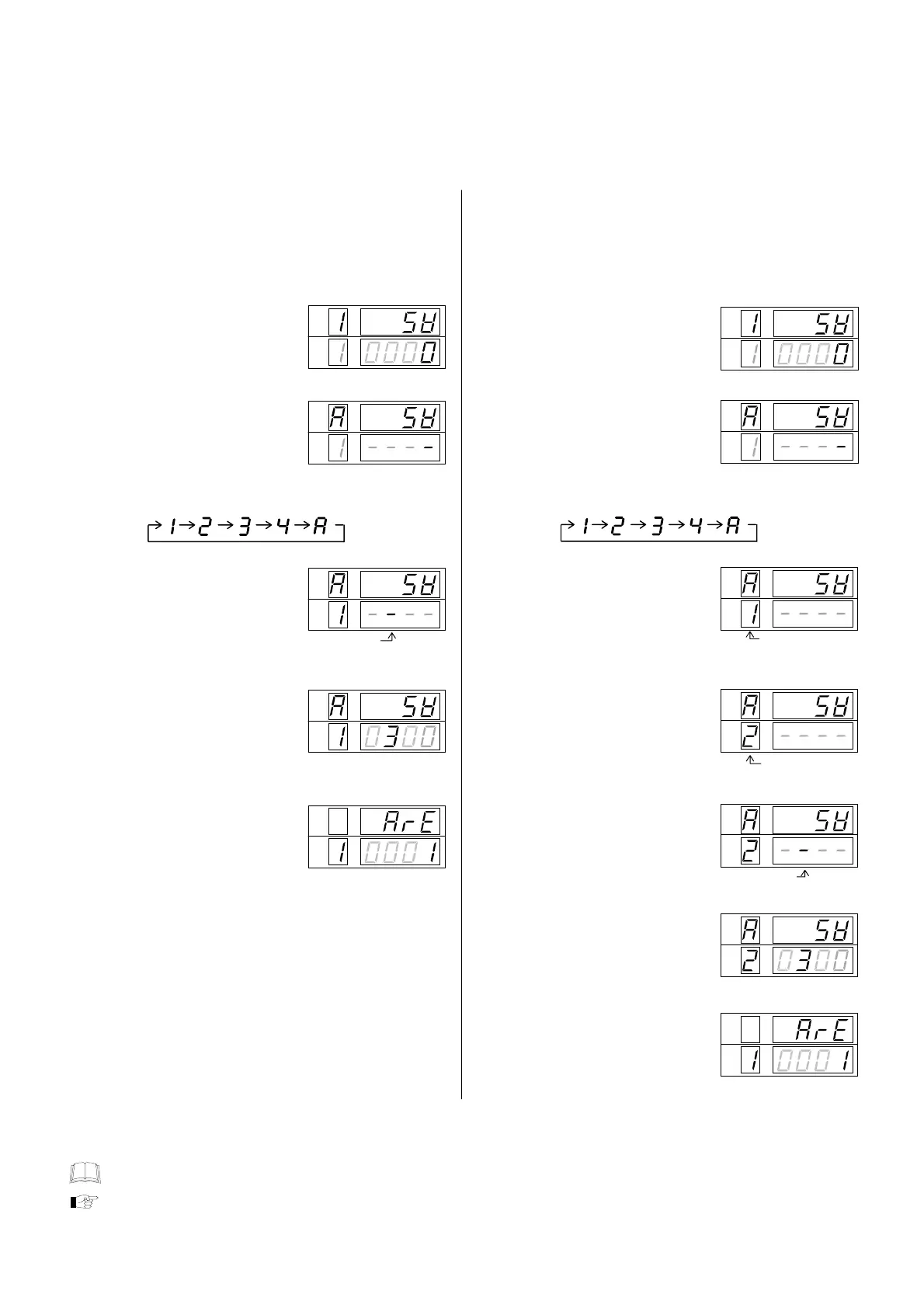

When the SV is changed in batch setting
When all set value (SV) of the control area (memory area 1) is
change from 0
°
C to 300
°
C:
1.
Press the SET key in PV/SV monitor
mode state to transfer to SV setting &
CT monitor mode.
2.
Press the CH key. Display the
character
A
on the CH display and
“----“ on the SV display. The
character
A
indicates that the batch
setting.
Every time the CH key is pressed, the channel number
changes as follows.
3.
Press the <R/S key to light brightly
the hundreds digit.
4.
Press the UP key to change to
3.
5.
Press the SET key. The value thus
set is registered simultaneously for
all of the channels. The display
changes to the next parameter
(Memory area transfer).
!"
The set values (SV) in other memory areas are
simultaneously set to the same value without
changing the control area
When changing the set values (SV) corresponding to all of the
channels in memory area 2 from 0
°
C to 300
°
C with the control
area corresponding to memory area 1:
1.
Press the SET key in PV/SV monitor
mode state to transfer to SV setting &
CT monitor mode.
2.
Press the CH key. Display the
character
A
on the CH display and
“----“ on the SV display. The
character
A
indicates that the batch
setting.
Every time the CH key is pressed, the channel number
changes as follows.
3.
Press the <R/S key to light brightly
the AREA display.
4.
Press the UP key to change to
2
.
The number of AREA display flashes.
5.
Press the <R/S key to light brightly
the hundreds digit.
6.
Press the UP key to change to
3
.
7.
Press the SET key. The value thus
set is registered simultaneously for
all of the channels. The display
changes to the next parameter
(Memory area transfer).
The set value (SV) corresponding to any unused channel is also subjected to the batch setting.
For details of shifting, see page 12.
