RKC INSTRUMENT THV-1 User Manual

IMR01M01-E16
14

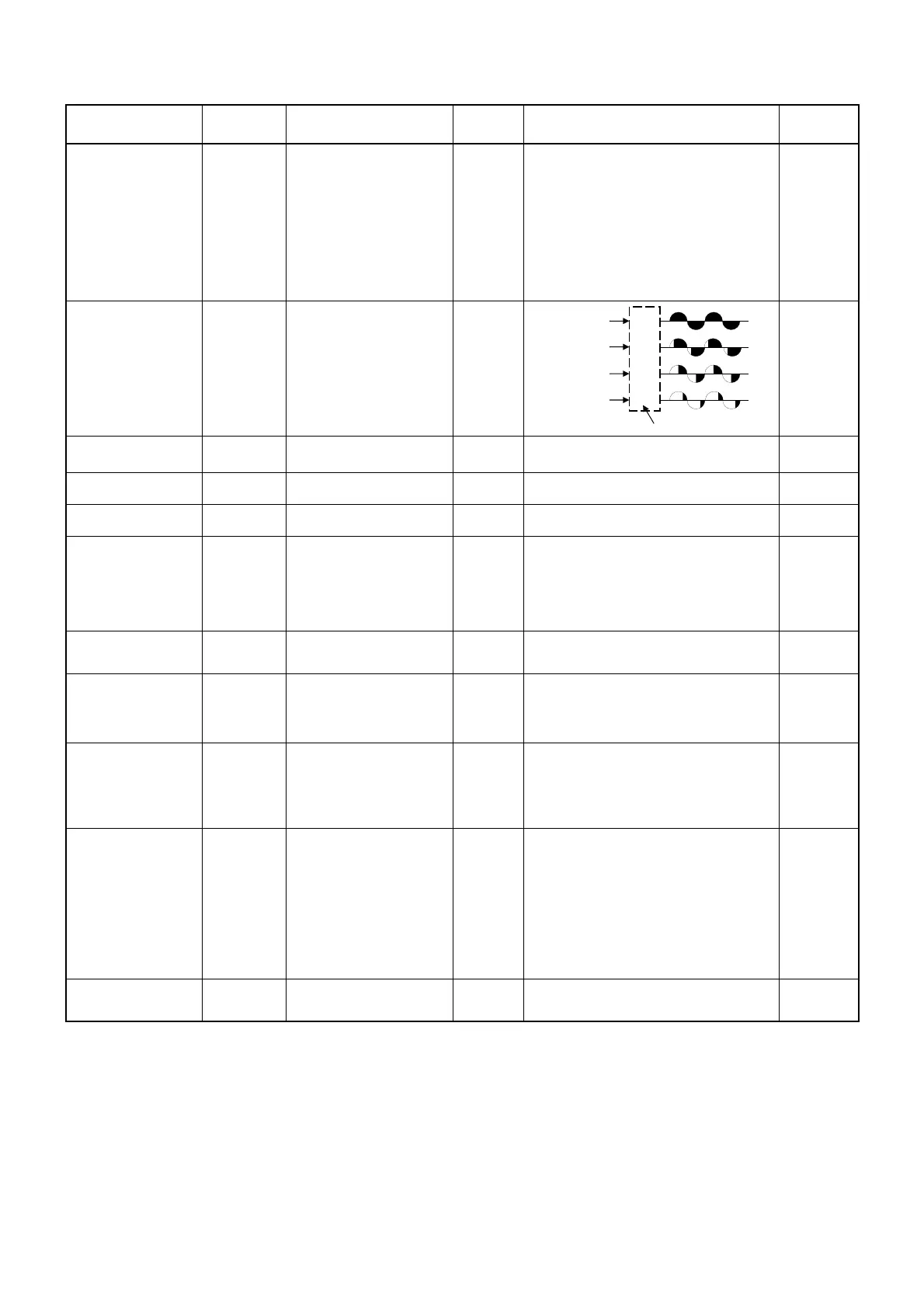

6.2.5 Parameter list
 Parameter group 1
Name
Parameter
Symbol
Display range or
Setting range
Factory
set value
Details
Reference
page
Input signal
monitor 1
No
parameter
0 to 100 % ⎯ Displays one of the following values
depending on the Control mode and
the setting of Contact input action.
• Input signal from controller
• External manual set value
• Internal manual set value
For this selection, refer to item
7.1 Selecting Manual Mode Type and
Input Signal Monitor 1.
P. 17
Phase angle ratio
monitor
M (M)
0 to 100 %
When 0 %:
phase angle 0°
When 100 %:
phase angle180°
⎯
⎯
Control method
C (C)
0: Phase control
1: Zero-cross control
0 Select the Control method. P. 17
Soft-start time
1, 2
U (U)
0.0 to 99.9 seconds 0.1 Set the Soft-start time. P. 17
Soft-down time
D (d)
0.0 to 99.9 seconds 0.1 Set the Soft-down time. P. 17
Internal gradient
set value
G (G)
0.00 to 1.00
0.00: Internal gradient
0 %
1.00: Internal gradient
100 %
1.00 Set the Internal gradient set value. P. 18
Output limiter high
H (H)
0.0 to 99.9 % 99.9 Set the Output limiter high setting.
3
P. 18
Output limiter low
4
L (L)
0.0 to 99.9 % 0.0 Set the Output limiter low.
3
The Base-up set value is effective only
when the Output limiter low is set to
0.0.
P. 18
Base-up set value
4
B (b)
0.0 to 99.9 %
0.0
Set the Base-up set value (output bias)
of output.
5
The Base-up set value is effective only
when the Output limiter low is set to
0.0.
P. 18
Output mode for
phase control
6
O (o)
0: Proportional phase
angle to input
1: Proportional voltage to
input
2: Proportional square
voltage (electric
power) to input
3: Constant current
control
7
2
Select the output method for Phase
control with linearity (R: resistor) load.
The setting is invalid when Zero-cross
control is selected.
P. 18
Internal manual
set value
I (I)
0.0 to 99.9 %
0.0
Set the Internal manual set value. ⎯
1
If a load generating large rush current is used, thyristor break-down may occur when no soft-start time is appropriately set.
Also in Zero-cross control, no rush current can be suppressed even if the soft-start time is set.
2
If the protection function for control of primary side of a transformer is enabled, soft-start function is always operated for 0.1
second regardless of setting of soft-start time (U) at 0.0 seconds.
3
Output limiter high value must be equal or higher than Output limiter low.
4
These function can not be used together.
5
Base-up set value will not exceed the Output limiter high.
6
The Output mode setting is invalid when the Control method is Zero-cross control.
7
These parameters cannot be set when the Heater break alarm, Current limiter, Constant current control and Protection
function for control of primary side of a transformer functions are not provided. If the rated current of thyristor differs from that
maximum load current flowing through the heater when the Constant current control is selected, compensate for the difference
by setting the gradient. Set the gradient so that the maximum heater load current will flow through the heater at an input signal
of 100 % from the controller. (Refer to P. 19)
25 %
50 %
75 %
100 %
Phase angle
180 °
Phase angle
135 °
Phase angle
90 °
Phase angle
45 °
Display this value.
