8

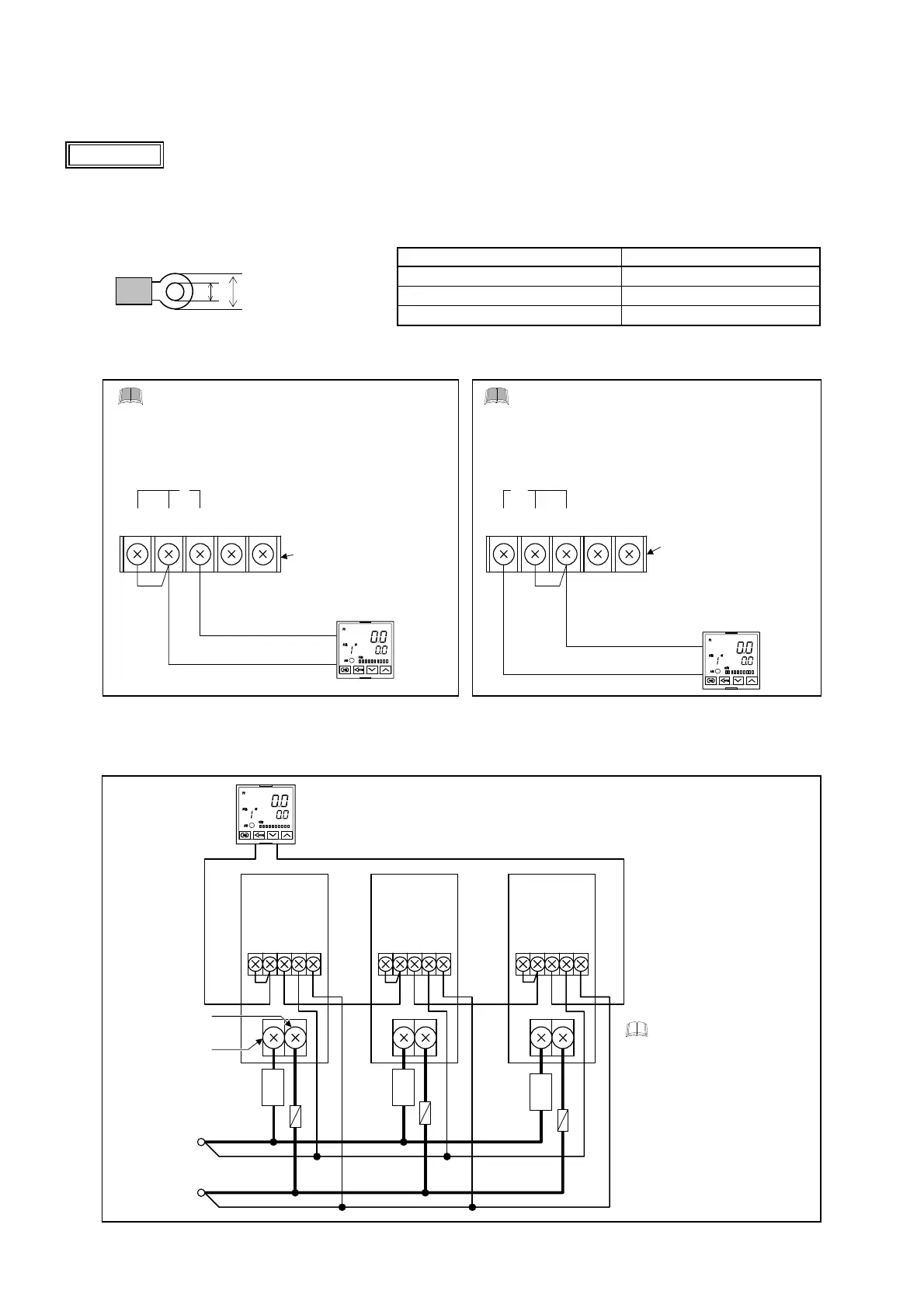

5.2 Wiring of Input Signal
 Current input 4 to 20 mA DC, voltage input 0 to 10 V DC, 1 to 5 V DC and voltage pulse input 0/12 V DC
The input signal type can be changed by moving the short bar position. Any parameter change is not required for input type
change.
 Firmly tighten each terminal screw with the tightening torque specified below. Otherwise, electric shock, fire or
the generation of heat may result.
 When using a solderless terminal lug, use ring type.
Ring type solderless terminal size and tightening torque
Item Input terminals (1, 2 and 3)
φ 3.2 mm or more
D (mm) 5.5 mm or less
Recommended tightening torque 0.4 N⋅m (4 kgf⋅cm)
Voltage input 0 to 10 V DC, 1 to 5 V DC or
Current input 4 to 20 mA DC Voltage pulse input 0/12 V DC
Short *
1 2 3 4 5
Current input
4 to 20 mA DC
+
−
THV-1 input impedance: 100
Ω
Temperature controller
4 to 20 mA DC output
For current input (4 to 20 mA DC), short terminal
No.1 with terminal No.2.
Short *
1 2 3 4 5
Voltage input 0 to 10 V DC, 1 to 5 V DC
Voltage pulse input 0/12 V DC
+
−
Temperature controller
0 to 10 V DC output
1 to 5 V DC output
0/12 V DC pulse output
For voltage input (0 to 10 V DC, 1 to 5 V DC) and
voltage pulse input (0/12 V DC), short terminal
No.2 with terminal No.3.
THV-1
Input and power supply
terminals
+ −
+ −
THV-1 input impedance
1 to 5 V DC, 0/12 V DC: 30 k
Ω
0 to 10 V DC: 68 kΩ
THV-1
Input and power supply
terminals
*
The input signal type can be changed by moving the short bar position. Any parameter change is not required for
input type change. However for a voltage input of 1 to 10 V DC, no input signal can be changed.
Application: Current input 4 to 20 mA DC (Series connection)
−
+
Temperature controller
4 to 20 mA DC
THV-1 THV-1
Input and power
supply terminals
1 2 3 4 5
THV-1
Power supply
100 to 240 V AC
(50/60 Hz)
Main circuit
terminal (1/L1)
THV-1 input impedance: 100 Ω
Main circuit
terminal (2/T1)
Input and power
supply terminals
1 2 3 4 5
Input and power
supply terminals
1 2 3 4 5
Fast-blow fuse
The number of THV-1 that can
be connected depends on the
allowable load resistance of
temperature controller being
used.
For resistance of controller,
refer to specification of the
controller instruction manual.
Load Load
Load
CAUTION
Ring type
solderless terminal
φ
D
