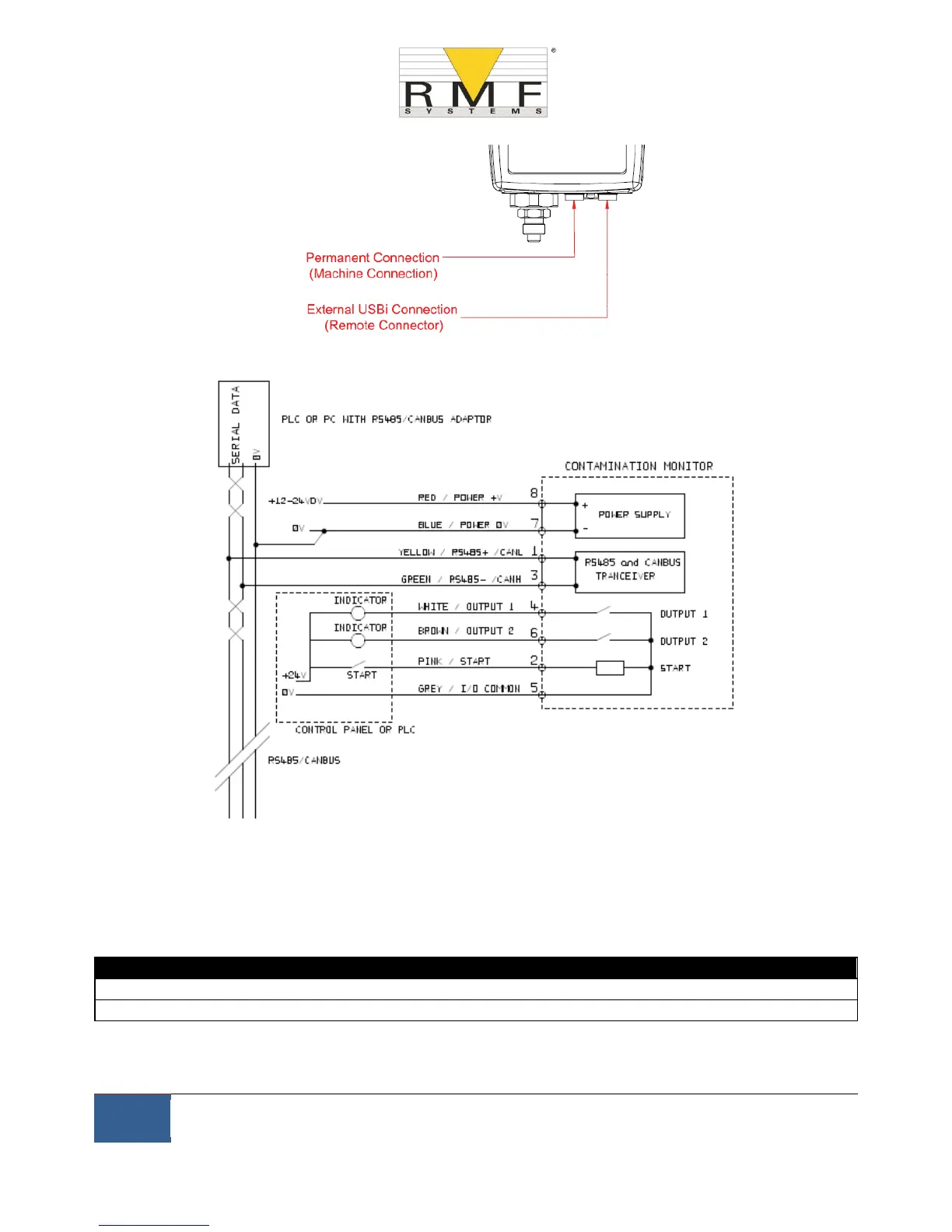

Figure 6.1 Connector Orientation
Figure 6.2 Machine Connector External Wiring Example
6.1.2.2 DC Power
DC power is connected to pins 7 and 8 of either circular connector (Red and Blue if using the pre-wired cable). All
the other signals are optional.
Item
Minimum
Maximum
Voltage
9V DC
36V DC
Current
200mA
