Robertshaw Smart Sense Series User Manual

7
Mounting the SMART 2000 Thermostat
IMPORTANT: TheSMART2000canonlybeasaccurateastheonboard
temperaturesensor,oritsoponalremotetemperaturesensor(s)
permit. The thermostat should be mounted in a location that is
typical of the ambient room temperature. Do not install it near the
floor,inadraft,behindadoor,oronanon-insulated,exteriorwall.
Installthethermostatawayfromexposuretosunlightandfourto
five feet (12.2 to 1.5 m) above the floor.

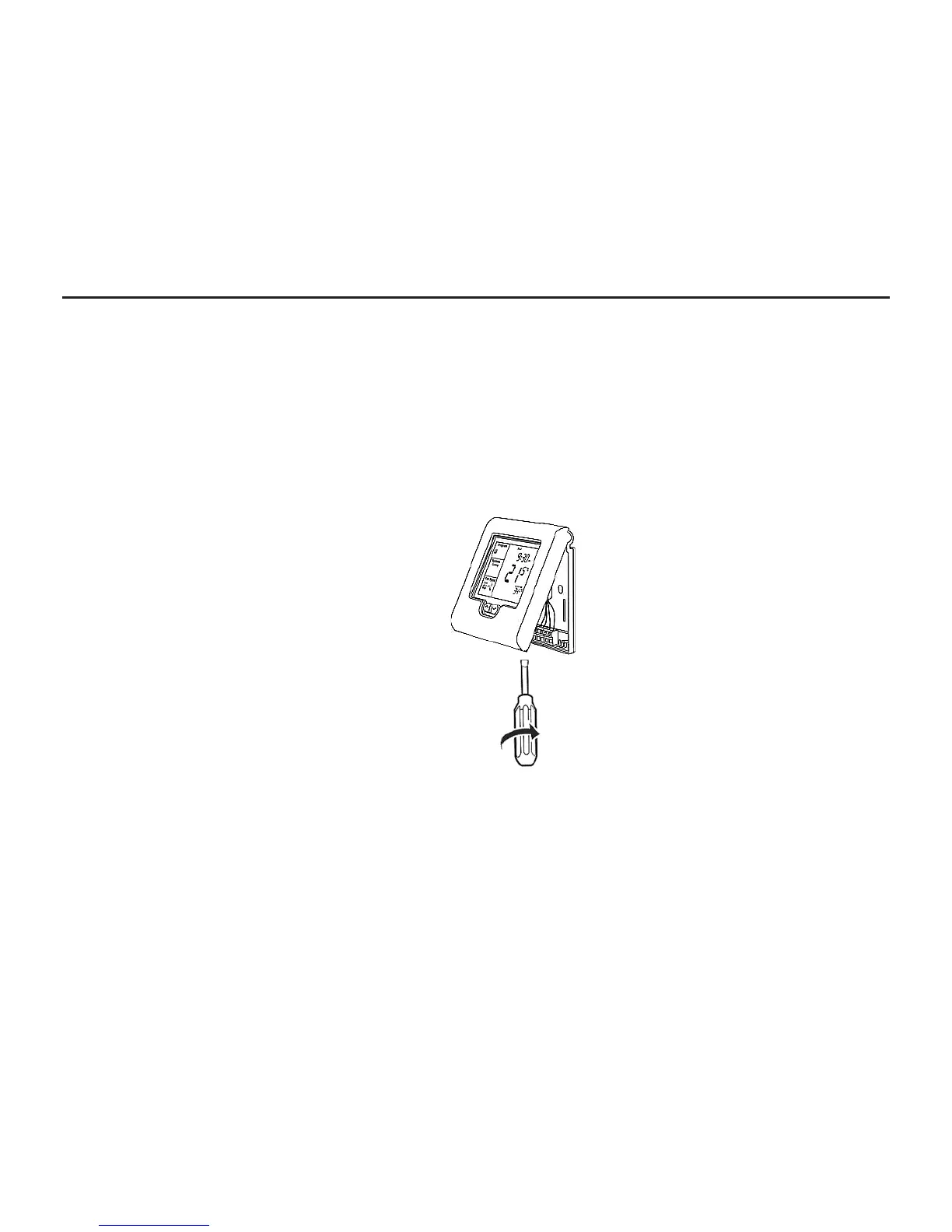

Figure 1
• Liftthecover(Figure1)onthehousingtoexposeaslotatthebottom.Takenotice
of the decorative cover hinge points and the connection between the two halves.
• Insert a screwdriver or coin into the slot and twist. This will separate the two
halves.

Robertshaw Smart Sense Series Specifications

General

Brand	Robertshaw
Model	Smart Sense Series
Category	Thermostat
Language	English
