Robin EH12 Service Manual

Step I Part to remove I Procedures
~~~~
9
(1) Remove head cover from crankcase. Head cover
M6x 12mrn flange bolt -.-- Ipc.
10
(1) Remove cleaner cover, cleaner element
Air cleaner
and element retainer.
(2) Remove cleaner case.
M6 flange nut -..- 2pcs.
Remarks
Fastened together with
carburetor.
GASKET CLEANER CASE
Tool
I Ornm
socket wrench
1 Omm
socket wrench

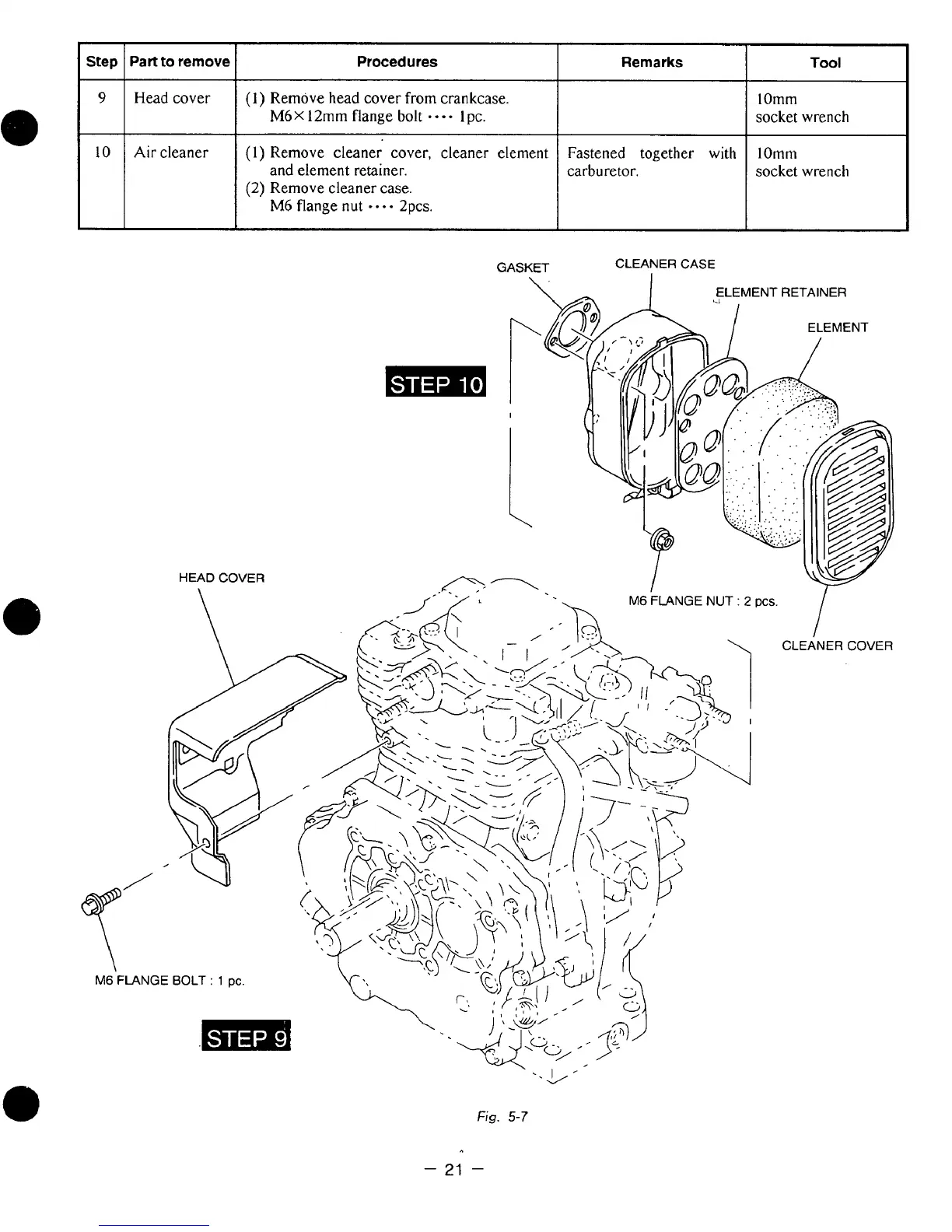

Fig. 5-7
- 21 -

Robin EH12 Specifications

General

Ignition System	Transistorized magneto ignition
Starting System	Recoil starter
Bore x Stroke	60 mm (2.36 in) x 43 mm (1.69 in)
Max Output	3.6 kW (4.8 HP) at 3, 600 rpm
Engine Type	4-Cycle, Air cooled, Single cylinder, OHV
