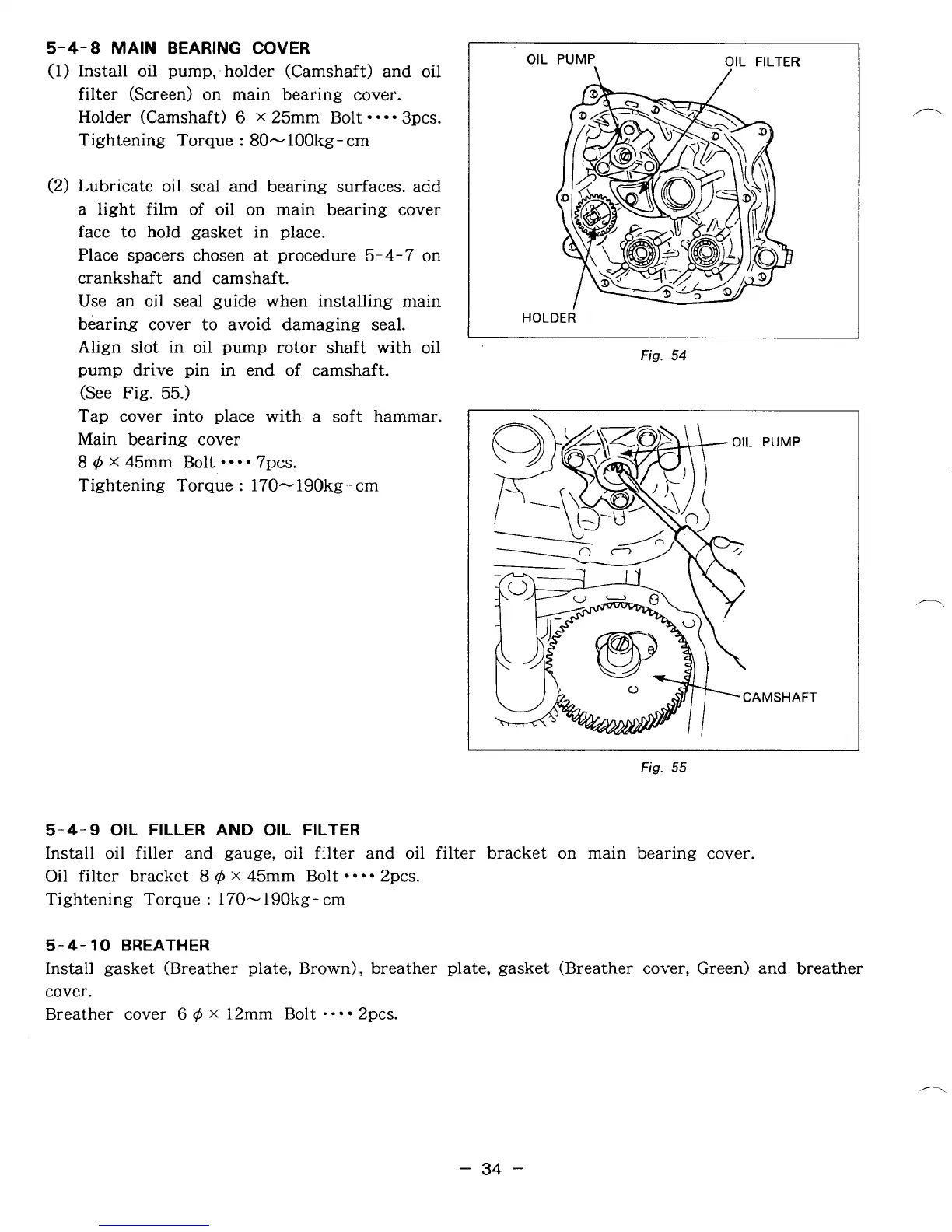

5-4-8 MAIN BEARING COVER
(1) Install oil pump, holder (Camshaft) and oil
filter (Screen) on main bearing cover.
Holder (Camshaft)
6 X 25mm Bolt 3pcs.
Tightening Torque
: 80-100kg- cm
(2) Lubricate oil seal and bearing surfaces. add
a light film of oil on main bearing cover
face to hold gasket in place.
Place spacers chosen
at procedure 5-4-7 on
crankshaft
and camshaft.
Use an oil seal guide when installing main
bearing cover to avoid damaging seal.
Align slot in oil pump rotor shaft with oil
pump drive pin in end of camshaft.
(See
Fig. 55.)
Tap cover into place with a soft hammar.
Main bearing cover
8 4 X 45mm Bolt 7pcs.
Tightening Torque
: 170- 190kg- cm
1 OIL PUMP
\
OIL FILTER
/
HOLDER
Fig. 54
.
I
Fig. 55
5-4-9 OIL FILLER AND OIL FILTER
Install oil filler and gauge, oil filter and oil filter bracket on main bearing cover.
Oil filter bracket
8 @ X 45mm Bolt 2pcs.
Tightening Torque
: 170- 190kg- cm
5-4-10 BREATHER
Install gasket (Breather plate, Brown), breather plate, gasket (Breather cover, Green) and breather
cover.
Breather cover
6 @ X 12mm Bolt a- 2pcs.
- 34 -
