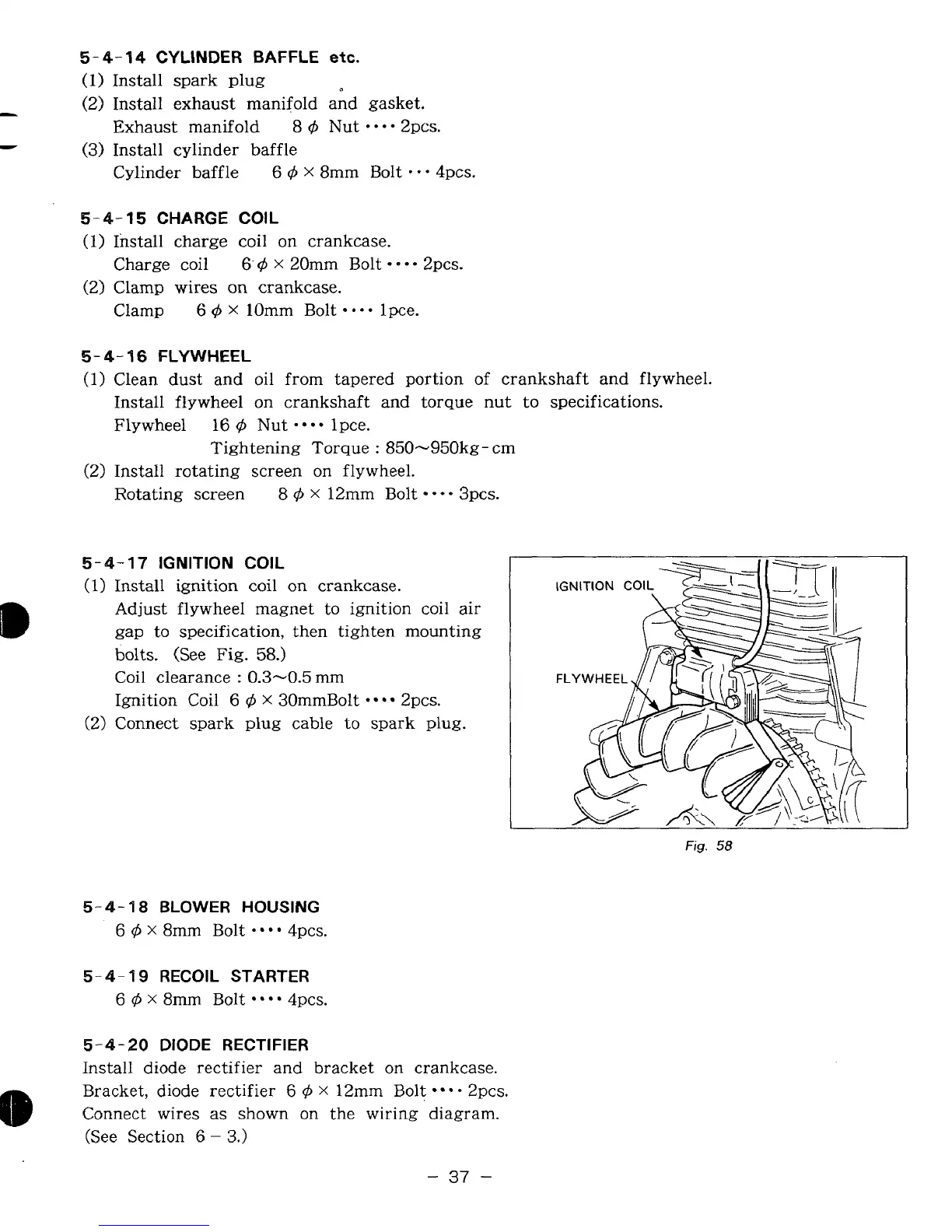

5-4-14
CYLINDER
BAFFLE
etc.
(1)
Install spark plug
L
(2)
Install exhaust manifold and gasket.
Exhaust manifold
8
4
Nut
****
2pcs.
Cylinder baffle
6
4
X
8mm Bolt
*-*
4pcs.
I
(3)
Install cylinder baffle
5-4-15
CHARGE
COIL
(1)
Install charge coil on crankcase.
(2)
Clamp wires
on
crankcase.
Charge coil
6.4
X
20mm Bolt
*
0-
2pcs.
Clamp
6
4
X
lOmm Bolt
*--
1 pce.
5-
4-
I6
FLYWHEEL
(1)
Clean dust and oil from tapered portion of crankshaft and flywheel.
Install flywheel on crankshaft and torque nut to specifications.
Flywheel
16
4
Nut
-
lpce.
Tightening Torque
:
850-950kg- cm
(2)
Install rotating screen on flywheel.
Rotating screen
8
4
X
12mm Bolt
-*-
3pcs.
5-
4-
17
IGNITION COIL
(1)
Install ignition coil
on
crankcase.
Adjust flywheel magnet
to
ignition coil air
gap to specification, then tighten mounting
bolts.
(See
Fig.
58.)
Coil clearance
:
0.3-0.5
mm
Ignition Coil
6
q5
X
30mmBolt
*
2pcs.
(2)
Connect spark plug cable
to
spark plug.
Fig.
58
5-4-
18
BLOWER
HOUSING
6
q5
x
8mm Bolt
*
4pcs.
5-
4-
4
9
RECOIL STARTER
6
4
x
8mm Bolt 4pcs.
5-4-20
DIODE
RECTIFIER
Install diode rectifier and bracket
on
crankcase.
Bracket, diode rectifier
6
@
X
12mm Bolt
*
2pcs.
Connect wires as shown on the wiring diagram.
(See Section
6
-
3.)
-
37
-
