Robin EH30V User Manual

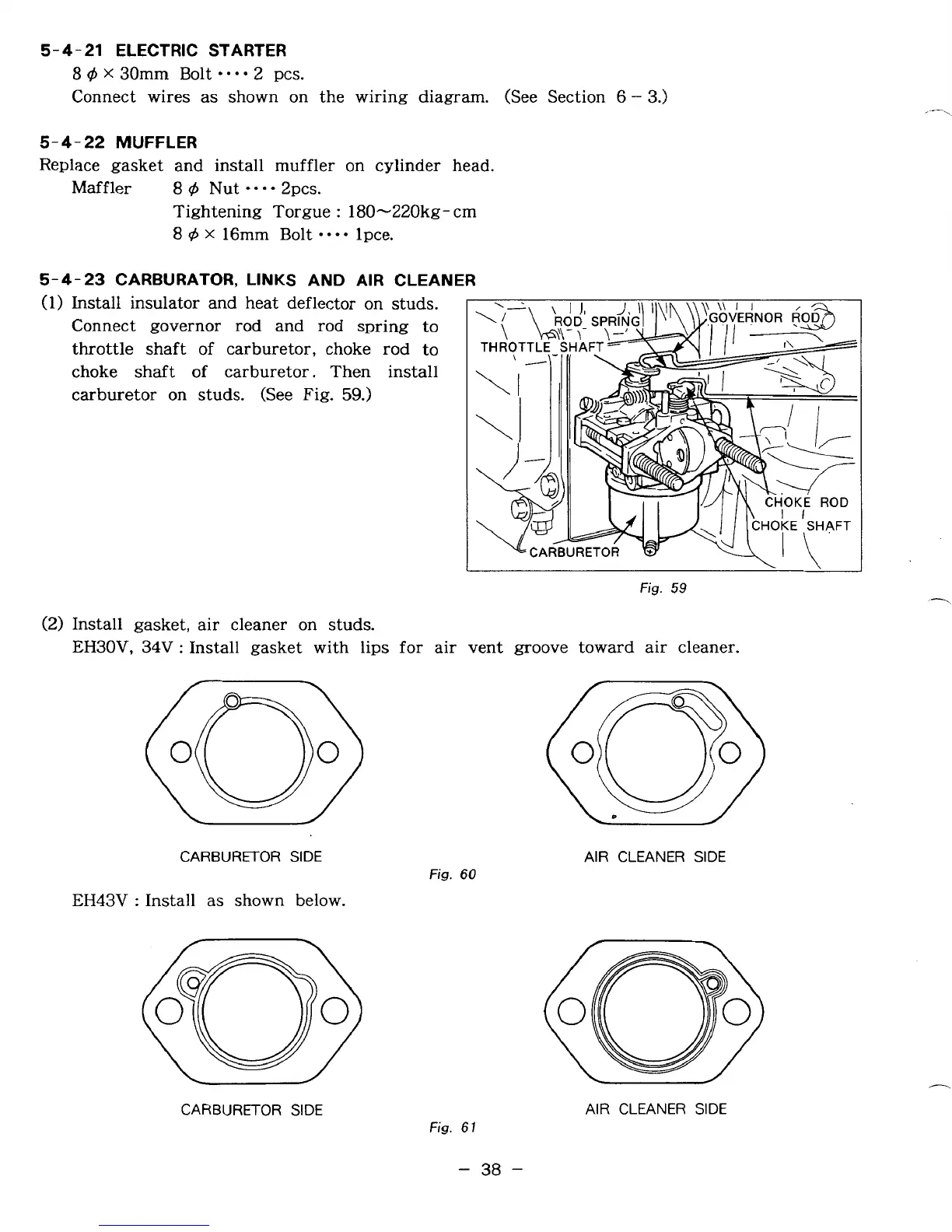

5-4-21 ELECTRIC STARTER
8 4 X 30mm Bolt *-e* 2 pcs.
Connect wires as shown on the wiring diagram. (See Section
6 - 3.)
5-4-22 MUFFLER
Replace gasket and install muffler on cylinder head.
Maffler
8 Nut *--* 2pcs.
Tightening Torgue
: 180--220kg- cm
8 q5 X 16mm Bolt **** 1 pce.
5-4-23 CARBURATOR, LINKS AND AIR CLEANER
(1) Install insulator and heat deflector on studs.
Connect governor rod and rod spring to
throttle shaft of carburetor, choke rod to
choke shaft
of carburetor. Then install
carburetor on studs. (See
Fig. 59.)
Fig. 59
(2) Install gasket, air cleaner on studs.
EH30V, 34V : Install gasket with lips for air vent groove toward air cleaner.
CARBURETOR SIDE
EH43V : Install as shown below.
Fig. 60
AIR CLEANER SIDE
”-.
CARBURETOR SIDE
AIR CLEANER SIDE
Fig. 61
- 38 -
