Robin EY15 User Manual

Order I Item
Remarks
Tool 1
Procedunx
8
(1) Remove the governor lever from the
Governor lever
and the relative
6$1 x 25 mm bolt: 1 pce.
parts
governor lever shaft.
(2) Remove the governor rod and rod
spring from the carburetor.
Just loosen the bolt,
out the bolt.
or 10 mm spanner
unnecessary to take
10 mm box spanner
9
(1) Remove the carburetor from the cylinder
Carburetor
~ ~~
portion of the crankcase.

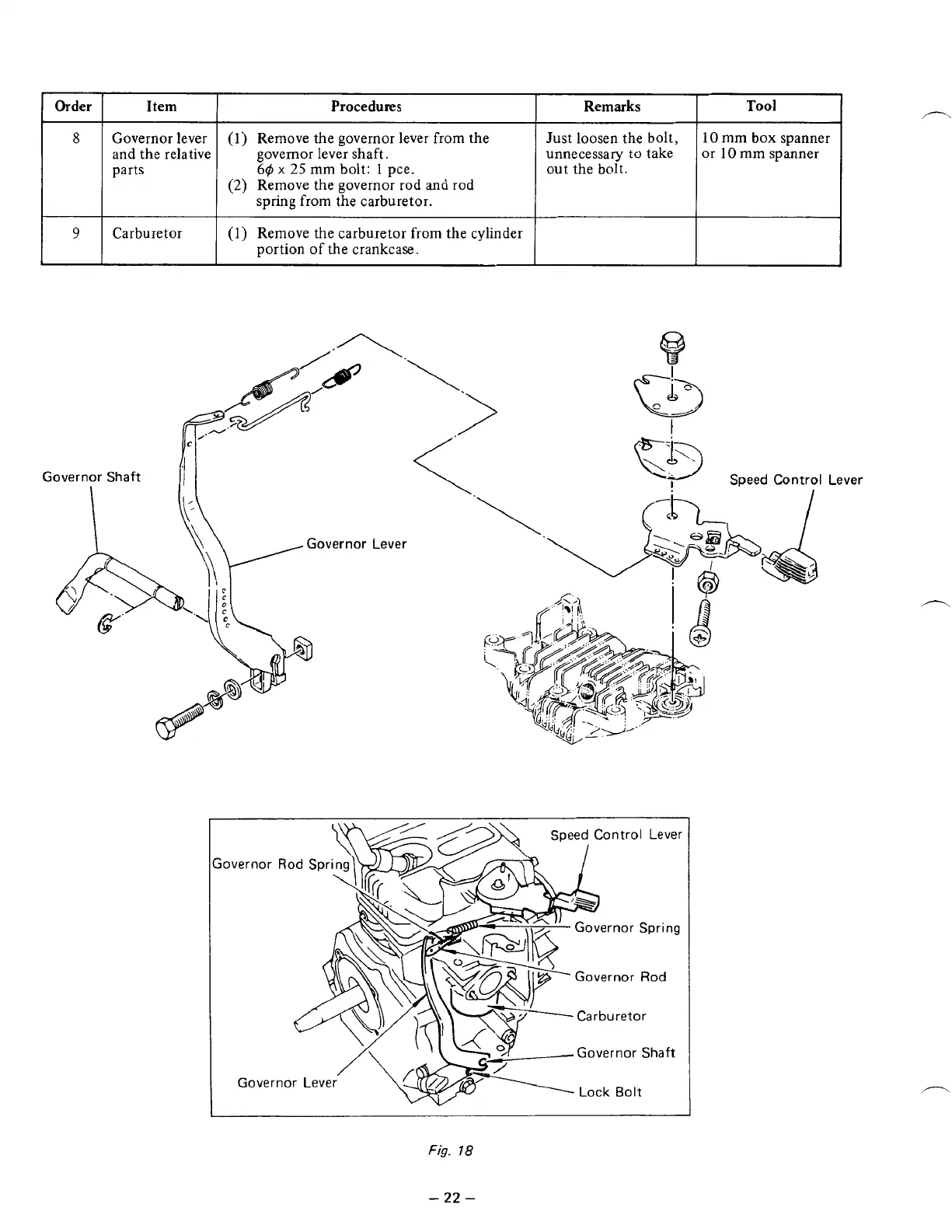

Fig. 18
Lever
- 22 -

Robin EY15 Specifications

General

Ignition System	Transistorized magneto
Starting System	Recoil starter
Compression Ratio	8.5:1
Fuel System	Carburetor
Engine Type	Single cylinder, 4-stroke, air-cooled
Displacement	143 cc
Maximum Torque	9.3 Nm / 3000 rpm
Dry Weight	13.5 kg
Lubrication	Splash
