Robin EY15 User Manual

18
Tappet
J
L
Oil Seal Guide
Main Bearing
Cover

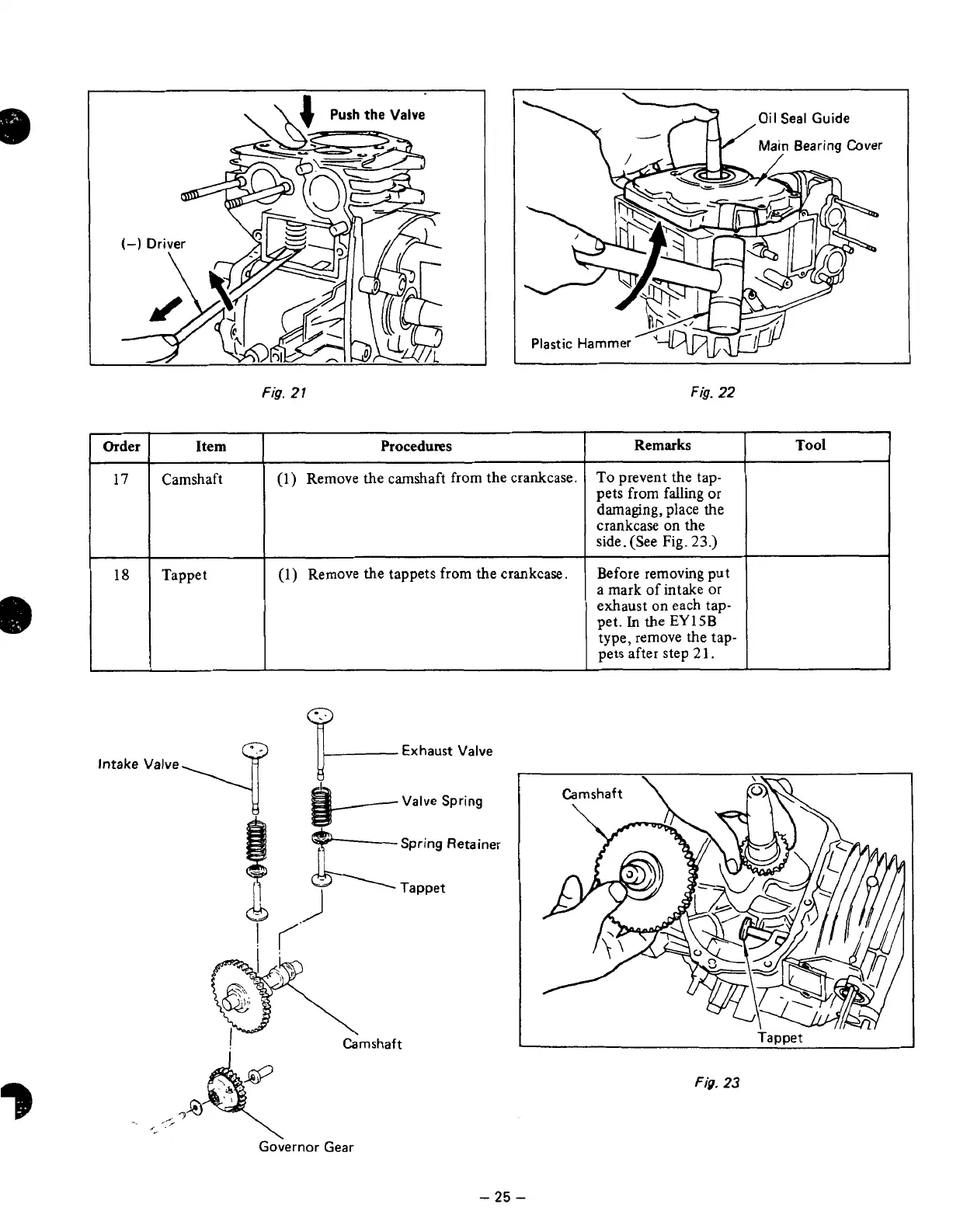

Fig. 21 F&. 22
Procedules
(1) Remove the camshaft from the crankcase.
~ ~~ ~~~~ ~~~~~
(1) Remove the tappets from the crankcase.
~~ ~
Remarks Tool
To prevent the tap-
pets from falling
or
damaging, place the
crankcase
on the
side. (See Fig. 23.)
Before removing put
a mark
of intake or
exhaust on each tap-
pet.
In the EY 15B
type, remove the tap-
pets after step
2 1.
9 1- Exhaust Valve
Intake Valve,
I
! Camshaft
Valve Spring
Spring Retainer
Tappet
I Tappet
Fig. 23
GoGernor Gear
- 25 -

Robin EY15 Specifications

General

Ignition System	Transistorized magneto
Starting System	Recoil starter
Compression Ratio	8.5:1
Fuel System	Carburetor
Engine Type	Single cylinder, 4-stroke, air-cooled
Displacement	143 cc
Maximum Torque	9.3 Nm / 3000 rpm
Dry Weight	13.5 kg
Lubrication	Splash
