Robin EY15 User Manual

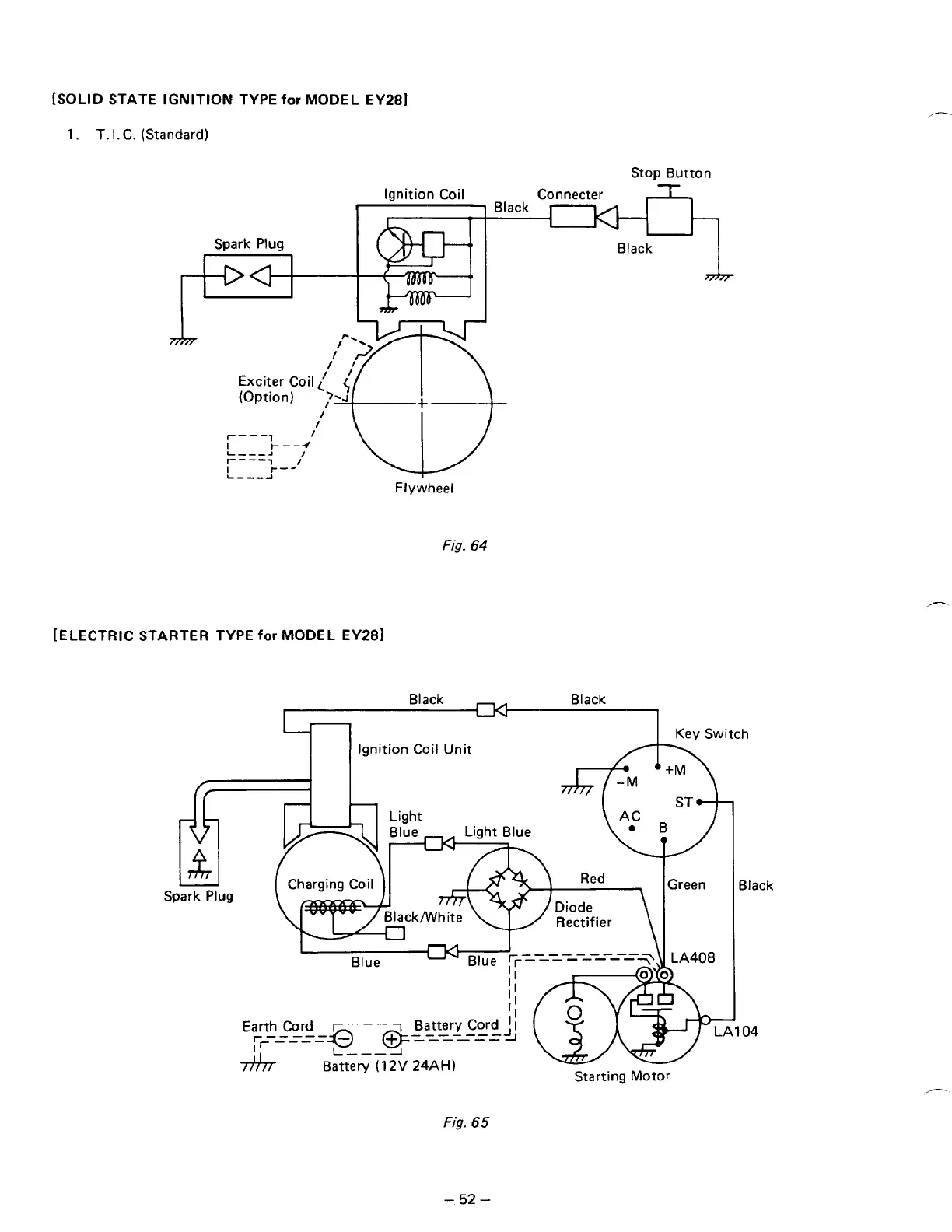

[SOLID STATE IGNITION TYPE for MODEL EY28l
1. T. I. C. (Standard)
Stop Button
Ignition Coil Connecter
l-
Spark Plug Black
rrm
c
Exciter Coil
(Option)
Flywheel
Fig. 64
[ELECTRIC STARTER TYPE for MODEL EY281
Key Switch
Ignition
Coil Unit
S
Black
r-----
I""
77h Battery (12V 24AH)
Starting Motor
/"-
Fig. 65
- 52 -

Robin EY15 Specifications

General

Ignition System	Transistorized magneto
Starting System	Recoil starter
Compression Ratio	8.5:1
Fuel System	Carburetor
Engine Type	Single cylinder, 4-stroke, air-cooled
Displacement	143 cc
Maximum Torque	9.3 Nm / 3000 rpm
Dry Weight	13.5 kg
Lubrication	Splash
