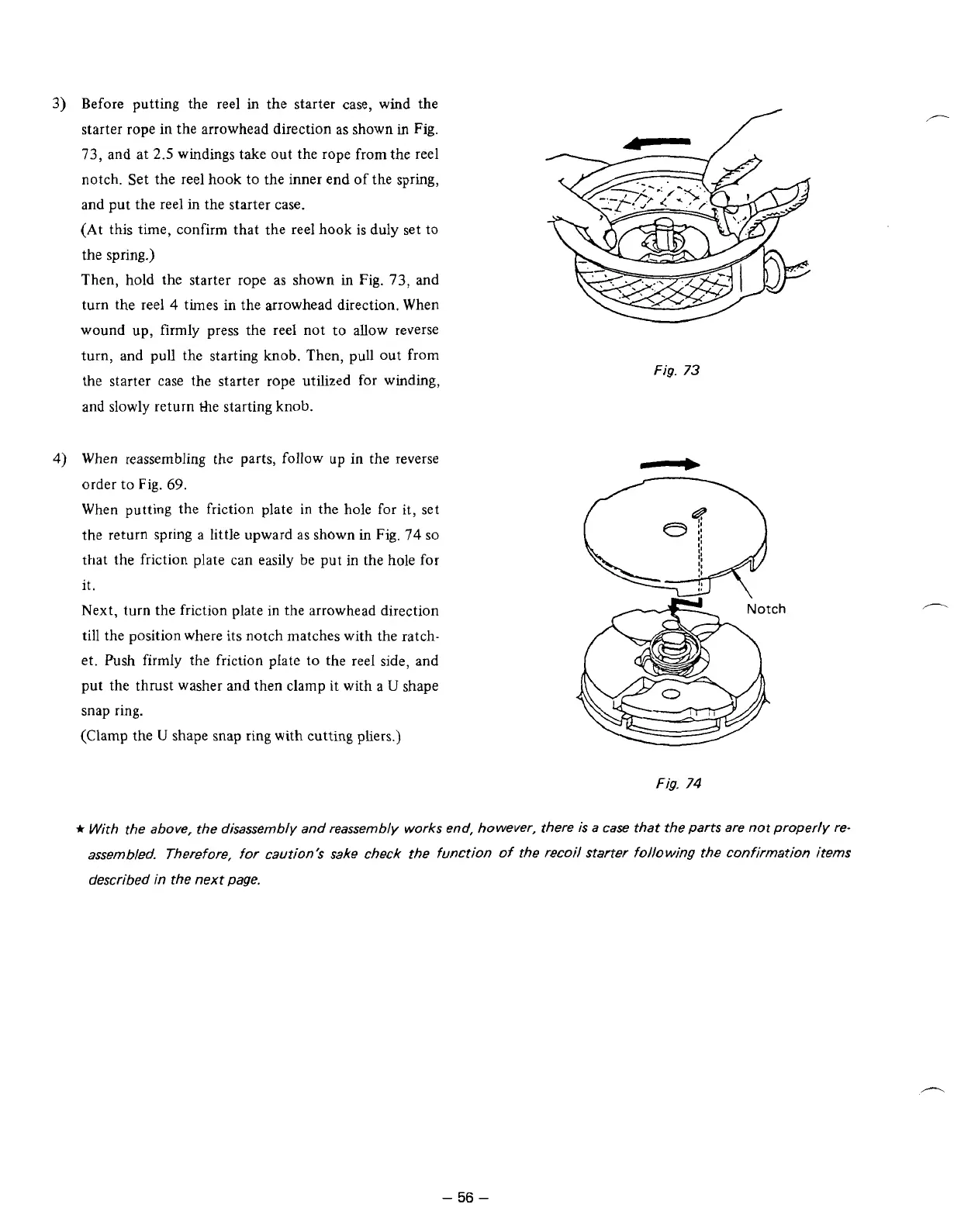

3)
Before putting the reel in the starter case, wind the
starter rope in the arrowhead direction as shown
in
Fig.
73,
and at
2.5
windings take out the rope from the reel
notch. Set the reel
hook
to the inner end of the spring,
and put the reel in the starter case.
(At this time, confirm that the reel hook is duly set
to
the spring.)
Then, hold the starter rope as shown
in
Fig.
73,
and
turn the reel
4
times in the arrowhead direction, When
wound up, firmly press the reel not
to
allow reverse
turn, and pull the starting knob. Then, pull out from
the starter case the starter rope utilized for winding,
and slowly return khe starting
knob.
4)
When reassembling the parts, follow up in the reverse
order
to
Fig.
69.
When putting the friction plate in the hole for it, set
the return spring
a
little upward as shown in
Fig.
74
so
that the friction plate can easily be put in the hole for
it.
Next, turn the friction plate in the arrowhead direction
till the position where its notch matches with the ratch-
et. Push firmly the friction plate to the reel side, and
put the thrust washer and then clamp it with
a
U
shape
snap ring.
(Clamp the
U
shape snap ring with cutting pliers.)
Fig.
73
Fig.
74
t
With the above, the disassembly and reassembly
works
end, however, there
is
a
case that the parts are
not
properly re-
assembled. Therefore, for caution's sake check the function
of
the recoil starter following the confirmation items
described
in
the next page.
-
