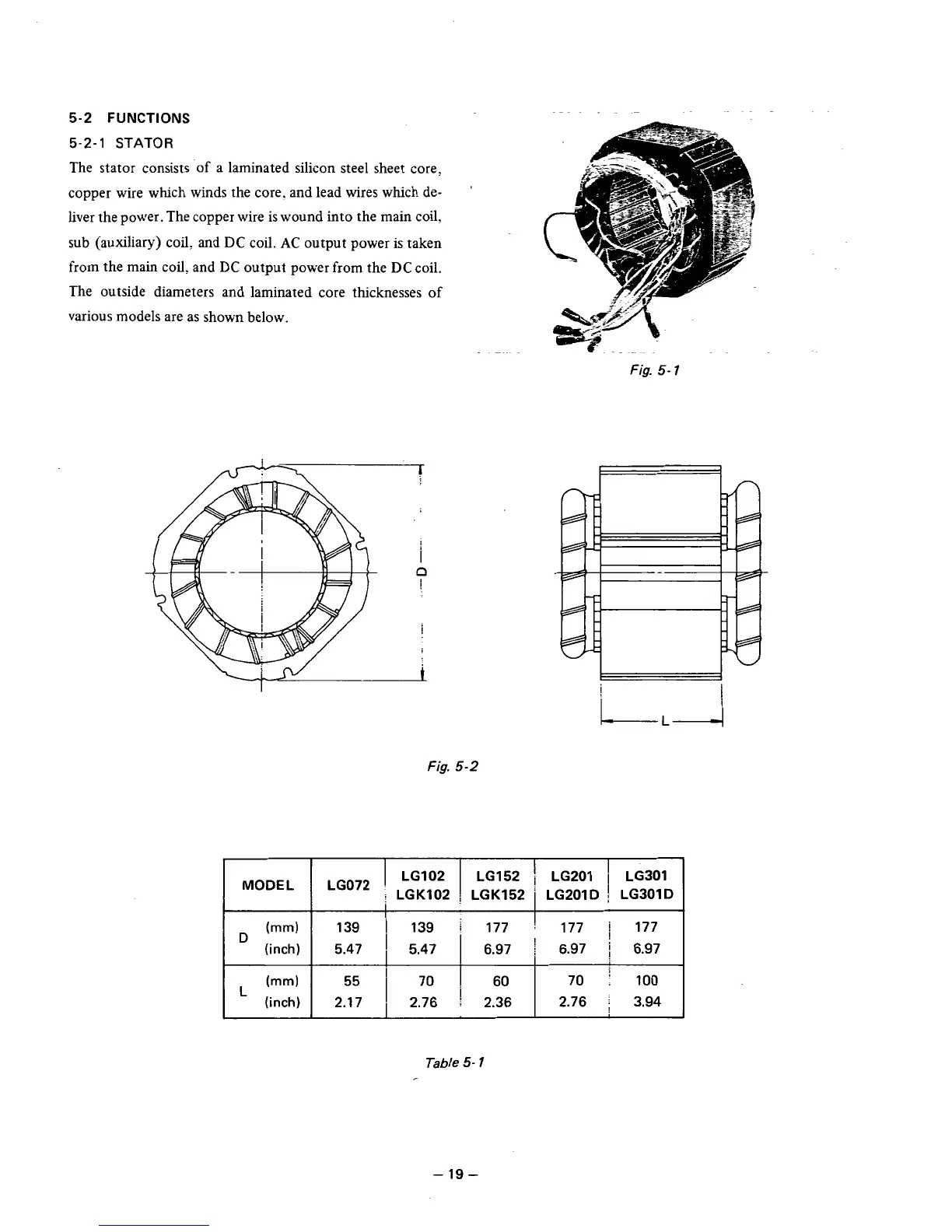

5-2
FUNCTIONS
5-2-1
STATOR
The stator consists of a laminated silicon steel sheet core,
copper wire which winds the core. and lead wires w-hich de-
liver the power. The copper wire is wound into the main coil.
sub (auxiliary) coil, and
DC
coil.
AC
output power is taken
from the main coil, and
DC
output power from the
DC
coil.
The outside diameters and laminated core thicknesses
of
various models are as shown below.
Fig.
5-
1
Fig.
5-2
LG102 LG152
1
LG201
I
LG301
LG072
1
LGKlO2
1
LGK152
I
LG2OlD
I
LG301 D
D
(mm)
5.47
I
5.47
1
6.97 6.97 6.97
(inch)
139 139
'
177
1
177
i
177
2.76 3.94 2.17
i
2.76 2.36
(inch)
70
:
100
55 70 60
(mm)
1
L
Table
5-
1
-
19
-
