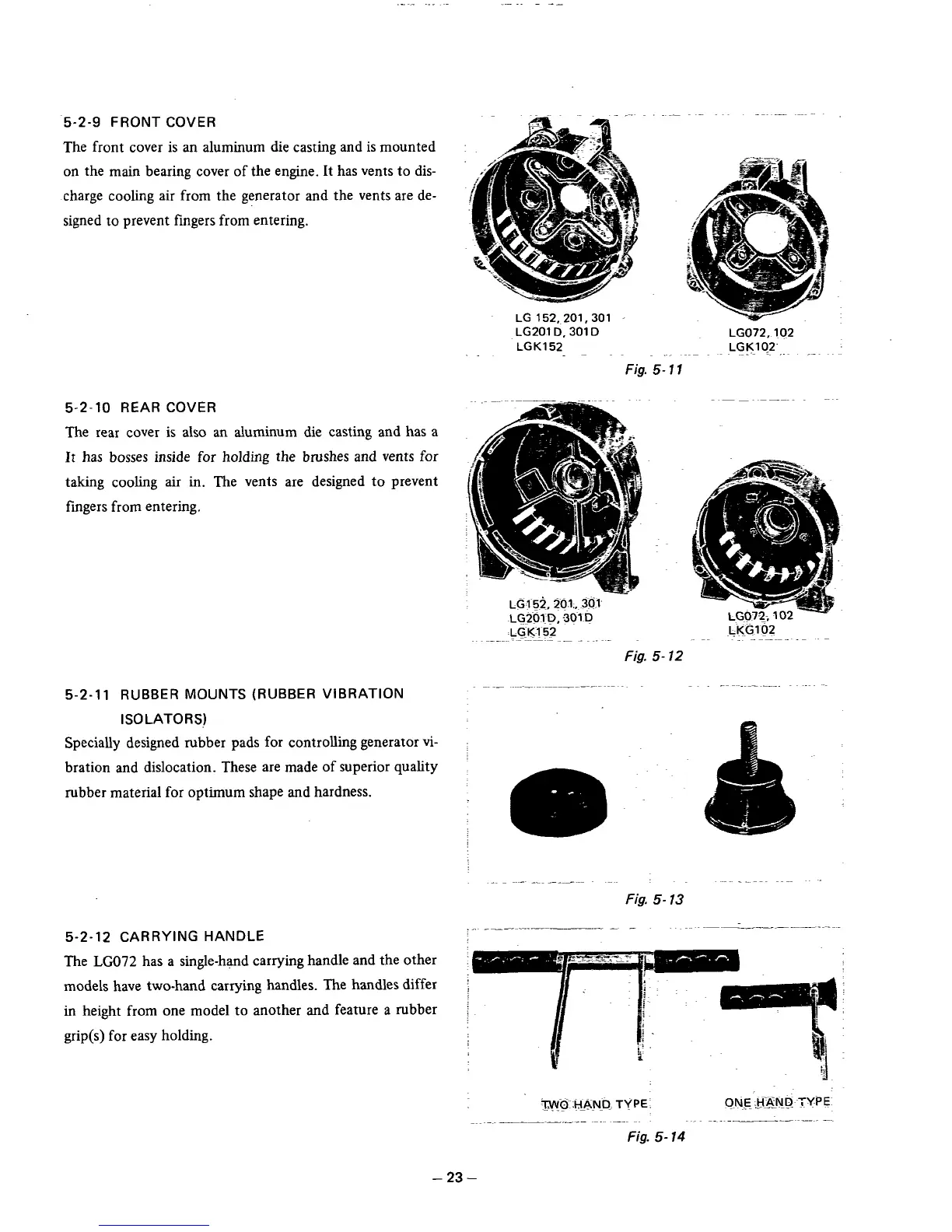

5-2-9
FRONT
COVER
The front cover is an aluminum die casting and is mounted
on the main bearing cover
of
the engine. It has vents to dis-
charge cooling air from the generator and the vents are de-
signed to prevent fingers from entering.
5-2-10 REAR COVER
The rear cover is also an aluminum die casting
and
has
a
It
has bosses inside for holding the brushes and vents for
taking cooling air in. The vents are designed to prevent
fingers from entering.
5-2-11 RUBBER MOUNTS (RUBBER VIBRATION
I
SO
LATO
RS)
Specially designed rubber pads for controlling generator
vi-
bration and dislocation. These are made of superior quality
rubber material for optimum shape and hardness.
5-2-12 CARRYING HANDLE
The
LC072
has a single-hand carrying handle and the other
models have two-hand carrying handles. The handles differ
in height from one model to another and feature a rubber
grip(s) for easy holding.
~~201
D,
3oi
D
LG072.102
Fig.
5-
1
I
LG K152
LGKl02'
.
~ ~~ ~
.~
~"
~
..~
"
-23-
