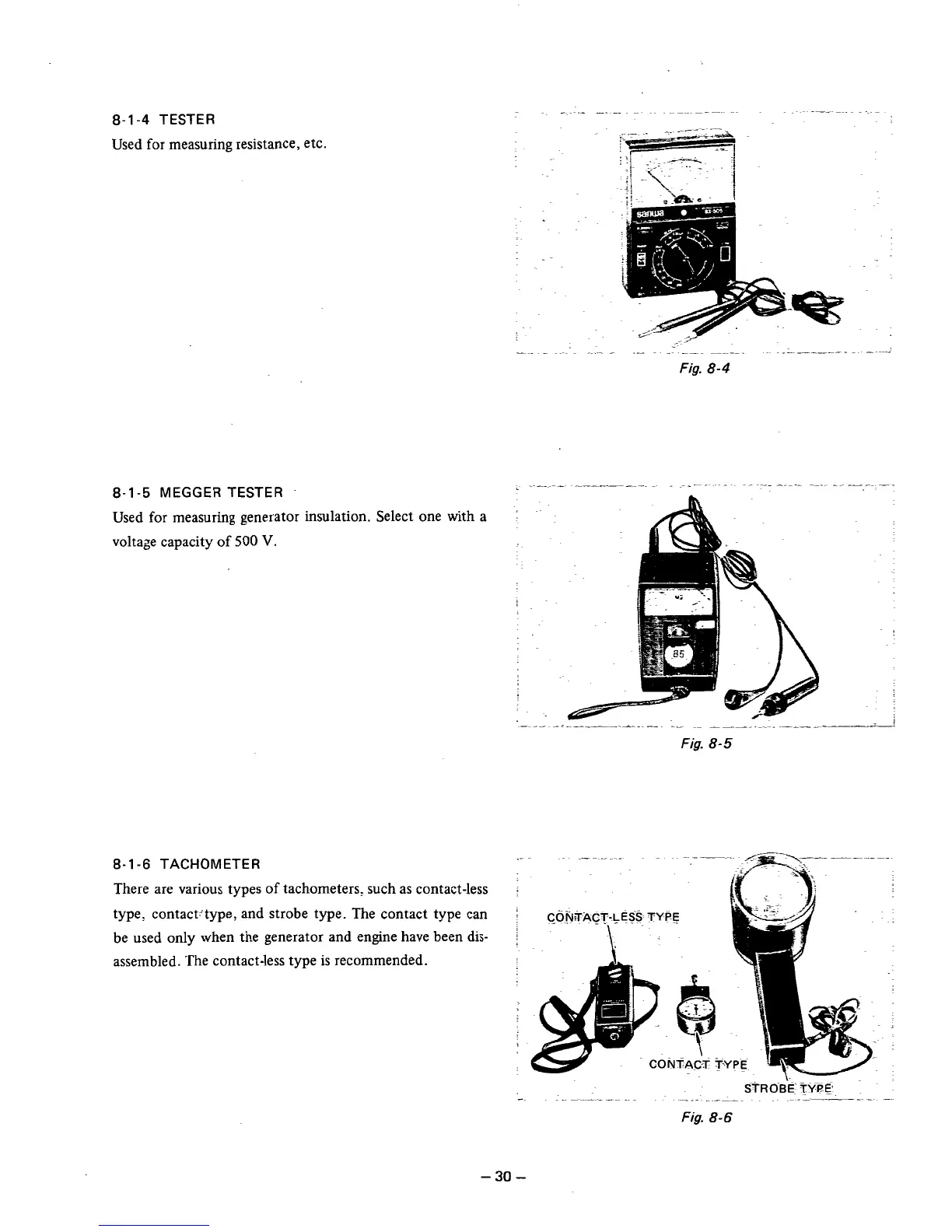

8-1 -4 TESTER
Used for measuring resistance, etc.
8-1-5 MEGGER TESTER
Used for measuring generator insulation. Select one with a :
voltage capacity of 500 V.
8-1 -6 TACHOMETER
.. ~
~ . ~ ~ ~
" -~ " "
~~ . -% ;.
There are various types of tachometers, such as contact-less -
type: contactftype, and strobe type. The contact type can j C_@JTA~TLE~$ TYPE
be used only when the generator and engine have been dis-
assembled. The contact-less type
is recommended.
Q =. 3. - -
\
C0NTisC.T TYPE
\
STRO-BE- IYP-E
-~
~ .~ ~~ - - ~~ .~ ~ " .. .~ -~ -~ ~ - -
Fig. 8-6
-30 -
