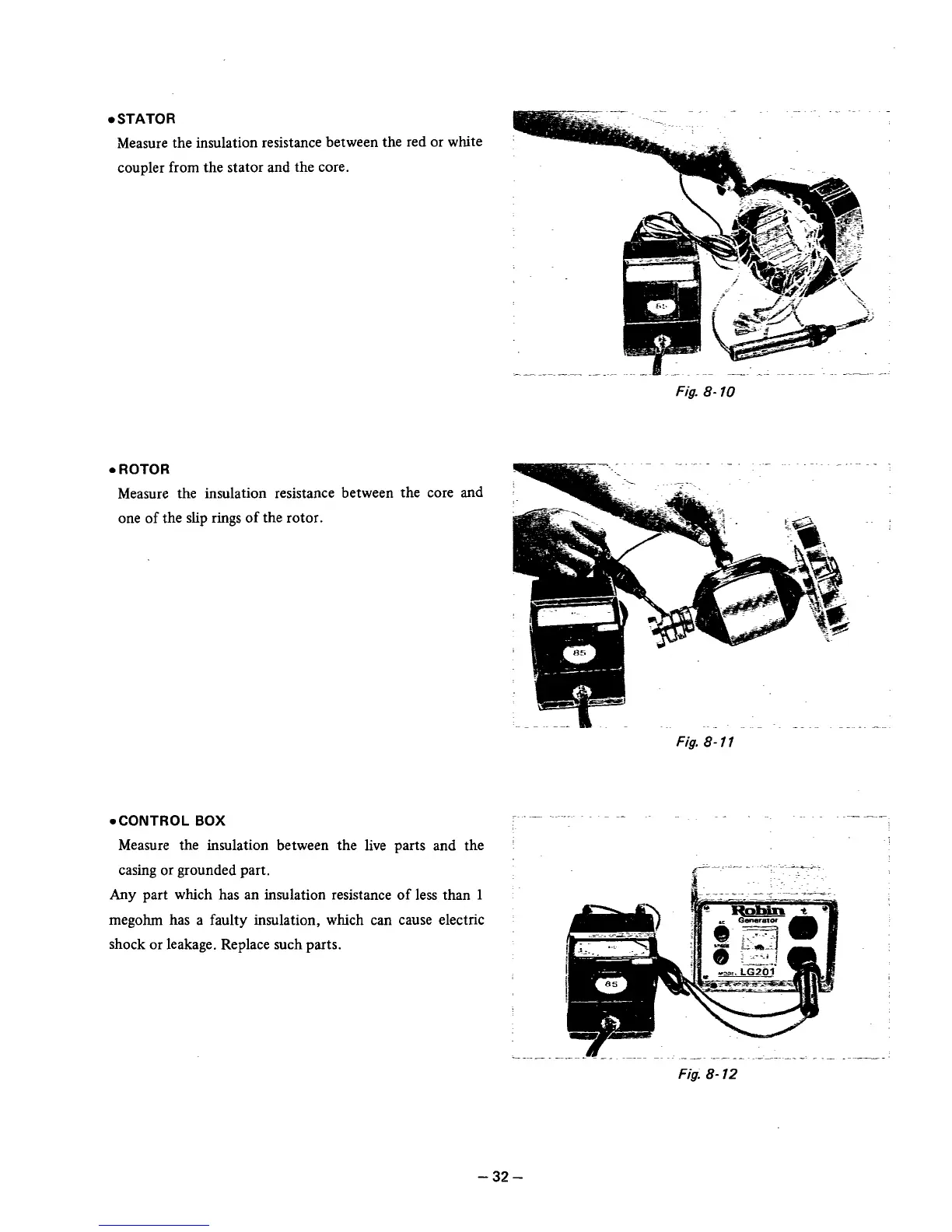

STATOR
Measure the insulation resistance between the red or white
coupler from the stator and the core.
0
ROTOR
Measure the insulation resistance between the core and
one of the slip rings
of
the rotor.
*CONTROL
BOX
.
.
~-
~~~~~..
~ ~ ~~ ~ ~
~.
.
~ ~ ~
Measure the insulation between the live parts and the
:
casing or grounded part.
i~-
=
~=
=
.~
_~~c
"
.g
.~
~~
Any
part which has an insulation resistance of less than
1
megohm has a faulty insolation, which can cause electric
shock or leakage. Replace such parts.
Fig.
8-
12
-32
-
