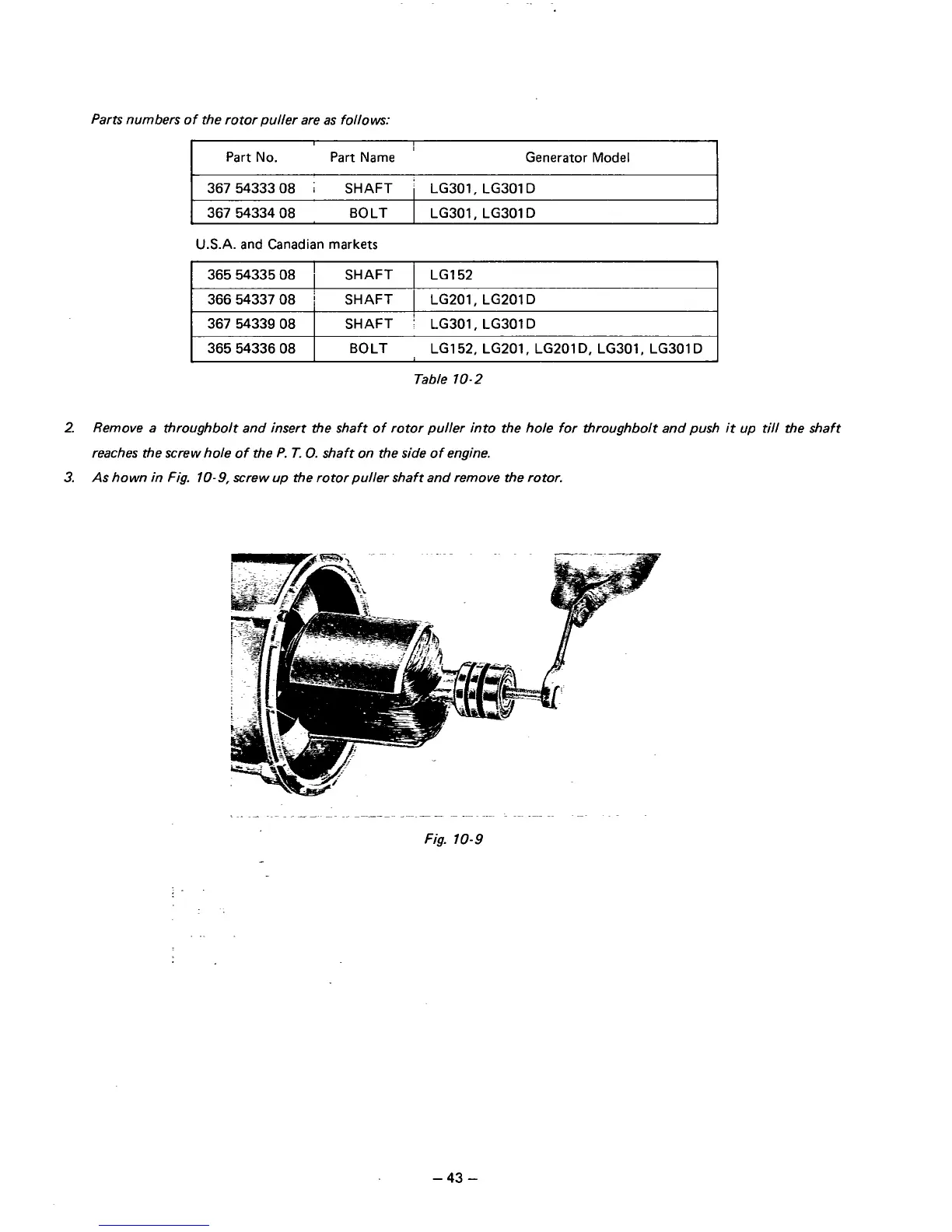

Parts numbers of the rotor puller are as follows:
I Part NO. Part Name
;
Generator Model
I
367 54333 08 I SHAFT LG301, LG301 D
367 54334 08 BOLT LG301, LG301 D
U.S.A. and Canadian markets
I 365 54335 08 I SHAFT I LG152 I
I 366 54337 08 j SHAFT I LG201, LG201 D I
I 367 54339 08 I SHAFT LG301, LG301 D I
3655433608 BOLT LG152, LG201, LG201D, LG301, LG301 D
Table 10-2
2. Remove a throughbolt and insert the shaft of rotor puller into the hole for throughbolt and push it up till the shaft
reaches the screw hole of the
P. T. 0. shaft on the side of engine.
3. As hown in Fig. 10-9, screw up the rotor puller shaft and remove the rotor.
~
Fig. 10-9
-
-43 -
