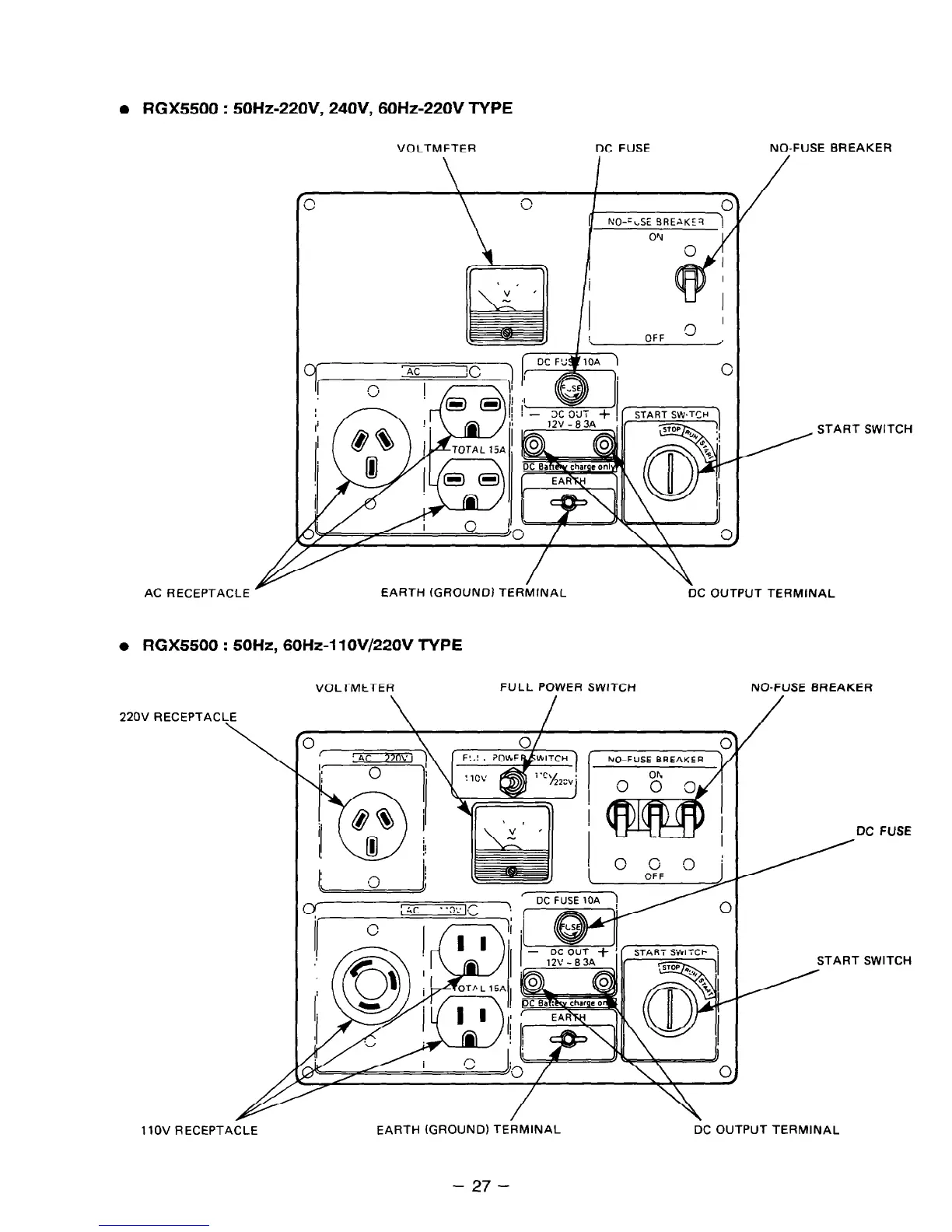

l RGX5500 : 50Hz-220V, 24OV, 6OHz-220V TYPE
AC RECEPTACLE
k
VOLTMETER
DC FUSE
START SW.TCH
EARTH (GROUNDI TERMINAL
DC OUTPUT TERMINAL
22OV RECEPTACLE
\
NO-FUSE BREAKER
/
START SWITCH
l RGX5500 : 50Hz, 6OHz-1 lOV/22OV TYPE
VOLTMETER
FULL POWER SWITCH NO-FUSE BREAKER
/
DC FUSE
START SWITCH
11OV RECEPTACLE
EARTH (GROUND) TERMINAL
DC OUTPUT TERMINAL
- 27 -
