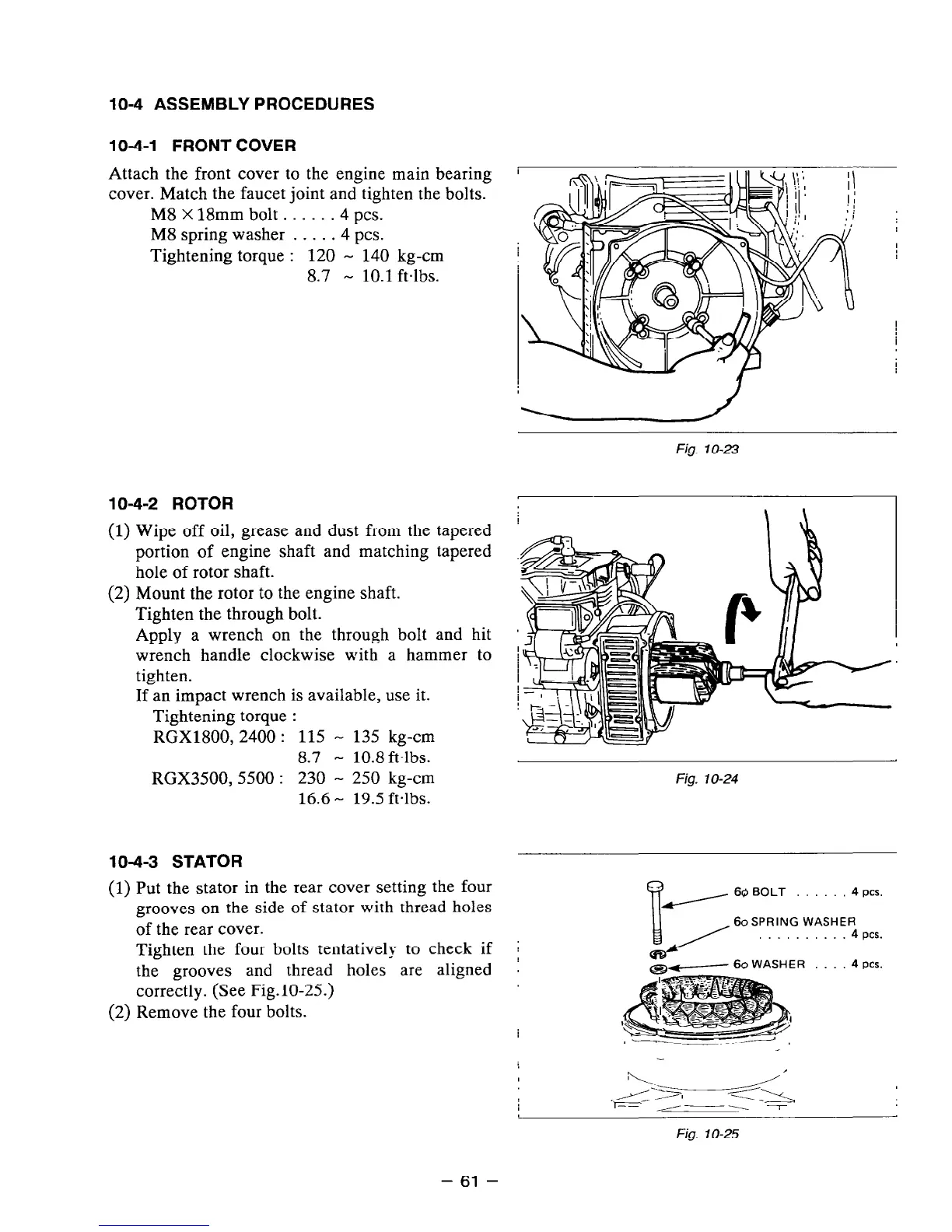

10-4 ASSEMBLY PROCEDURES
10-4-l FRONT COVER
Attach the front cover to the engine main bearing
cover. Match the faucet joint and tighten the bolts.
M8
X
18mm bolt . . . . . .4 PCS.
M8 spring washer . . . . . 4 PCS.
Tightening torque : 120 - 140 kg-cm
8.7
- 10.1 ftalbs.
1 O-4-2 ROTOR
(1) Wipe off oil, grease and dust from the tapered
portion of engine shaft and matching tapered
hole of rotor shaft.
(2) Mount the rotor to the engine shaft.
Tighten the through bolt.
Apply a wrench on the through bolt and hit
wrench handle clockwise with a hammer to
tighten.
If an impact wrench is available, use it.
Tightening torque :
RGX1800,2400 : 115 - 135 kg-cm
8.7
- 10.8 ft.lbs.
RGX3500,5500 : 230 - 250 kg-cm
16.6 - 19.5 ftmlbs.
10-4-3 STATOR
(1) Put the stator in the rear cover setting the four
grooves on the side of stator with thread holes
of the rear cover.
Tighten the four bolts tentatively to check if
the grooves and thread holes are aligned
correctly. (See Fig.lO-25.)
(2) Remove the four bolts.
Fig. lo-23
Fig. lo-24
60 BOLT 4 PCS.
60 SPRING WASHER
. . . . .
4
PCS.
60 WASHER . . 4
PCS.
Fig. 1 O-25
- 61 -
