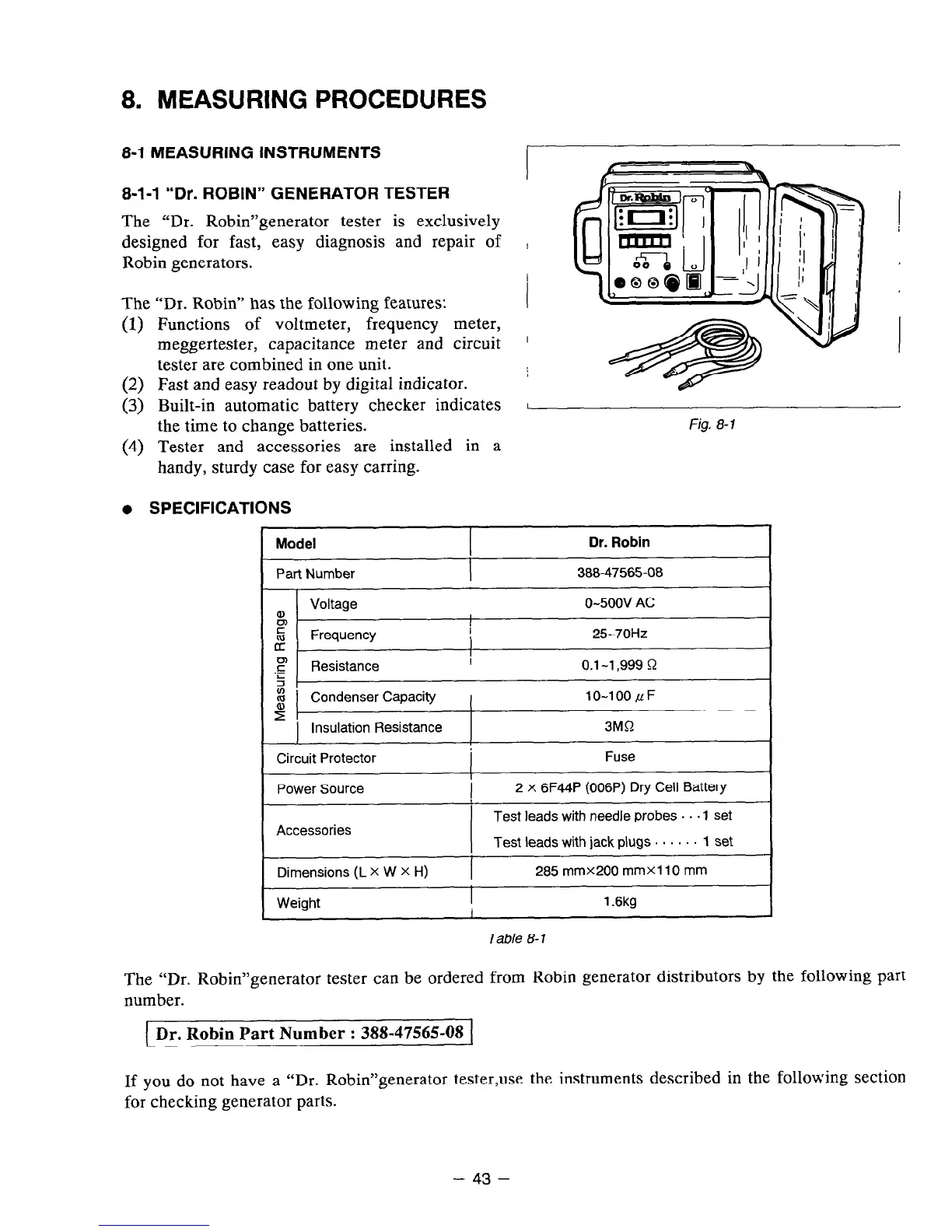

8. MEASURING PROCEDURES
8-l MEASURING INSTRUMENTS
8-l-l “Dr. ROBIN” GENERATOR TESTER
The “Dr. Robin”generator tester is exclusively
designed for fast, easy diagnosis and repair of !
Robin generators.
I
The “Dr. Robin” has the following features:
(1) Functions of voltmeter, frequency meter,
meggertester, capacitance meter and circuit ’
tester are combined in one unit.
(2) Fast and easy readout by digital indicator.
’
(3) Built-in automatic battery checker indicates L
the time to change batteries.
(4) Tester and accessories are installed in a
handy, sturdy case for easy carring.
Fig. 8-J
l SPECIFICATIONS
Model
I
Dr. Robin
Part Number
388-47565-08
o-5ooV AC
b
Voltage
5 Frequency
2%70Hz
E
I
:: Resistance
0.1-l ,999 4
‘C
2 .
9
Condenser Capacity lo-100 fiF
zz
j Insulation Resistance
3MR
Circuit Protector
Power Source
Fuse
2 x 6F44P (006P) Dry Cell Battery
Test leads with needle probes . . .l set
Accessories
Test leads with jack plugs . . . . . . 1 set
Dimensions (L X W X H)
i
285 mmx200 mmxll0 mm
Weight
I
1.6kg
Table 8- 1
The “Dr. Robin”generator tester can be ordered from Robin generator distributors by the following part
number.
Dr. Robin Part Number : 388-47565-08
If you do not have a “Dr. Robin”generator tester,use the instruments described in the following section
for checking generator parts.
- 43 -
