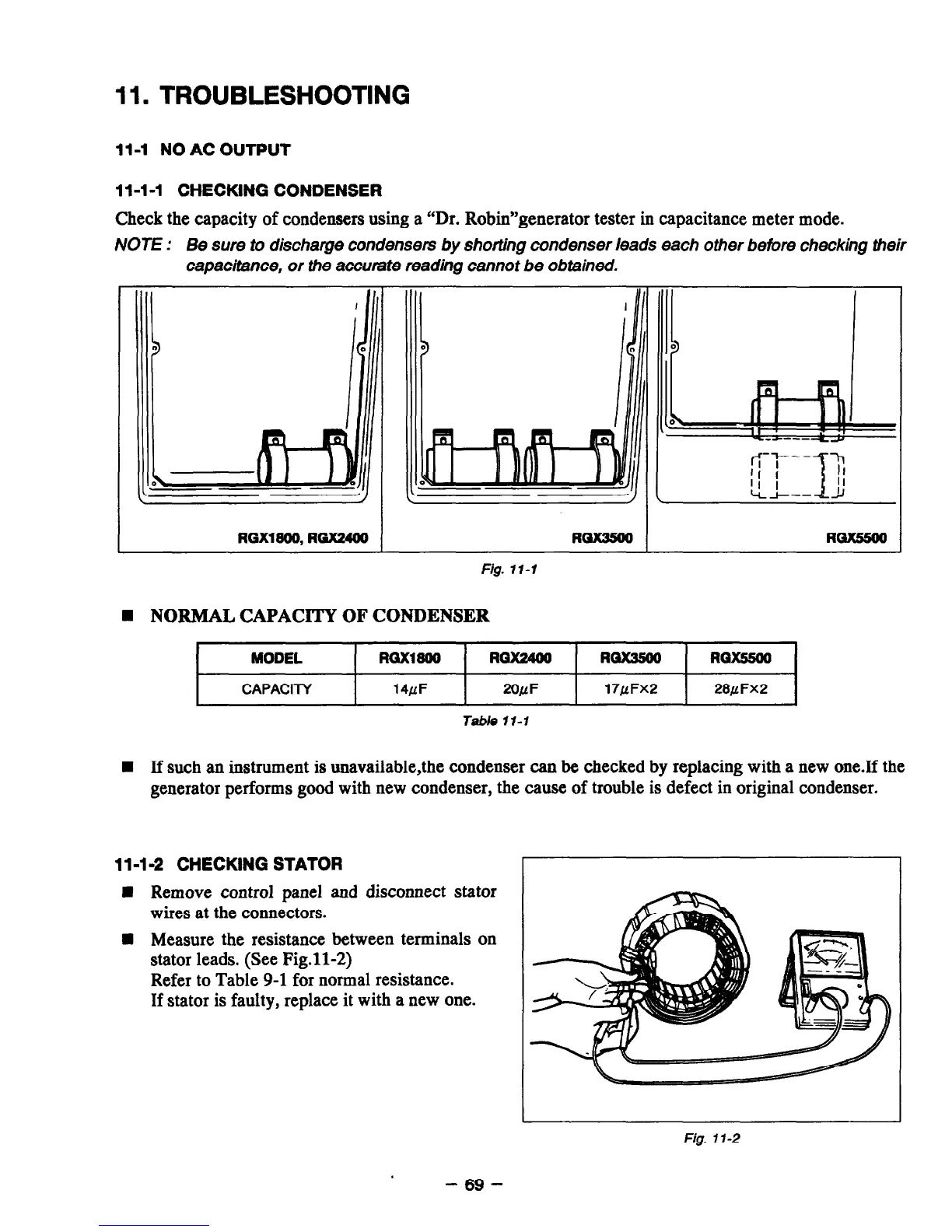

11. TROUBLESHOOTING
11-l NO AC OUTPUT
1 l-1 -1 CHECKING CONDENSER
Check the capacity of condensers using a “Dr. Robin”generator tester in capacitance meter mode.
NOTE
:
Be
sure to discharge condensers by shorting condenser leads 8aCh other befOr checking their
CapaCitanC8, or the accurate reading Cannot be obtained.
RGXlfJOO, RGX2400
Fig. 11-1
n
NORMAL CAPACITY OF CONDENSER
MODEL
RGX1800 RGX2400 RGX3!500
RGXSOO
CAPACITY
14,uF
ad=
17j~Fx2 28,uFx2
Table 11-l
n
If such an instrument is unavailable,the condenser can be checked by replacing with a new one.If the
generator performs good with new condenser, the cause of trouble is defect in original condenser.
11-l -2 CHECKING STATOR
n
Remove control panel and disconnect stator
wires at the connectors.
n
Measure the resistance between terminals on
stator leads. (See Fig.ll-2)
Refer to Table 9-l for normal resistance.
If stator is faulty, replace it with a new one.
I
Fig. 11-2
-
69
-
To Next Page
