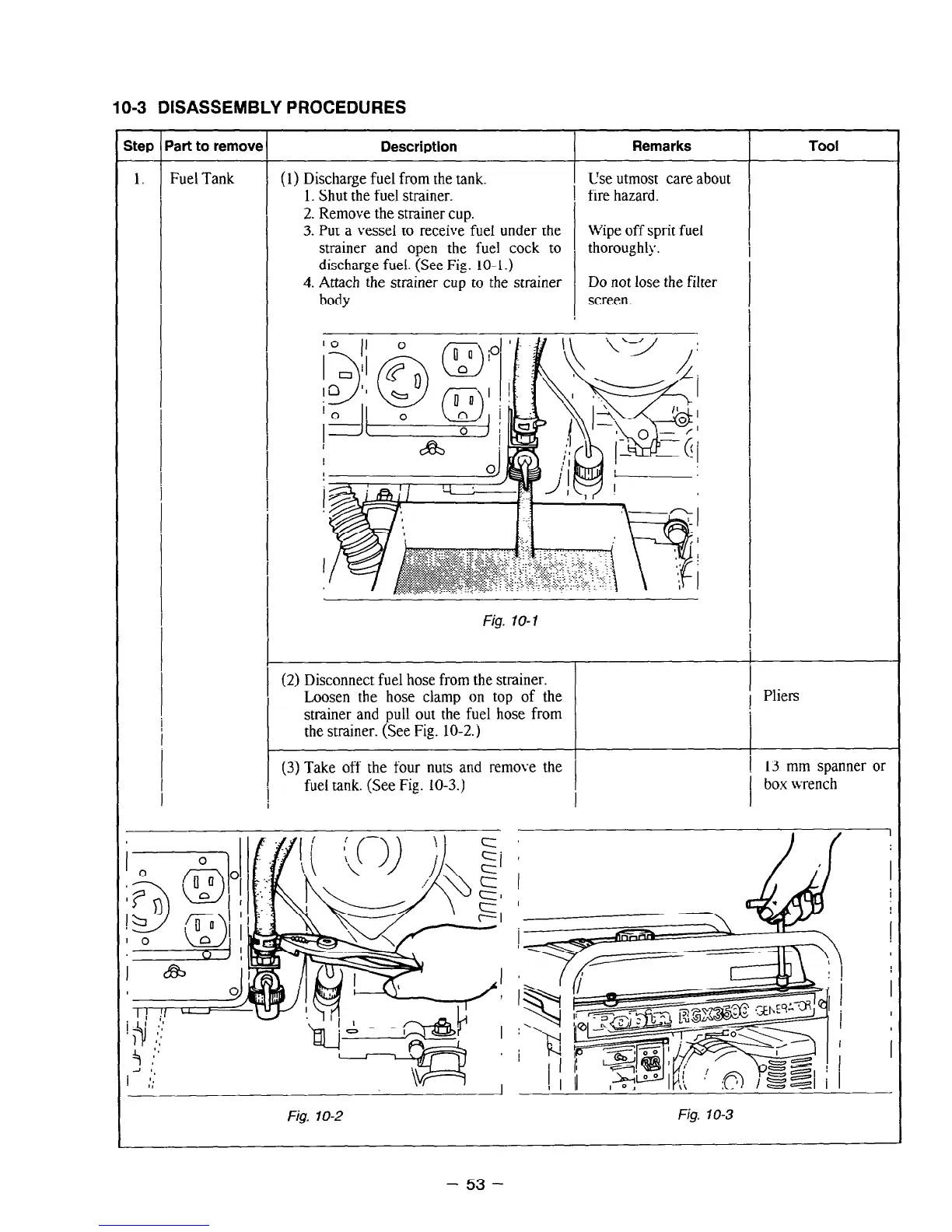

10-3 DISASSEMBLY PROCEDURES
jtep
1.
‘art to remove
Fuel Tank
Description
(1) Discharge fuel from the tank.
1. Shut the fuel strainer.
2. Remove the strainer cup.
3. Put a vessel to receive fuel under the
strainer and open the fuel cock to
discharge fuel. (See Fig. 10-l.)
4. Attach the strainer cup to the strainer
body.
t
Remarks
I
Tool
Use utmost care about 1
fire hazard.
Wipe off sprit fuel
thoroughly.
Do not lose the filter
screen.
Fig. 10-I
(2) Disconnect fuel hose from the strainer.
Loosen the hose clamp on top of the
strainer and pull out the fuel hose from
the strainer. (See Fig. 10-2. j
(3) Take off the four nuts and remove the
fuel tank. (See Fig. 10-3.)
I
1 Pliers
Fig. 10-2
Fig. 10-3
- 53 -
