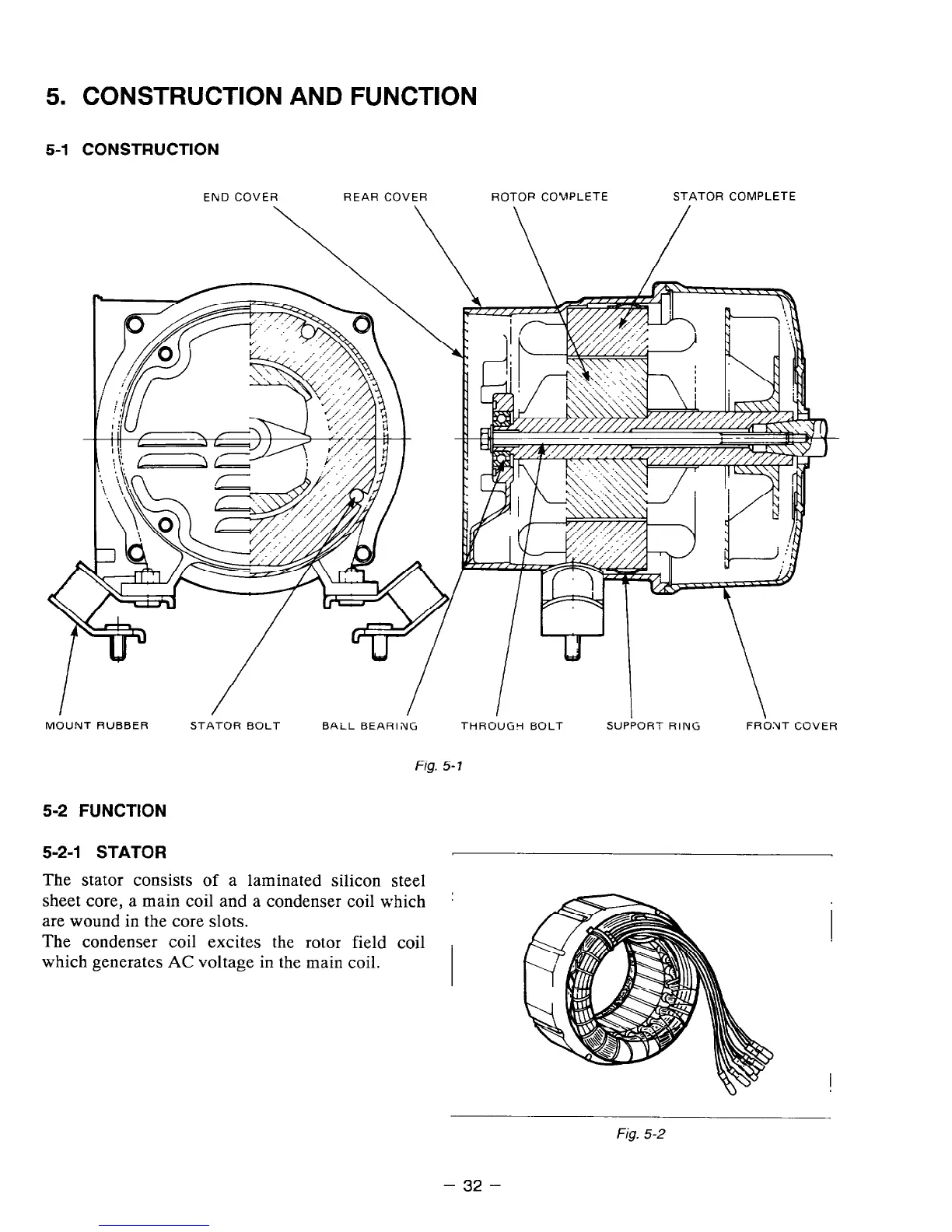

5. CONSTRUCTION AND FUNCTION
5-1 CONSTRUCTION
END COVER REAR COVER
ROTOR CO’vJPLETE
STATOR COMPLETE
\
MOUNT RUBBER
STATOR BOLT BALL BEARING
THROUGH BOLT
SUPi’ORT RING FRbNT COVER
Fig. 5-1
5-2 FUNCTION
5-2-l STATOR
The stator consists of a laminated silicon steel
sheet core, a main coil and a condenser coil which :
are wound in the core slots.
The condenser coil excites the rotor field coil
which generates AC voltage in the main coil.
Fig. 5-2
