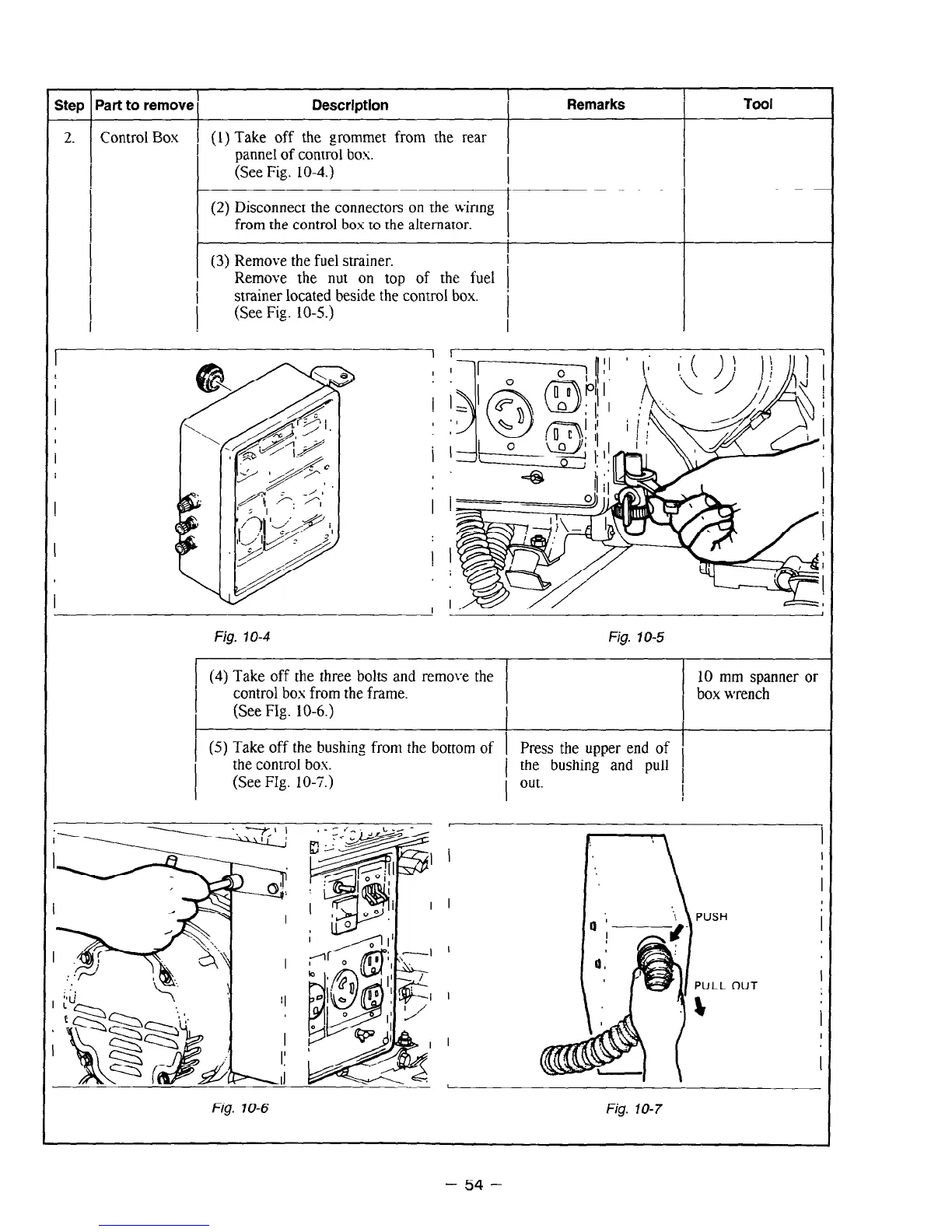

Step
2.
aart to remove
Control Box
Description
(1) Take off the grommet from the rear
pannel of control box.
(See Fig. 10-4.)
Remarks Tool
(2) Disconnect the connectors on the x+-irmg
from the control bos to the alternator.
(3) Remove the fuel strainer.
I
Remove the nut on top of the fuel 1
strainer located beside the control box.
(See Fig. 10-S.)
/
I
r
I
Fig. 10-4
Fig. IO-5
I
(4) Take off the three bolts and remove the 1
control box from the frame.
(See Fig. 10-6.)
the control box.
(See Fig. 10-Y.)
(5) Take off the bushing from the bottom of
I
Press the upper end of
i the bushing and pull
out.
Fig. 10-6
10 mm spanner or
box wrench
:
I
I
I
I
OUT
I
Fig. IO-7
- 54 -
