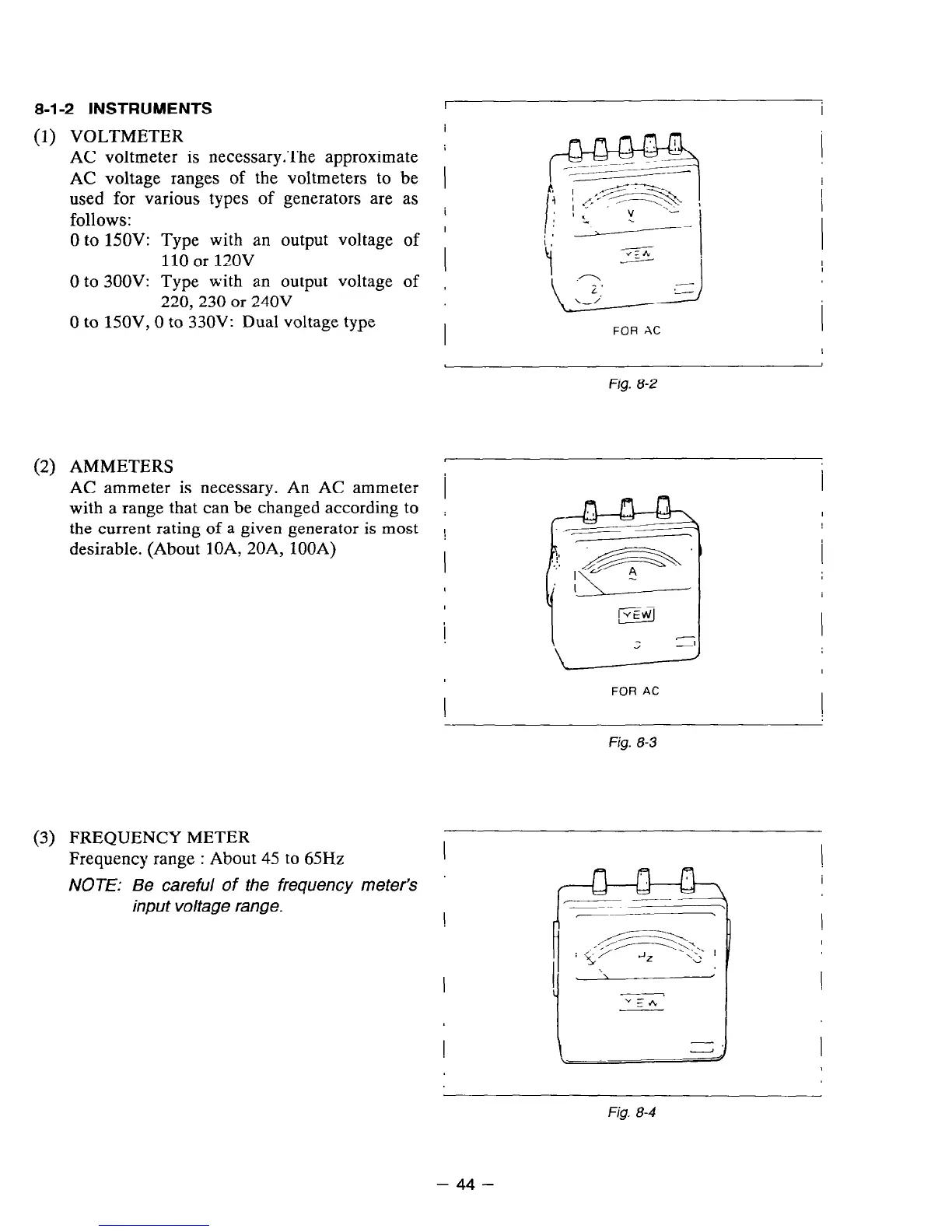

8-l -2 INSTRUMENTS
!
I
0)
VOLTMETER
I
AC voltmeter is necessary.The approximate ’
AC voltage ranges of the voltmeters to be
)
used for various types of generators are as
follows:
0 to 150V: Type with an output voltage of
110 or 120V
0 to 300V: Type with an output voltage of
220,230 or 240V
0 to 15OV, 0 to 330V: Dual voltage type
(2)
AMMETERS
AC ammeter is necessary. An AC ammeter
I
with a range that can be changed according to
:
I
the current rating of a given generator is most
desirable. (About lOA, 20A, 100A)
I
FOR AC
Fig. 8-2
FOR AC
i
Fig. 8-3
(3) FREQUENCY METER
Frequency range : About 45 to 65Hz
I
I
NOTE: Be careful of the frequency meter’s
I
input voltage range.
--
!
----
I
I
Fig. 8-4
- 44 -
