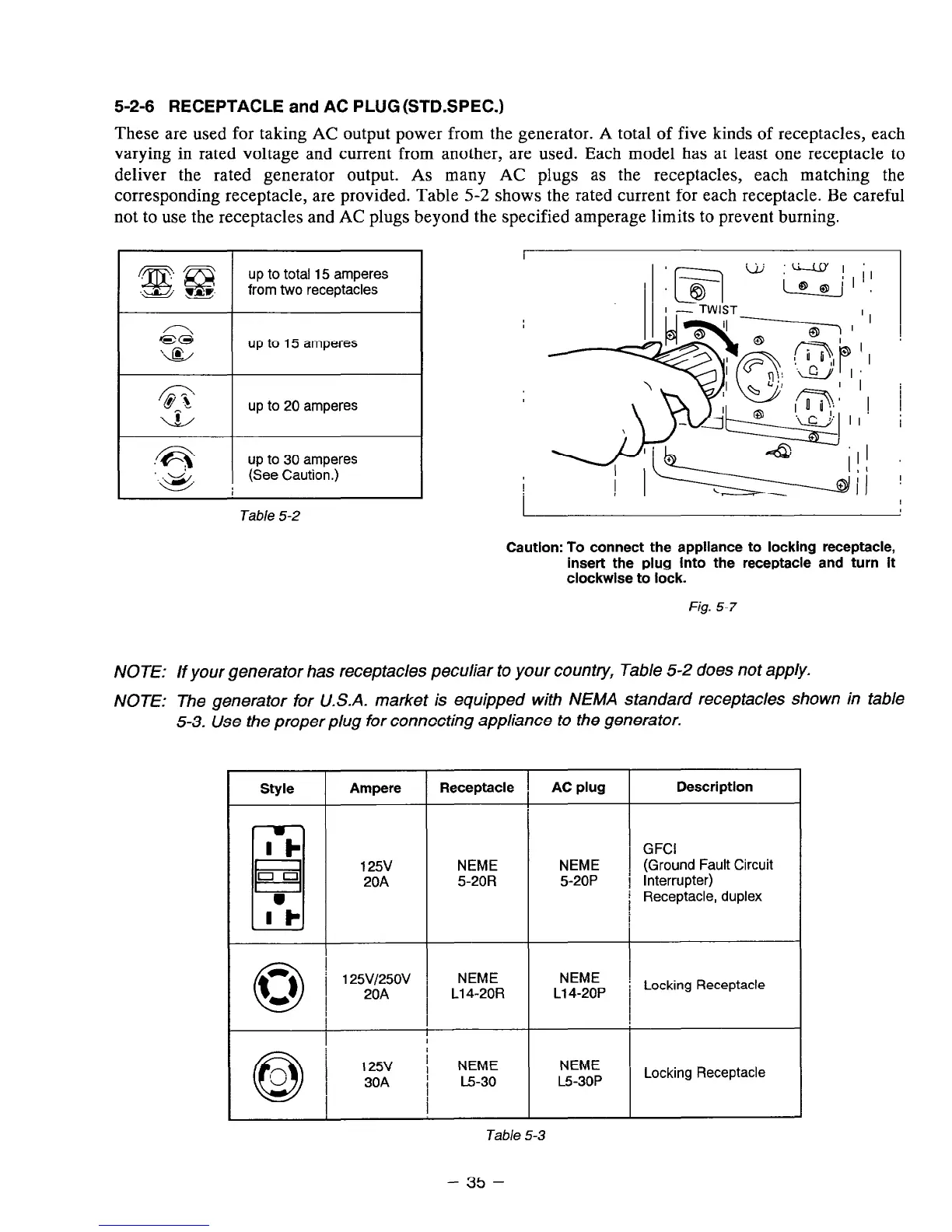

5-2-6
RECEPTACLE and AC PLUG (STDSPEC.)
These are used for taking AC output power from the generator. A total of five kinds of receptacles, each
varying in rated voltage and current from another, are used. Each model has at least one receptacle to
deliver the rated generator output. As many AC plugs as the receptacles, each matching the
corresponding receptacle, are provided. Table 5-2 shows the rated current for each receptacle. Be careful
not to use the receptacles and AC plugs beyond the specified amperage limits to prevent burning.
g&z@
up to total 15 amperes
from two receptacles
up to 15 amperes
up to 20 amperes
up to 30 amperes
(See Caution.)
Table 5-2
Caution: To connect the appliance to locking receptacle,
insert the plug into the receptacle and turn it
clockwise to lock.
Fig. 5-7
NOTE:
If your generator has receptacles peculiar to your country, Table 5-2 does not apply.
NOTE: The generator for U.S.A. market is equipped with NEMA standard receptacles shown in table
5-3. Use the proper plug for connecting appliance to the generator.
Style
Ampere Receptacle AC plug Description
125V
NEME
20A
5-20R
GFCI
NEME (Ground Fault Circuit
5-20P
i
I Interrupter)
/ Receptacle, duplex
1
125Vl25OV i
NEME NEME
20A
1 L14-20R
L14-20P
i Locking Receptacle
I
!
125V i
NEME NEME 8
30A j
L5-30 L5-3OP
Locking Receptacle
I
Table 5-3
- 35 -
