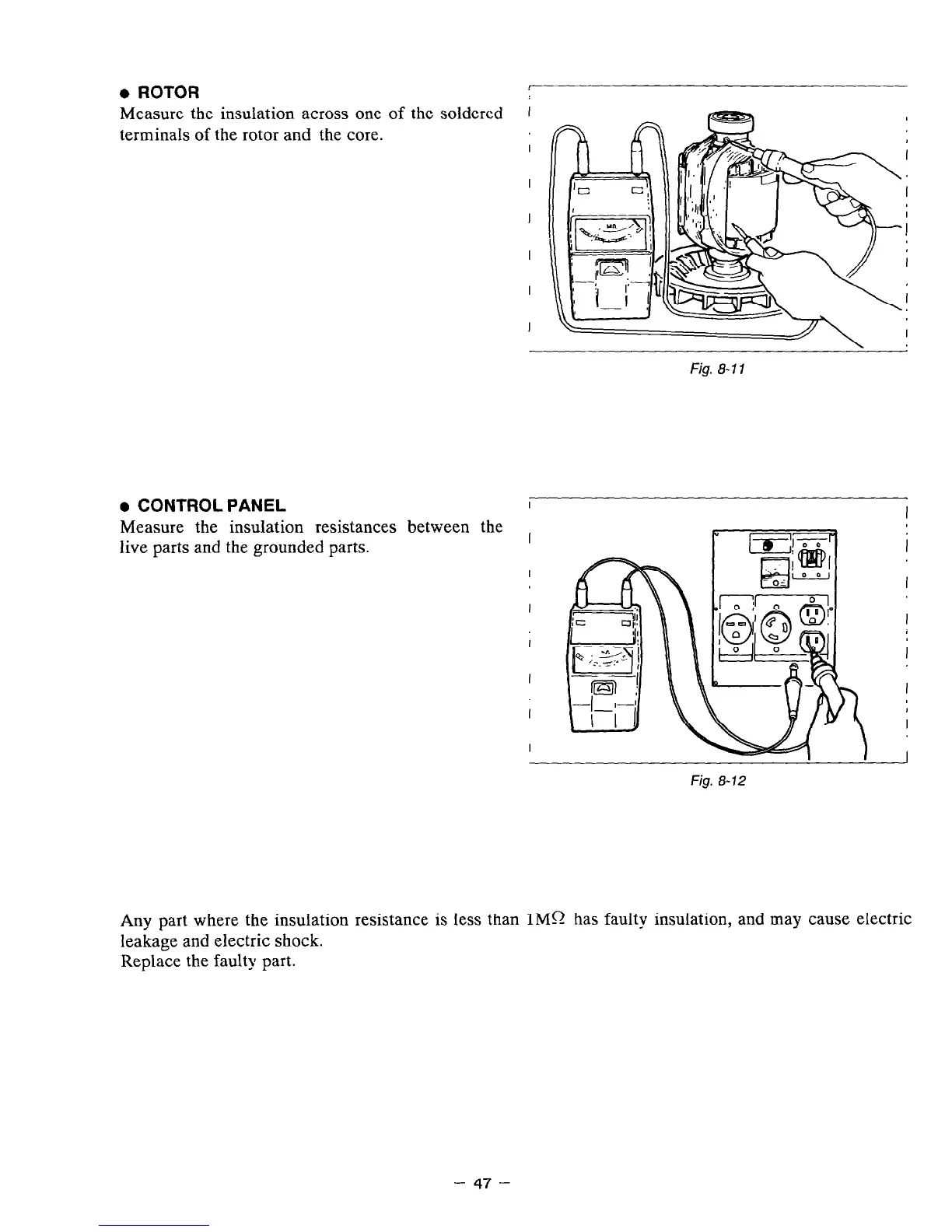

ROTOR
Measure the insulation across one of the soldered (
terminals of the rotor and the core.
I
I
l
CONTROL PANEL
Measure the insulation resistances
live parts and the grounded parts.
between the
Fig. 8-11
Fig. 8-12
Any
part where the insulation resistance is less than 1MO has faulty insulation, and
may
cause electric
leakage and electric shock.
Replace the faulty part.
