Step 1 Part to remove
I
Description
Remarks
I
Tool
I
I
I

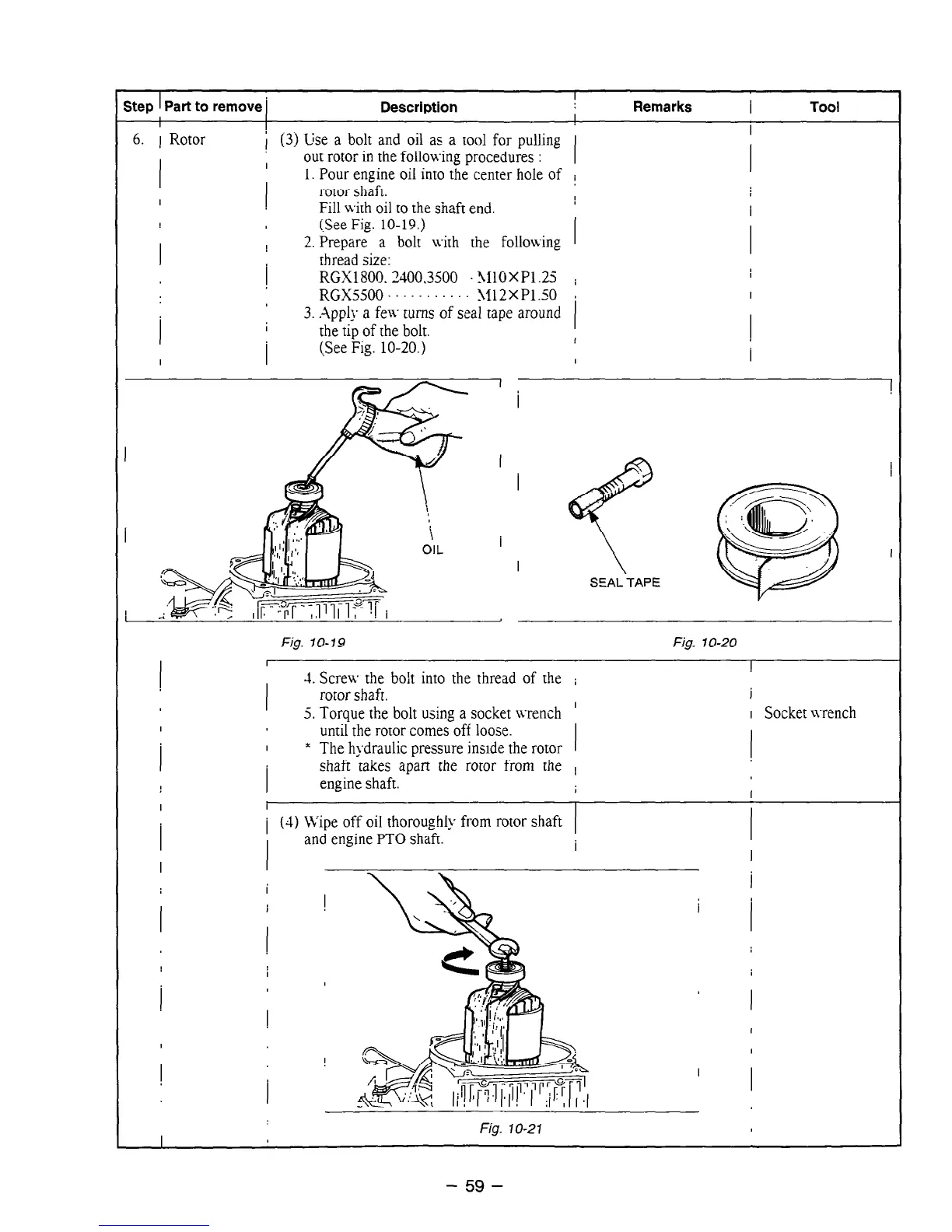

6. ! Rotor i (3) Ese a bolt and oil as a tool for pulling
I
I
I
out rotor in the following procedures :
1. Pour engine oil into the center hole of
I
i
I
rotor shaft.
I
I
!
Fill xvith oil to the shaft end.
(See Fig. 10-19.)
I
2. Prepare a bolt with the following
thread size:
I
RGx1800. 2400.3500 MlOXP1.25
RG.?i5500. \f12xP1.50
3. Apply a fen- turns of seal tape around
I
the tip of the bolt.
(,See Fig. 10-20.)
I
Fig, lo-19
Fig. 1 O-20
I
I
I
1. Screw the bob into the thread of the /
rotor shaft.
I
5. Torque the bolt using a socket wench
I
I
Socket wench
until the rotor comes off loose.
I
* The hydraulic pressure inside the rotor
I
shaft takes apart the rotor from the t
engine shaft
I
1 (4) \Vipe off oil thoroughly from rotor shaft
I
and engine PTO shaft.
I
!
I
I n
I
!
I
I
I
I
I
I
,
!
I
I
I
,
I
I
I
I
-
Fig. lo-21
- 59 -
