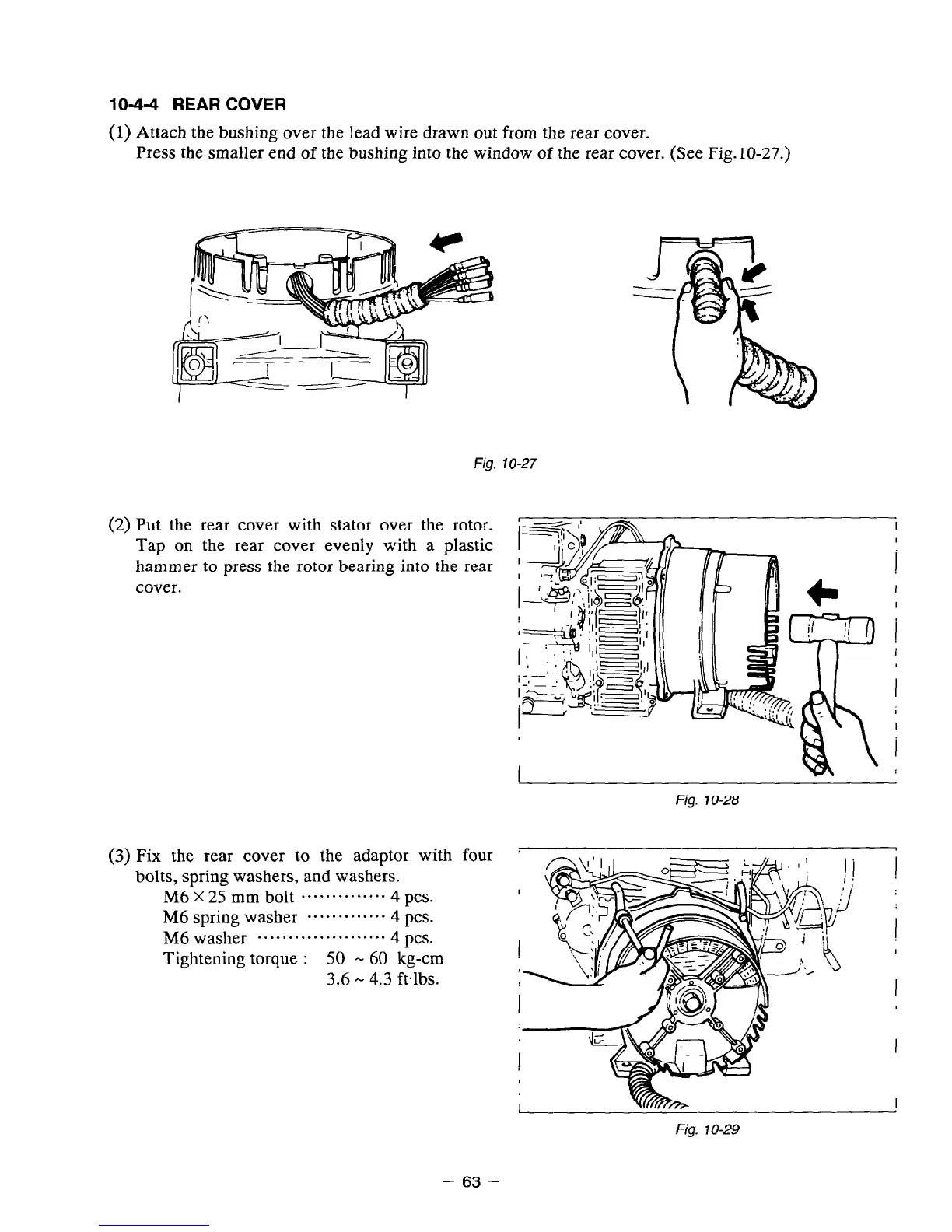

10-4-4 REAR COVER
(1) Attach the bushing over the lead wire drawn out from the rear cover.
Press the smaller end of the bushing into the window of the rear cover. (See Fig.lO-27.)
(2) Put the rear cover with stator over the rotor.
Tap on the rear cover evenly with a plastic
hammer to press the rotor bearing into the rear
cover.
(3) Fix the rear cover to the adaptor with four
bolts, spring washers, and washers.
M6
X
25 mm bolt .****..*-***** 4 PCS.
M6 spring washer ..*.*-..***.. 4 PCS.
M6 washer
. . . . . . . . . . . . ..-. . . . . . 4 pcs*
Tightening torque :
50 - 60 kg-cm
3.6 - 4.3 ftlbs.
Fig. 10-27
I
Fig. IO-28
Fig. lo-29
