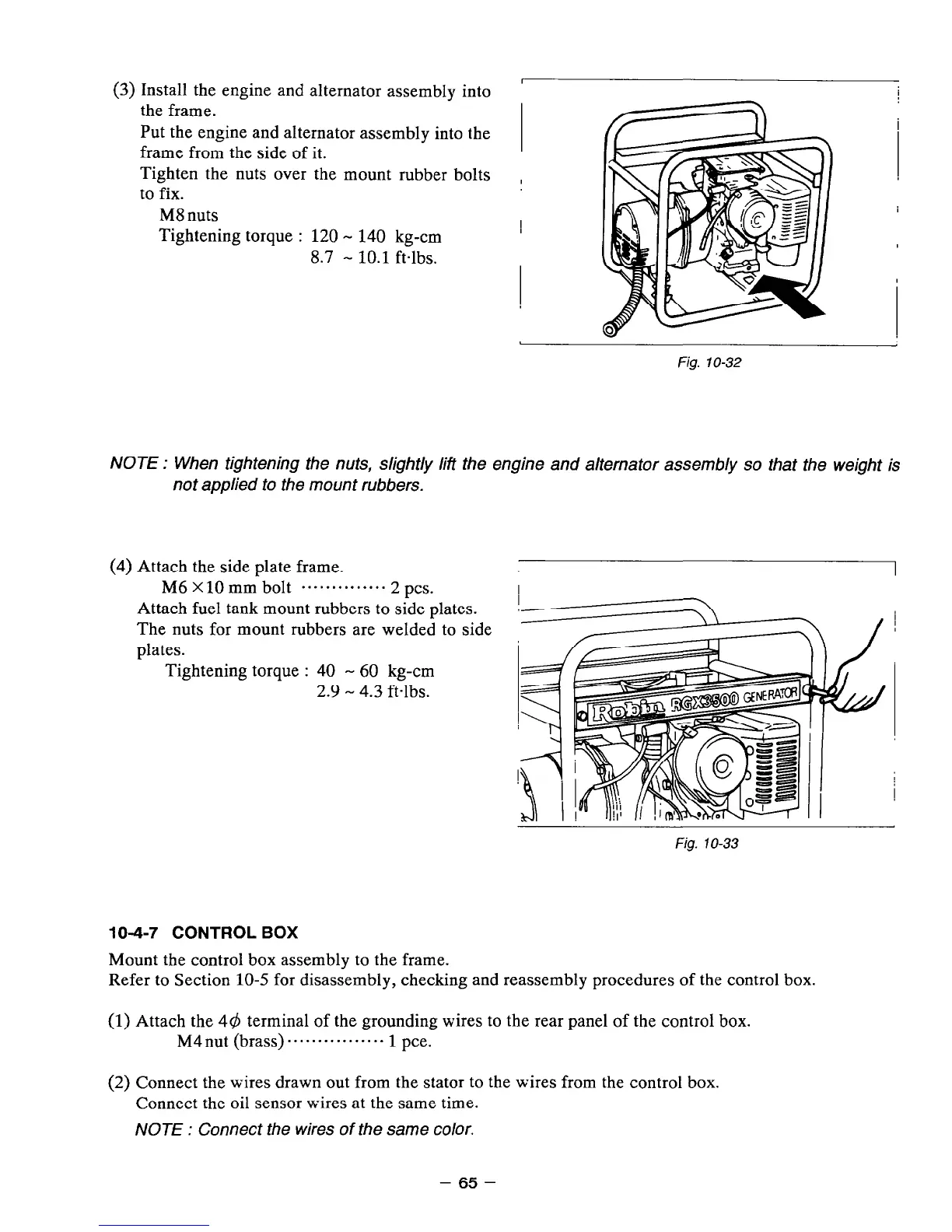

(3) Install the engine and alternator assembly into
I
I
the frame.
Put the engine and alternator assembly into the
frame from the side of it.
Tighten the nuts over the mount rubber bolts
,
to fix.
M8 nuts
I
Tightening torque : 120 - 140 kg-cm
8.7 - 10.1 ftlbs.
Fig. lo-32
NOTE : When tightening the nuts, slightly lift the engine and alternator assembly so that the weight is
not applied
to
the mount rubbers.
(4) Attach the side plate frame.
M6 X10 mm bolt ....*.**...... 2 PCS.
Attach fuel tank mount rubbers to side plates.
The nuts for mount rubbers are welded to side
plates.
Tightening torque : 40 - 60 kg-cm
2.9 - 4.3 ftlbs.
Fig. lo-33
104-7 CONTROL BOX
Mount the control box assembly to the frame.
Refer to Section 10-5 for disassembly, checking and reassembly procedures of the control box.
(1) Attach the 4@ terminal of the grounding wires to the rear panel of the control box.
M4nut (brass)......-......... 1 pee.
(2) Connect the wires drawn out from the stator to the wires from the control box.
Connect the oil sensor wires at the same time.
NOTE : Connect the wires of the same color.
- 65 -
