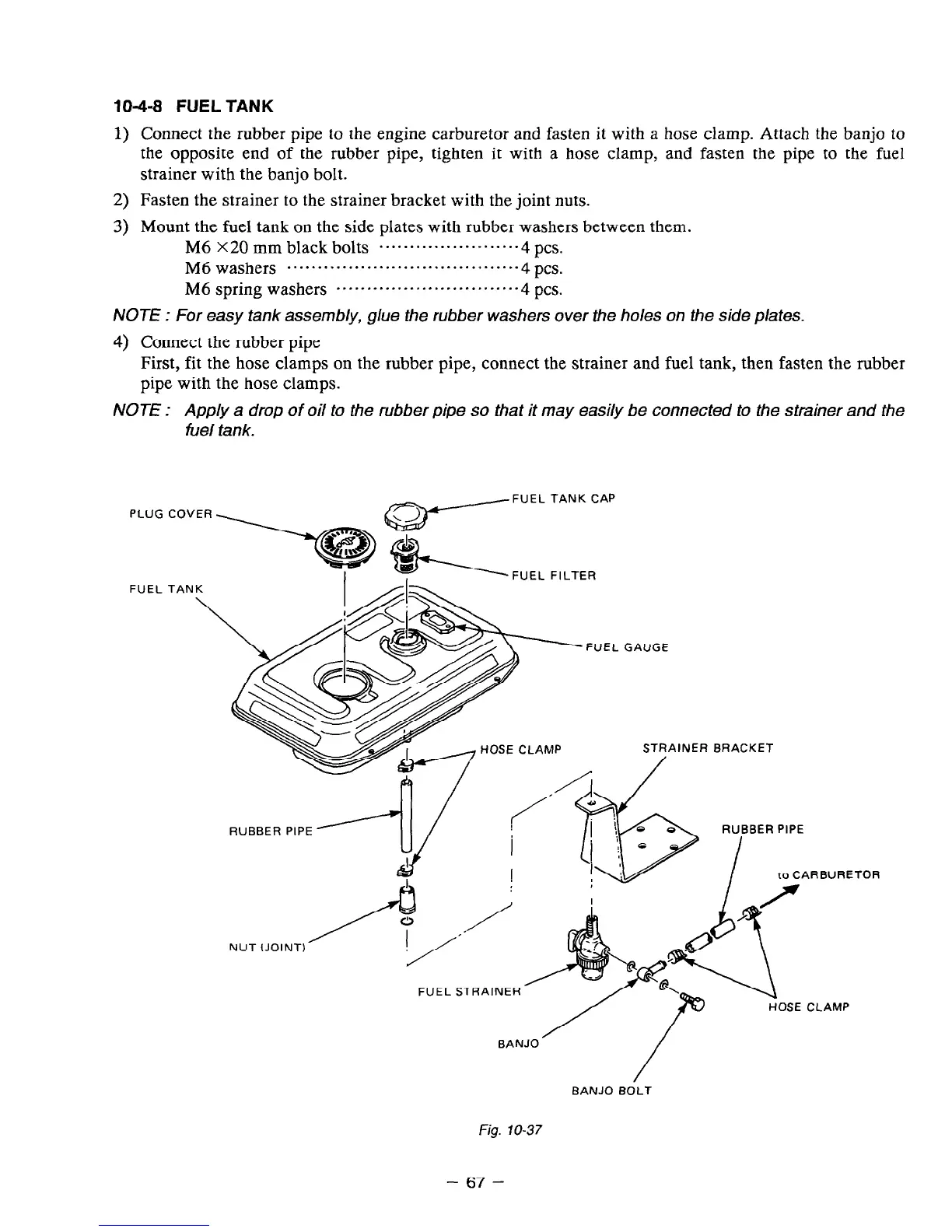

104-8 FUEL TANK
1) Connect the rubber pipe to the engine carburetor and fasten it with a hose clamp. Attach the banjo to
the opposite end of the rubber pipe, tighten it with a hose clamp, and fasten the pipe to the fuel
strainer with the banjo bolt.
2) Fasten the strainer to the strainer bracket with the joint nuts.
3) Mount the fuel tank on the side plates with rubber washers between them.
M6 X20 mm black bolts
. . . . . . . . . . . . . . ..-...... 4 pcs.
M6 washers
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . + . . . . . . 4pcs.
M6 spring washers
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 pcs.
NOTE : For easy tank assembly, glue the rubber washers over the holes on the side plates.
4) Connect the rubber pipe
First, fit the hose clamps on the rubber pipe, connect the strainer and fuel tank, then fasten the rubber
pipe with the hose clamps.
NOTE : Apply a drop of oil to the rubber pipe so that it may easily be connected to the strainer and the
fuel tank.
-a--FUEL TANK CAP
L FUEL FILTER
FUEL GAUGE
FUEL TANK
NUT (JOINT)
- HOSE CLAMP
STRAINER BRACKET
/
FUEL STRAINER
BANJO
RUBBER PIPE
BANJO BOLT
Fig. lo-37
- 67 -
